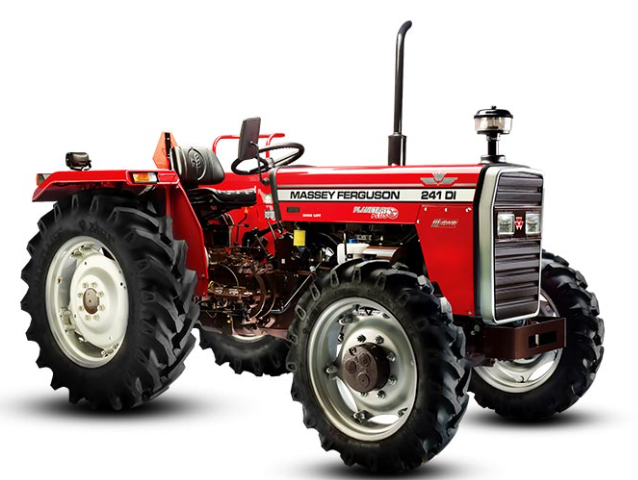

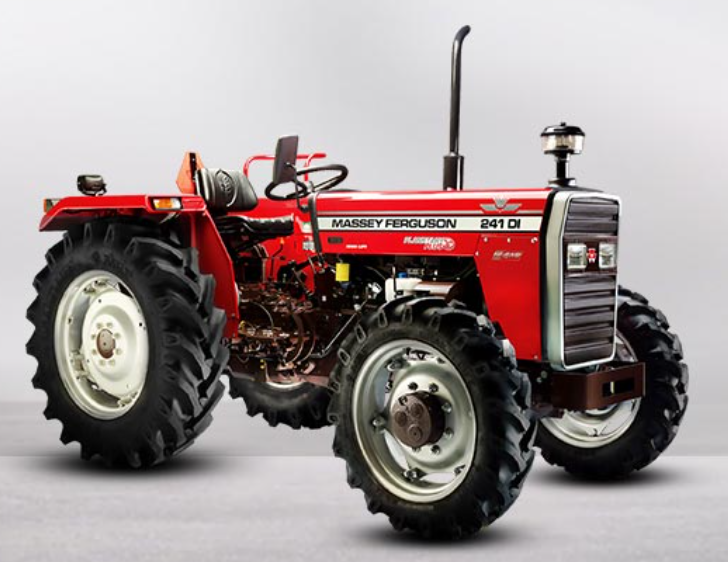

Massey Ferguson 241 DI 4WD – 4WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 241 DI 4WD |
|
Overall Length |
3,369 mm |
|
Overall Width |
1,698 mm |
|
Overall Height |
2,244 mm |
|
Wheelbase |
1,970 mm |
|
Total Weight |
2,260 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
|
Fuel Tank Capacity |
47 L |
|
Max Speed |
29.5 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SIMPSONS S325.1-F2 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2,500 cc (2.50L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
30.88 kW (42 hp) |
|
Clutch Type |
Dual |
|
Transmission Type |
Partial constant mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Optional Number of Speeds |
10 Forward + 2 Reverse |
|
Forward Speed |
29.5 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
21.08 cm x 60.96 cm (8.30 x 24) front, 34.54 cm x 71.12 cm (13.6 x 28) rear |
|
Optional Tyre Dimensions |
Higlug tyres |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, six-splined shaft |
|
PTO Speed |
540 RPM @ 1500 ERPM |
|
Optional PTO Speed |
540 RPM @ 1906 ERPM |
|
Hydraulics Lifting Capacity |
1,700 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, links fitted with CAT-2 (Combi Ball) |
|
Electricals |
12 V 80 Ah Battery, 12 V 36 A Alternator |
|
Features |
G4.1 4WD axle, front weight platform, adjustable seat, push type pedals |
