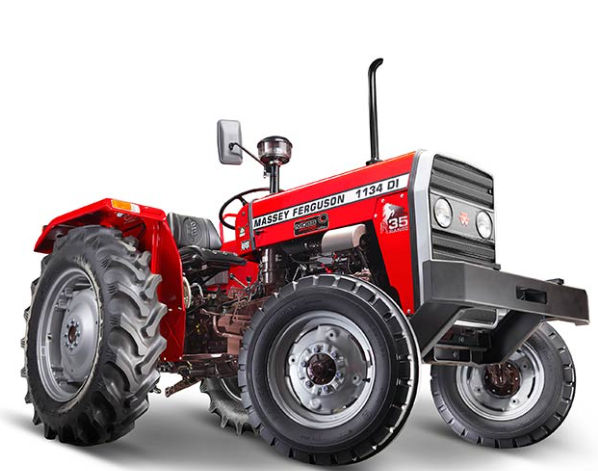

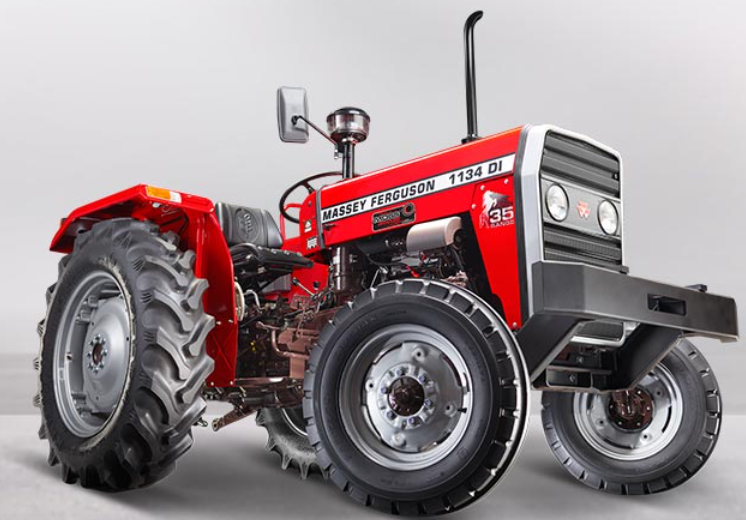

Massey Ferguson 1134 DI – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 1134 DI |
|
Overall Length |
3,320 mm |
|
Overall Width |
1,675 mm |
|
Overall Height |
2,185 mm |
|
Wheelbase |
1,935 mm |
|
Total Weight |
1,720 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
47 L |
|
Max Speed |
29.20 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SIMPSONS TIII A S 334 |
|
Cylinders |
3 |
|
Cubic Capacity |
2,270 cc (2.27L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
25.74 kW (35 hp) |
|
Clutch Type |
Dual |
|
Transmission Type |
Sliding mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Forward Speed |
29.20 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
MDSSTM technology with FRICPADTM |
|
Steering Type |
Manual - Recirculating worm, ball and nut type |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
15.24 cm x 40.64 cm (6.00 x 16) front, 31.49 cm x 71.12 cm (12.4 x 28) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, Six-splined shaft |
|
PTO Speed |
540 RPM @ 1500 ERPM |
|
Hydraulics Lifting Capacity |
1,100 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, links fitted with CAT-1 (Combi Ball) |
|
Electricals |
12V 75 Ah Battery, 12 V 36 A Alternator |
|
Features |
Front bumper, rear flat face with hitch rails and oil pipe kit, transport lock, digital cluster |
