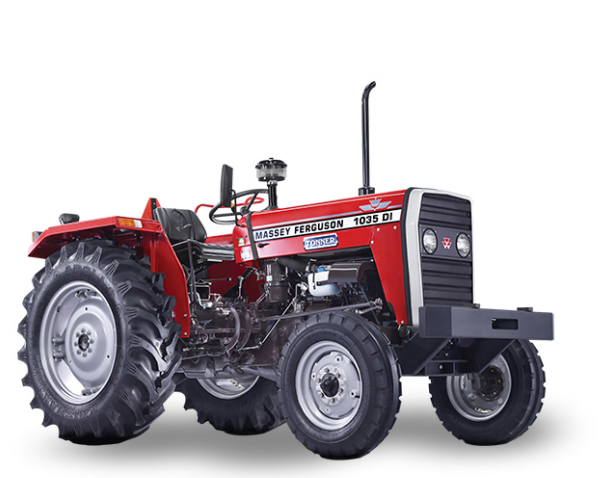

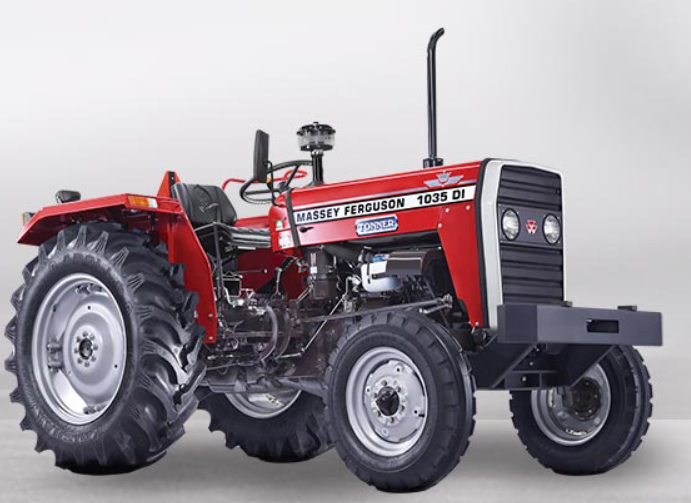

Massey Ferguson 1035 DI Tonner – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 1035 DI Tonner |
|
Overall Length |
3,340 mm |
|
Overall Width |
1,650 mm |
|
Overall Height |
2,200 mm |
|
Wheelbase |
1,935 mm |
|
Total Weight |
1,820 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
55 L |
|
Max Speed |
30.4 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SIMPSONS S337 T III A |
|
Cylinders |
3 |
|
Cubic Capacity |
2,400 cc (2.40L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
29.41 kW (40 hp) |
|
Clutch Type |
Dual |
|
Transmission Type |
Partial constant mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Forward Speed |
30.4 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Dry disc brakes (Dura Brakes) / Maxx OIB |
|
Steering Type |
Manual steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
15.24 cm x 40.64 cm (6.00 x 16) front, 34.54 cm x 71.12 cm (13.6 x 28) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, Six-splined shaft |
|
PTO Speed |
540 RPM @ 1500 ERPM |
|
Hydraulics Lifting Capacity |
1,100 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, links fitted with CAT-1 (Combi Ball) |
|
Electricals |
12 V 75 Ah Battery, 12 V 36 A Alternator |
|
Features |
Front bumper, bigger fuel tank, rear flat face with hitch rails, elevated hood |
