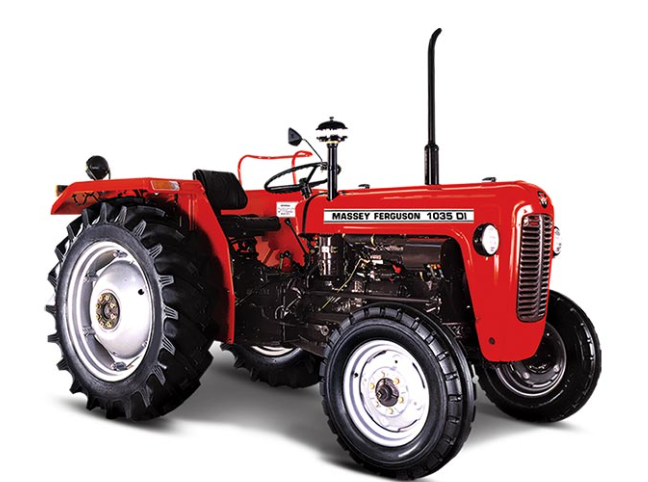

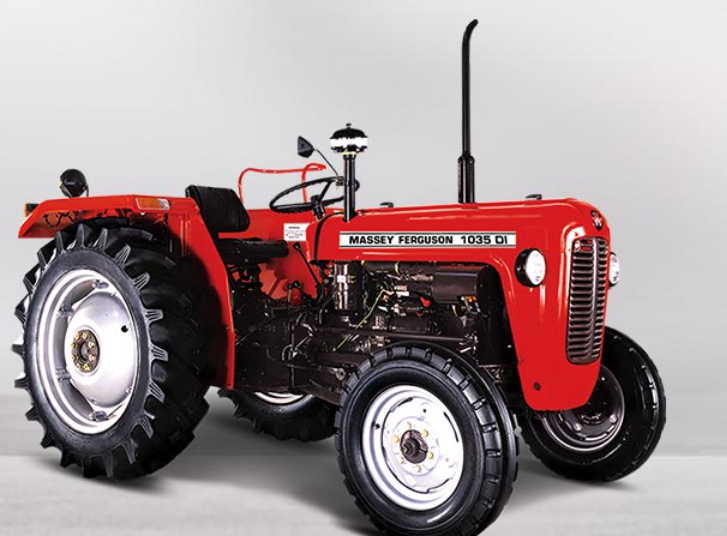

Massey Ferguson 1035 DI – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 1035 DI |
|
Vehicle Category |
2WD Tractor |
|
Overall Length |
3120 mm |
|
Overall Width |
1675 mm |
|
Overall Height |
2185 mm |
|
Wheelbase |
1830 mm |
|
Total Weight |
1713 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
47 L |
|
Max Speed |
23.8 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
SIMPSONS S324 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2400 cc (2.40L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Single |
|
Transmission Type |
Sliding mesh |
|
Number of Speeds |
6 Forward + 2 Reverse (Option: 8 Forward + 2 Reverse) |
|
Power Range |
26.47 kW (36 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Dry disc brakes (Dura Brakes) |
|
Steering Type |
Manual steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
6.00 x 16 (15.24 cm x 40.64 cm) Front, 12.4 x 28 (31.49 cm x 71.12 cm) Rear (Option: 13.6 x 28 (34.54 cm x 71.12 cm) Rear) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live, Single-speed PTO |
|
PTO Speed |
540 RPM @ 1650 ERPM |
|
Hydraulics Lifting Capacity |
1100 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, Links fitted with CAT-1 (Combi Ball) |
|
Electricals |
12 V 75 Ah Battery, 12 V 36 A Alternator |
|
Optional Accessories |
Adjustable seat, raised platform |
