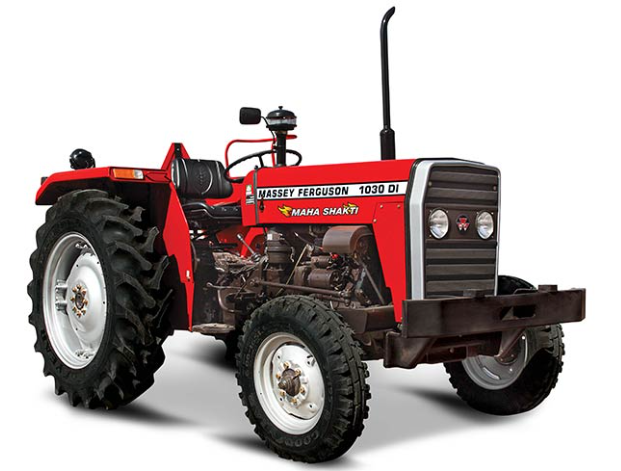

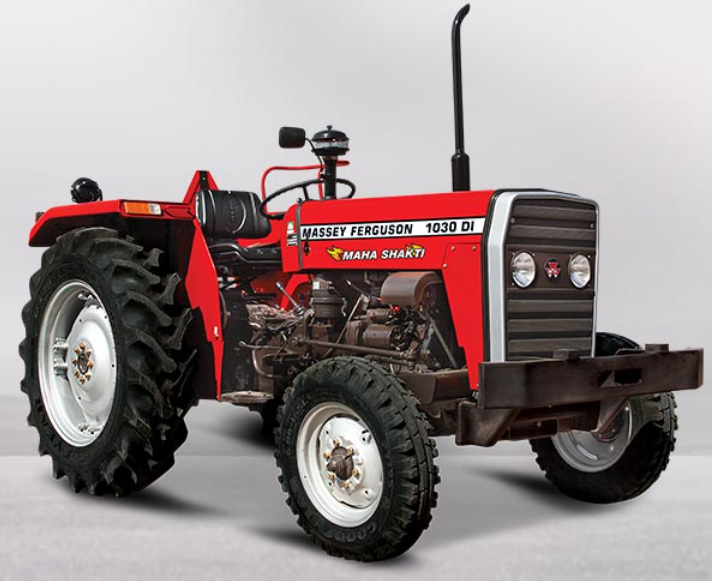

Massey Ferguson 1030 DI Mahashakti – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 1030 DI Mahashakti |
|
Vehicle Category |
2WD Tractor |
|
Overall Length |
3320 mm |
|
Overall Width |
1675 mm |
|
Overall Height |
2185 mm |
|
Wheelbase |
1835 mm |
|
Total Weight |
1660 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
47 L |
|
Max Speed |
29.37 km/h |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
SIMPSONS S318.1 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2270 cc (2.27L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Single Clutch |
|
Transmission Type |
Sliding mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Power Range |
24.62 kW (35 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Dura brakes |
|
Steering Type |
Manual Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
15.24 cm x 40.64 cm (6x16) Front, 31.49 cm x 71.12 cm (12.4x28) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Single-speed PTO |
|
PTO Speed |
540 RPM @ 1650 ERPM |
|
Hydraulics Lifting Capacity |
1300 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, Links fitted with CAT-1 (Combi Ball) |
|
Electricals |
12 V 75 Ah Battery, 12 V 36 A Alternator |
|
Accessories |
Front bumper |
