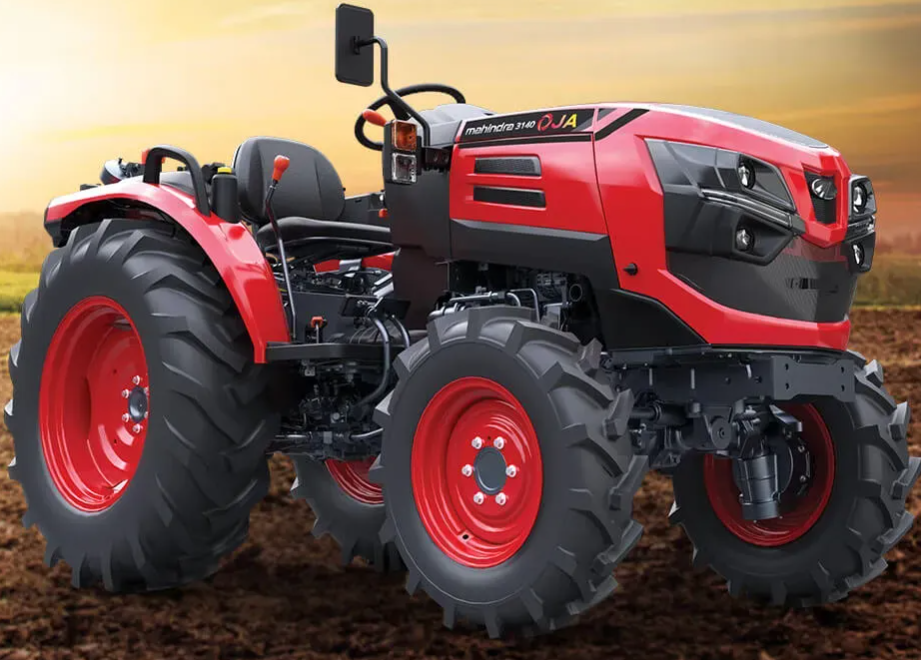

Mahindra OJA 3140 – 4WD Agricultural Tractor by Mahindra
Specifications
|
Specification |
Details |
|
Tractor Model |
Mahindra OJA 3140 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Rated RPM |
2500 r/min |
|
Clutch Type |
Single |
|
Transmission Type |
Constant mesh with synchro shuttle |
|
Drive Type |
4WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Power Range |
26.5 to 37.3 kW (36 to 50 HP) |
|
Maximum Torque |
133 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
314.96 mm x 609.6 mm (12.4 in x 24 in) |
Components & Features
|
Specification |
Details |
|
PTO RPM |
540/750 |
|
Hydraulics Lifting Capacity |
950 kg |
|
Three-point Linkage and Controls |
Draft, position and response control |
|
Smooth-Constant-Mesh-Transmission |
Constant mesh with synchro shuttle |
|
F/R Shuttle |
12 Forward + 12 Reverse |
|
ePTO |
Electric Wet PTO clutch |
|
Auto PTO (on/off) |
Yes |
|
Auto Implement Lift |
Electronic depth & draft control hydraulics |
|
Auto One Side Brake |
Yes |
|
Creeper |
0.3 km/h |
|
GPS Track Live Location |
Yes |
|
Diesel Monitoring |
Fuel gauge sensors |
|
Fender Switch to Lift Implements |
Yes |
|
EQL |
Electronic quick lifting |
|
Service Interval |
250 hours |
