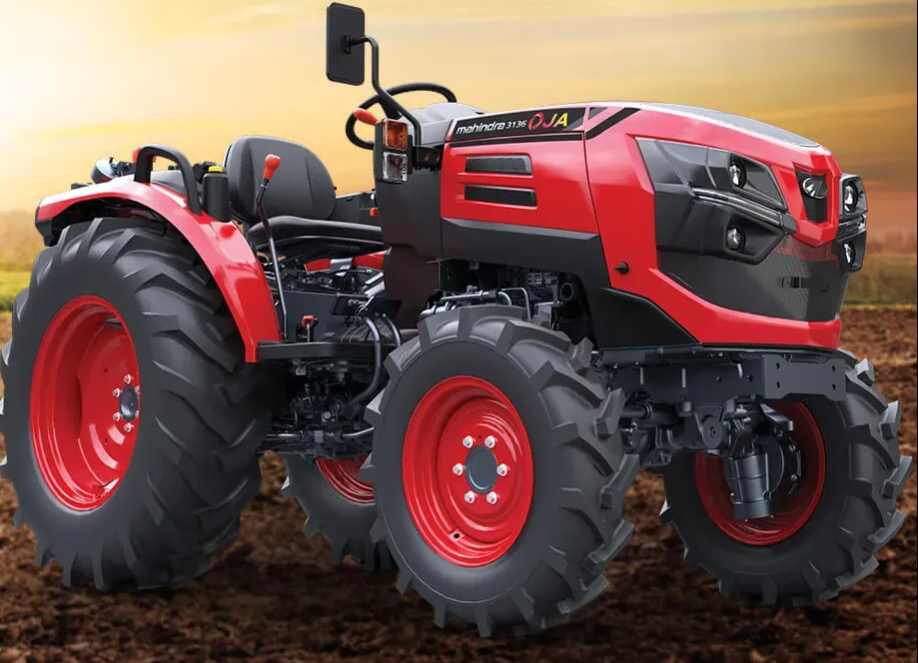

Mahindra OJA 3136 – 4WD Agricultural Tractor by Mahindra
Specifications
|
Specification |
Details |
|
Model |
Mahindra OJA 3136 |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3DI |
|
Cylinders |
3 |
|
Power Range |
26.5 to 37.3 kW (36 to 50 hp) |
|
Maximum Torque |
121 Nm |
|
Rated RPM |
2500 r/min |
|
Drive |
4WD |
|
Clutch Type |
Single |
|
Transmission Type |
Constant Mesh with Synchro Shuttle |
|
Number of Gears |
12 Forward + 12 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes (OIB) |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
314.96 mm x 609.6 mm (12.4 in x 24 in) |
Components & Features
|
Feature |
Details |
|
PTO Type |
Electric Wet PTO Clutch (ePTO) |
|
PTO RPM |
540/750 |
|
Hydraulics Lifting Capacity |
950 kg |
|
Service Interval |
400 hours |
|
Creeper Mode |
Yes (0.3 km/h) |
|
GPS Tracking |
GPS Track Live Location with Geofencing |
|
Fuel Monitoring |
Diesel Monitoring with Fuel Gauge Sensors |
|
Implement Lift System |
Auto Implement Lift with Electronic Depth & Draft Control |
|
PTO Control |
Auto PTO (On/Off) |
|
Quick Lift System |
Electronic Quick Lift (EQL) |
|
Fender Switch |
Fender Switch to Lift Implements |
|
Brake Feature |
Auto One Side Brake |
