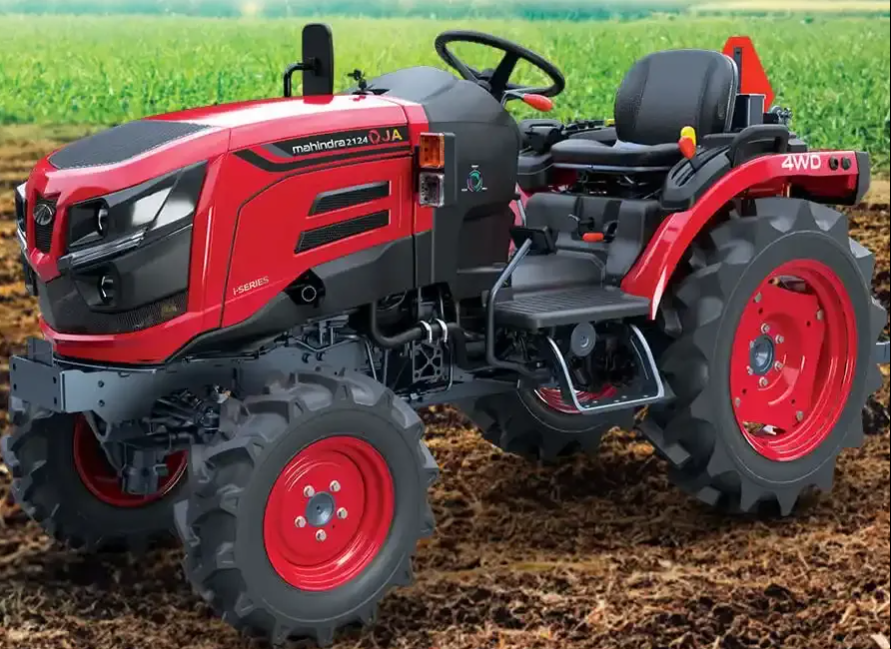

Mahindra OJA 2124 – 4WD Agricultural Tractor by Mahindra
Specifications
|
Specification |
Details |
|
Tractor Model |
Mahindra OJA 2124 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Rated RPM |
2400 r/min |
|
Clutch Type |
Single |
|
Transmission Type |
Constant mesh with synchro shuttle |
|
Drive Type |
4WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Power Range |
15.7 to 25.7 kW (21 to 35 HP) |
|
Maximum Torque |
83.3 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
210.82 mm x 508 mm (8.3 in x 20 in) |
Components & Features
|
Specification |
Details |
|
PTO RPM |
540/780 |
|
Hydraulics Lifting Capacity |
950 kg |
|
Three-point Linkage and Controls |
Draft, position and response control |
|
Smooth-Constant-Mesh-Transmission |
Constant mesh with synchro shuttle |
|
F/R Shuttle |
12 Forward + 12 Reverse |
|
ePTO |
Electric Wet PTO clutch |
|
Tilt & Telescopic Steering |
Yes |
|
Powerful 3DI Engine |
3-cylinder |
|
Auto Start |
Keyless push button |
|
Creeper |
0.3 km/h |
|
GPS Track Live Location |
Yes |
|
Diesel Monitoring |
Fuel gauge sensors |
|
Service Interval |
250 hours |
