Mahindra NOVO 605 DI PS V1 – 2WD/4WD Agricultural Tractor by Mahindra
Specifications
|
Specification |
Details |
|
Model |
Mahindra NOVO 605 DI PS V1 |
|
Fuel Type |
Diesel |
|
Application |
2WD/4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Cylinders |
4 |
|
Power Range |
26.5 to 37.3 kW (36 to 50 hp) |
|
Maximum Torque |
214 Nm |
|
Rated RPM |
2100 r/min |
|
Drive |
2WD / 4WD |
|
Clutch Type |
Single Lever Independent PTO (SLIPTO) |
|
Transmission Type |
Partial Synchromesh |
|
Number of Gears |
15 Forward + 3 Reverse / 15 Forward + 15 Reverse (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes (OIB) |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
429.26 mm x 711.2 mm (16.9 in x 28 in) / 378.46 mm x 711.2 mm (14.9 in x 28 in) |
Components & Features
|
Feature |
Details |
|
PTO Type |
Single Lever Independent PTO (SLIPTO) |
|
PTO RPM |
540 / 540E / Reverse PTO |
|
Hydraulics Lifting Capacity |
2700 kg |
|
Service Interval |
100 hours |
|
Three-point Linkage and Controls |
Fast-response Hydraulic System |
|
Operator Seating |
High Operator Seating with Heat Channelization |
|

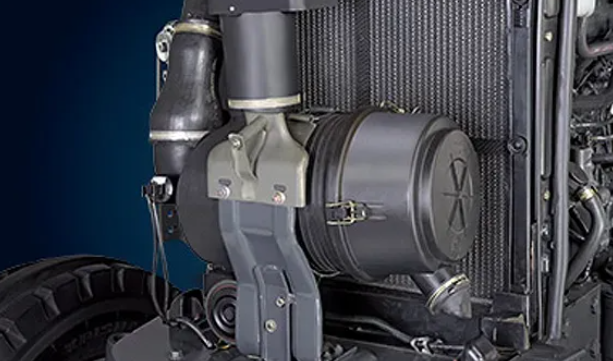

Air Cleaner |
Large Air Cleaner |
|
Fuel Efficiency Feature |
Economy PTO Mode |
|
Compatible Implements |
Cultivator, M B Plough (Manual/Hydraulics), Rotary Tiller, Gyrovator, Harrow, Tipping Trailer, Full Cage Wheel, Half Cage Wheel, Ridger, Planter, Leveler, Thresher, Post Hole Digger, Baler, Seed Drill, Loader |
