Mahindra NOVO 605 DI 4WD V1 – 4WD Agricultural Tractor by Mahindra
Specifications
|
Specification |
Details |
|
Tractor Model |
Mahindra NOVO 605 DI 4WD V1 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
4 |
|
Rated RPM |
2100 r/min |
|
Clutch Type |
SLIPTO |
|
Transmission Type |
Partial Syncromesh |
|
Drive Type |
2WD/4WD |
|
Number of Gears |
15 Forward + 15 Reverse |
|
Power Range |
Above 37.3 kW (Above 51 HP) |
|
Maximum Torque |
228 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
429.26 mm x 711.2 mm (16.9 in x 28 in) |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
2700 kg |
|
PTO RPM |
540 / 540 E, 540 / Rev |
|
Service Interval |
100 |
|
Three-point Linkage and Controls |
Draft, position and response control |
|
Shift and It Will Make Anything Happen |
Synchro shuttle with 15 F + 15 R gears, speed option 1.69 km/h min & 33.23 km/h max, high-medium-low transmission |
|
Every Gear Shift is a Smooth One |
Synchromesh transmission with guide plate |
|
Level of Precision? Unmatched |
Fast-response hydraulic system |
|
Stops Exactly When You Want It To |
Ball and ramp technology braking system, 3 brakes per side, 1252 cm2 braking surface area |
|
Clutch Failure? A Problem of the Past |
306 cm clutch |
|
Keep Cool No Matter What the Season |
High operator seating with heat-free environment |
|
An Economic PTO Mode to Save More Fuel |
Economy PTO mode |
|

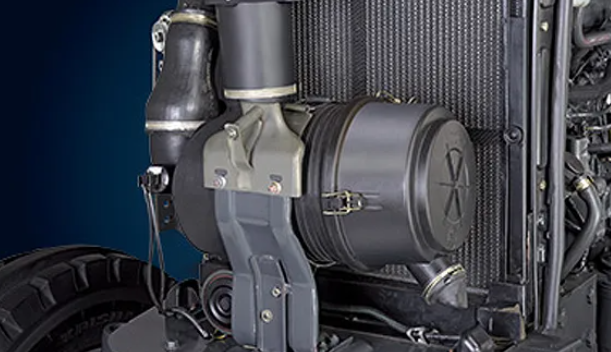

An Air Filter with Zero Choking |
Large air cleaner |
|
4WD |
Drop-down axle, centered drive line, front tyre 9.5 x 24 |
|
Implements that Can Fit |
Cultivator, M B Plough (Manual/Hydraulics), Rotary tiller, Gyrovator, Harrow, Tipping trailer, Full cage wheel, Half cage wheel, Ridger, Planter, Leveler, Thresher, Post Hole Digger, Baler, Seed drill, Loader |
