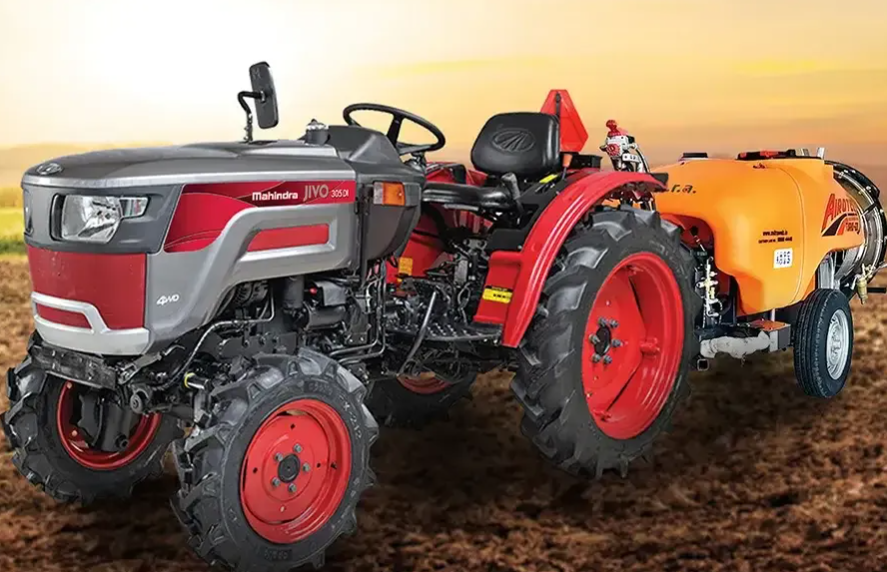

Mahindra JIVO 305 DI 4WD VINEYARD – 4WD Agricultural Tractor by Mahindra
Specifications
|
Specification |
Details |
|
Tractor Model |
Mahindra JIVO 305 DI 4WD VINEYARD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
2 |
|
Rated RPM |
2500 r/min |
|
Clutch Type |
Single |
|
Transmission Type |
Sliding Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
8 Forward + 4 Reverse |
|
Power Range |
15.7 to 25.7 kW (21 to 35 HP) |
|
Maximum Torque |
89 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
210.82 mm x 609.6 mm (8.3 in x 24 in) |
Components & Features
|
Specification |
Details |
|
PTO RPM |
540/750 |
|
Hydraulics Lifting Capacity |
750 kg |
|
Three-point Linkage and Controls |
Draft, position and response control |
|
Unmatched Power |
89 Nm torque |
|
Highest PTO Power |
18.3 kW (24.5 HP) |
|
Lifting Capacity |
750 kg with 4-wheel drive |
|
Ease of Turning and Manoeuvrability |
Short turning radius of 2.3 m |
|
Height Adjustable Seat |
Yes |
|
High Ground Clearance |
Yes |
|
Tractor Size |
Compact bonnet, steering column, and fender height |
|
5 Years Warranty* |
Yes |
|
Service Interval |
400 hours |
