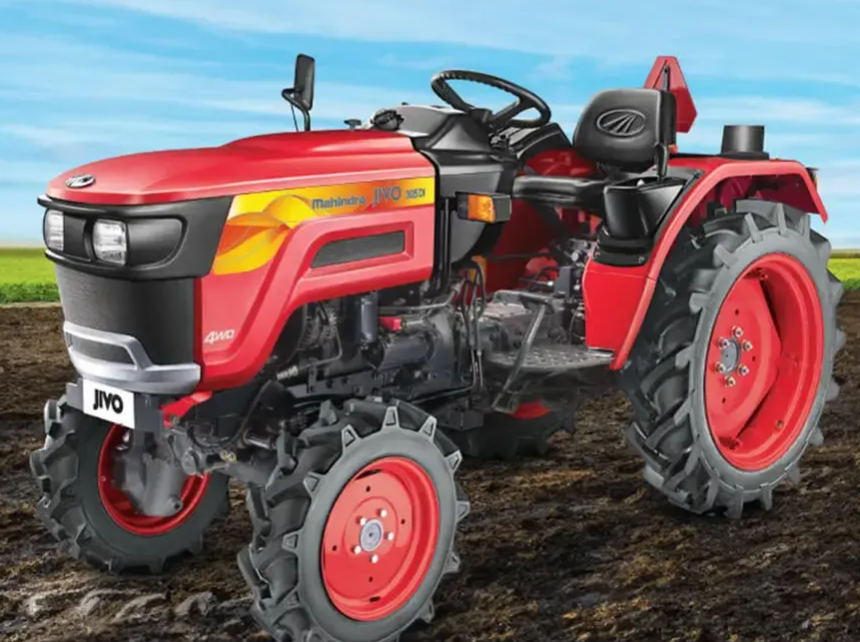

Mahindra JIVO 305 DI – 4WD Agricultural Tractor by Mahindra
Specifications
|
Specification |
Details |
|
Model |
Mahindra JIVO 305 DI |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
DI |
|
Cylinders |
2 |
|
Power Range |
15.7 to 25.7 kW (21 to 35 hp) |
|
Maximum Torque |
89 Nm |
|
Rated RPM |
2500 r/min |
|
Drive |
4WD |
|
Clutch Type |
Single |
|
Transmission Type |
Sliding Mesh |
|
Number of Gears |
8 Forward + 4 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes (OIB) |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
210.82 mm x 609.6 mm (8.3 in x 24 in) |
Components & Features
|
Feature |
Details |
|
PTO Type |
2-Speed |
|
PTO RPM |
540/750 |
|
PTO Power |
18.3 kW (24.5 hp) |
|
Hydraulics Lifting Capacity |
750 kg |
|
Seat Feature |
Height Adjustable Seat |
|
Ground Clearance |
High Ground Clearance |
|
Design Feature |
Compact Bonnet, Steering Column, and Fender Height |
|
Turning Radius |
Short Turning Radius (2.3 m) |
|
Service Interval |
400 hours |
