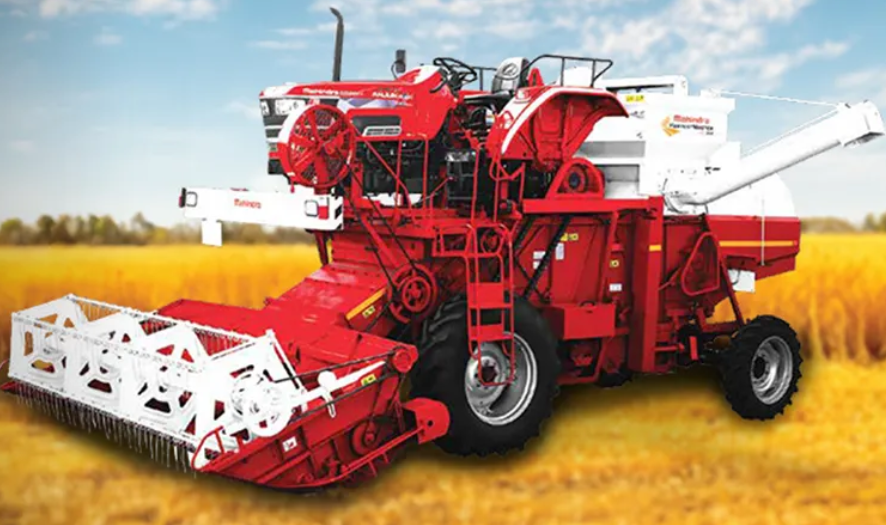

Mahindra HarvestMaster H12 2WD – Multi-Crop Combine Harvester
Specifications
|
Specification |
Details |
|
Model |
Mahindra HarvestMaster H12 2WD |
|
Vehicle Category |
Tractor-Mounted Combine Harvester |
|
Fuel Type |
Diesel (via host tractor) |
|
Application |
Multi-crop (e.g., paddy) |
Frame & Drivetrain
|
Specification |
Details |
|
Tractor Compatibility |
Mahindra Arjun Novo 605 DI-i |
|
Engine Power |
57 HP (42 kW) |
|
Drive Type |
2WD |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
16.9-28, 12 PR |
|
Rear Wheels |
7.5-16, 8 PR |
Components & Features
|
Specification |
Details |
|

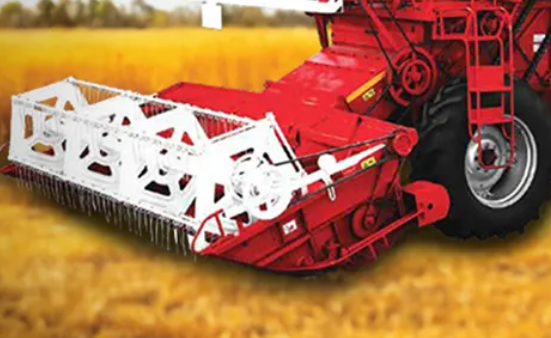

Cutter Bar Assembly |
Working width: 3580 mm; Cutting height: 30–1000 mm; Auger: 575 mm diameter, 3540 mm width; 49 knife blades, 24 knife guards, 80 mm knife stroke |
|
Reel Assembly |
885 mm diameter, speed range: 30–37 r/min at engine speed |
|
Feeder Table |
Comb & Chain type |
|
Thresher Mechanism |
Paddy thresher drum: 1120 mm width, 592 mm diameter, speed range: 600–800 r/min; Concave clearance: 12–30 mm (front), 16–40 mm (rear), adjustable via lever on RHS |
|
Cleaning Sieves |
2 upper sieves (1.204/0.705 m²), 1 lower sieve (1.156 m²) |
|
Straw Walker |
5 straw walkers, 4 steps, 3540 mm length, 210 mm width |
|
Grain Tank |
750 kg (paddy), 1.2 m³ |
|
Width |
2560 mm |
|
Track Width |
Front: 2090 mm; Rear: 1920 mm |
|
Length |
10930 mm (with trailer), 6630 mm (without trailer) |
|
Max Height |
3730 mm |
|
Weight |
6750 kg |
|
Ground Clearance |
422 mm |
|
Turning Diameter |
With brake: 7.8 m (LH) / 8.0 m (RH); Without brake: 13.6 m (LH) / 13.9 m (RH) |
