Mahindra Blazo X 35 M-Dura Tipper 2025 – Heavy-Duty Tipper

Images:

1

2

3

4

Specifications

Specification	Details
Engine	mPower 7.2L FuelSmart, 6-cylinder diesel, BS6
Power	280 HP (206 kW) @ 2200 rpm
Torque	1050 Nm @ 1200–1700 rpm
Transmission	9-speed manual, Eaton
Brakes	Full air S-cam, dual circuit, 10 bar with ABS
Suspension	Front: semi-elliptical leaf spring; rear: inverted leaf bogie or bell crank
Wheel Size	20-inch
Tyres	11x20 16PR, 11R20 16PR
Weight	GVW: 35000 kg, Payload: 22000 kg
Dimensions (LxWxH)	Body: 18/22 cum box body
Wheelbase	5330 mm or 5380 mm
Fuel Tank Capacity	260 litres
Mileage	2.5–3.5 kmpl (claimed)
Ground Clearance	250 mm
Price (Ex-Showroom, Delhi)	₹49.00–₹50.00 lakh(Year-2025)

Frame & Drivetrain

Specification	Details
Chassis	Ladder-type, 285 x 70 x 8.5 mm
Engine Type	6-cylinder, diesel, BS6 with FuelSmart
Clutch	395 mm diaphragm, organic type with wear indicator
Gearbox	9-speed manual, Eaton
Rear Axle	Solo banjo-type, single reduction

Suspension & Brakes

Specification	Details
Front Suspension	Parabolic leaf spring with shock absorber
Rear Suspension	Inverted leaf bogie or bell crank
Front Brake	Full air S-cam, 10 bar with ABS
Rear Brake	Full air S-cam, 10 bar with ABS
Steering	Hydraulic power assist, tilt and telescopic

Wheels & Tyres

Specification	Details
Wheels	Steel rims, 20-inch
Tyres	11x20 16PR, 11R20 16PR
Wheel Size	20-inch front, 20-inch rear

Components & Features

Specification	Details
Seat	3-way adjustable driver seat, D+1 configuration
Handlebar	Hydraulic power assist, tilt and telescopic
Instrument Cluster	Analogue with digital driver information system
Features	iMAXX telematics, FuelSmart switches, day cabin, optional AC, 4-point suspended cabin
Safety Features	ABS, driver seatbelt, parking brake, anti-roll bar

Available Colors

Specification	Details
Colors	White, Blue

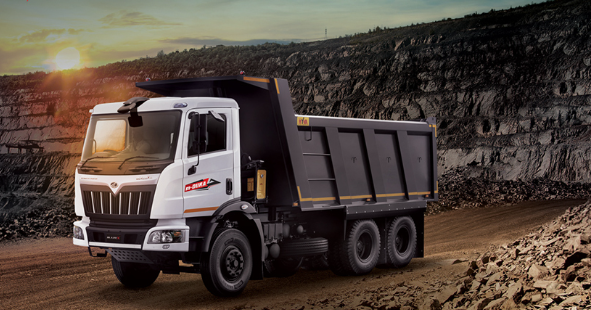

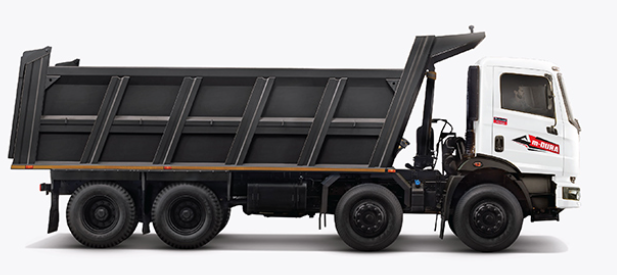

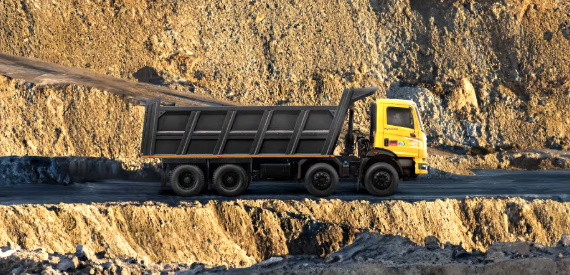

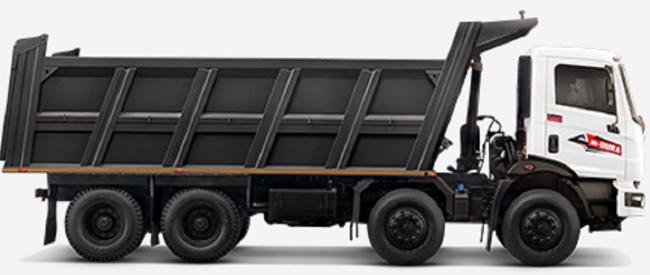

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
