Tata Magic Mantra 10 Seater – Tata Motors School and Tourist Van
Specifications
|
Specification |
Details |
|
Fuel Type |
CNG+Petrol |
|
Seating Capacity |
D+9 |
|
KMPL, ARAI |
27.2 |
|
Speed, kmph |
65 |
|
Configuration |
D+ 1/3/2/3 |
|
Wheelbase, mm |
2100 |
|
GVW, kg |
1875 |
|
Kerb Weight, kg |
1125 |
|
Payload, kg |
750 |
|
Dimensions, mm |
3790x1500x1890 |
|
TCD, mm |
8600 |
|
Ground Clearance, mm |
150 |
|
Gradeability, % |
Petrol 29.4% / CNG 26% |
|

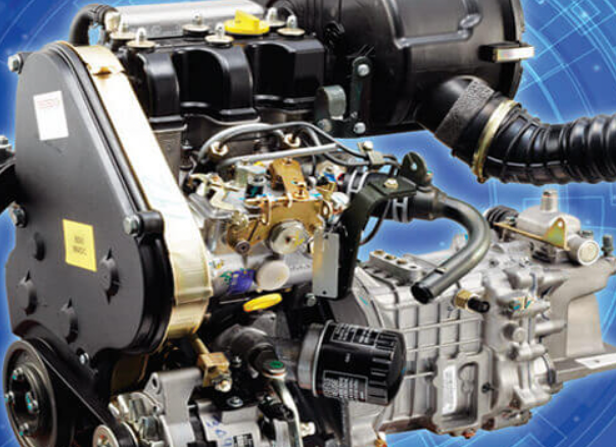

Engine Type |
TATA 275 MPFI03 WC |
|
# Cylinders |
2 |
|
Capacity, CC |
694 |
|
Power, kW |
18.4 |
|
Power, HP |
25 |
|
Torque |
49 Nm @ 2000-3000 |
|
Clutch Type |
SP Dry friction |
|
Clutch, mm |
170 |
|
Brake Type |
HB |
|
Brakes |
Disc / Drum |
|
Gearbox & Steering Type |
GBS 65/ 6.31 |
|
Transmission Type |
Synchromesh |
|
Speed |
5+R |
|
RAR |
5.143 |
|
Steering Type |
Manual |
|
Steering Size |
380 |
|
Suspension, Front |
SE Leaf spring |
|
Suspension, Rear |
SE Leaf spring |
|
Shock Absorber |
DA Hyd Telesp |
|
Tyre |
155 R 13 LT |
|
Fuel Tank, L |
60L (10.6kg CNG) + 5L Petrol |
|
Battery |
12V / 35Ah |
|
Warranty |
2 Years / 72K Kms |
|
Application |
School vans |
Components & Features
|
Specification |
Details |
|
Transmission Feature |

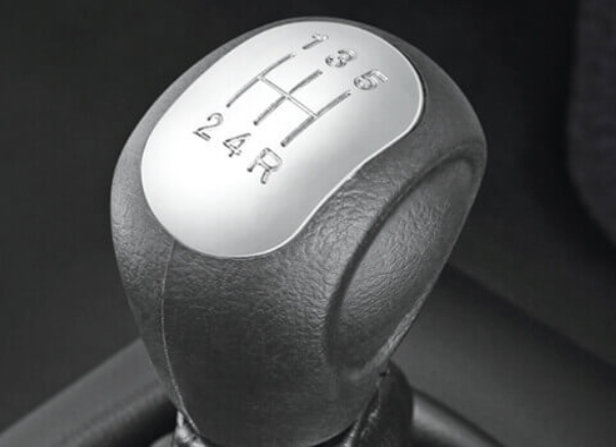

5-Speed Gearbox |
|
Tyre Feature |
R-13 Radial Tyres |
|
Seating Feature |
Head Rest |
|
Seating Feature |
Adjust Headrest |
|
Seating Feature |
Driver seat sliding |
|
Comfort Feature |
HVAC |
|
Instrument Feature |
Digital Cluster |
|
Convenience Feature |
Charger |
|
Instrument Feature |
Multi trip meter |
|
Instrument Feature |
Digii Speedmeter |
|
Efficiency Feature |
ECO mode |
|
Lighting Feature |
Headlamp levelling |
|
Exterior Feature |
Windshield Tinted glass |
|
Comfort Feature |
Sunvisor |
|
Security Feature |
Globe box lock |
|
Safety Feature |
Side grab handle |
|
Seating Feature |
Armrest for Pass |
|
Interior Feature |
Molded Floor Carpet |
|
Interior Feature |
Dual Interior Color |
|
Storage Feature |
Book pocket |
|
Maintenance Feature |
Service alert |
|
Comfort Feature |
Fan |
|
Entertainment Feature |
Music system |
|
Comfort Feature |
Sunvisor - Driver side |
|
Exterior Feature |

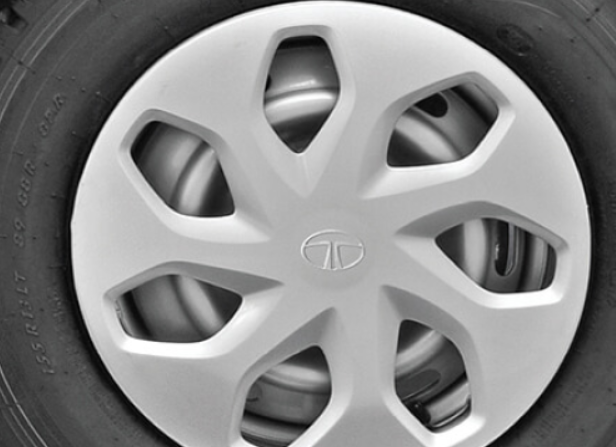

Wheel Cover |
|
Lighting Feature |
Head Lamp |
|
Exterior Feature |
Body color Bumper |
|
Exterior Feature |
Bumper |
|
Security Feature |
Immobilizer |
|
Safety Feature |
Child Lock |
|
Safety Feature |
Seat Belts - 3 pt ELR |
|
Safety Feature |
ABS with EBD |
|
Safety Feature |
Airbag |
|
Telematics Feature |
Telematics |
|
Safety Feature |
Seat belt reminder |
|
Exterior Feature |
Split grill with matte black finish for improved airflow and radiator performance |
|
Transmission Feature |
Gear shift advisor |
|
Stability Feature |
Front anti-roll bar for stability during turns |
|
Body Design Feature |
Superior body design in collaboration with ACGL, prioritizing structural integrity and aesthetics |
|
Service Interval Feature |
40,000 km |
|
Safety Feature |
First-aid kit |
