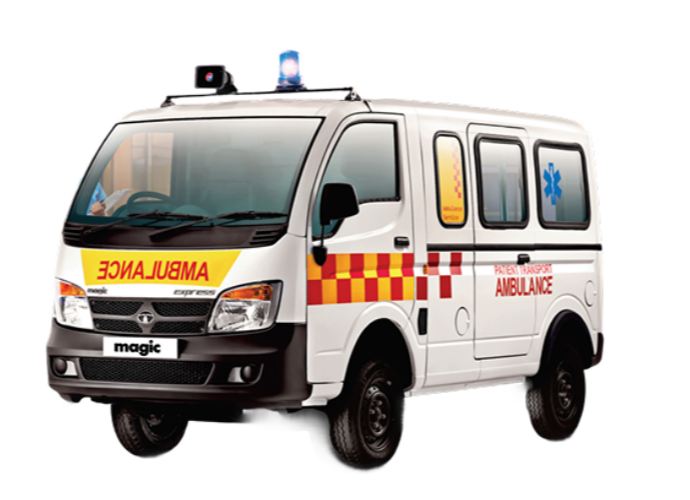

Tata Magic Ambulance – Tata Motors Ambulance Van
Specifications
|
Specification |
Details |
|
GVW |
1,765 kg |
|
Kerb Weight |
1,240 kg - 1,040 kg |
|
Overall Length |
3,790 mm |
|
Overall Width |
1,500 mm |
|
Overall Height |
1,890 mm |
|
Seating Capacity |
6+P |
|
Wheelbase |
2,100 mm |
|
Min Turning Radius |
4.3 m |
|
Engine Type |
Petrol |
|
Engine Displacement |
694 cc |
|
Max. Output |
22.1 kW @ 4,000 r/min |
|
Max. Torque |
55 Nm @ 2,500 to 3,500 r/min |
|
Transmission, Speed |
5+1 |
|
Brake, Front / Rear |
Disc / Drum |
|
Suspension, Front / Rear |
Parabolic Leaf spring |
|
Fuel Tank Capacity |
26 L |
|
Tyre Size |
155R13 |
|
Fuel Type |
Petrol |
|
Application |
Ambulance vans |
Components & Features
|
Specification |
Details |
|
Interior Feature |
Antibacterial Floor Carpet |
|
Interior Feature |
Patient Compartment Roof Paneling |
|
Interior Feature |
VFC Side panels on Door and Side Walls |
|
Medical Feature |
Oxygen Cylinder Mounting |
|
Safety Feature |
Fire Extinguisher |
|
Emergency Feature |
Siren And Revolving Lamp |
|
Communication Feature |
PA System with Mic |
|
Lighting Feature |
Lamp in Patient Compartment |
|
Medical Feature |
Auto Loading Stretcher |
|
Seating Feature |
Individual Doctor Seat with Integrated Head Rest |
|
Seating Feature |
3 - Seater Attendant Seats |
|
Medical Feature |
Medical Cabinet Box |
|
Access Feature |
Stay Rod for Tail gate |
|
Access Feature |
Tail Gate Footstep |
|
Medical Feature |
Auto Loading Stretcher-1 |
|
Medical Feature |
IV Hook Provision |
|
Lighting Feature |
LED Roof Light |
|
Safety Feature |
Flammability Resistant Interiors |
|
Security Feature |
Lockable Fuel Filler Cap |
|
Storage Feature |
Glove Box |
|
Efficiency Feature |
ECO And Power Switch for Better Mileage |
|
Instrument Feature |
Digital Instrument Cluster |
|
Tyre Feature |
Low Rolling Resistance Tubeless Tyres |
|
Convenience Feature |
USB Charger |
|
Body Design Feature |
Superior body design in collaboration with ACGL, prioritizing structural integrity and aesthetics |
|
Service Interval Feature |
40,000 km |
