Specification

Details

Bus Model

LPO 1316/57

Wheelbase, mm

5700

Engine

3.3 LTR

Engine Power, kW@RPM

117 kW @ 2600 RPM

Engine Torque, Nm@RPM

475 Nm @ 1600-2000 RPM

Fuel Type

Diesel

Clutch Diameter, mm

330

Gearbox

G 550 5 Speed Cable Shift

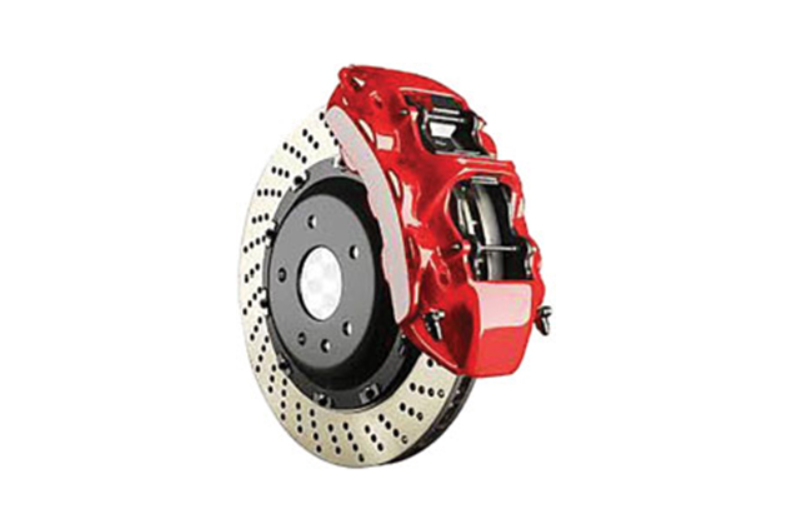

Brakes

Air Brakes

Suspension

Dual Stage Parabolic Suspension

Steering

Power-Steering, Tilt - Telescope

Battery

12 V, 120 Ah

Alternator

120 A

Tyres

9R20 / 10R20

Fuel Tank Capacity, Litres

160 Plastic

DEF Tank Capacity, Litres

18

Max. GVW, kg

14000

Seating Capacity

SKL: 58 & 62, STD: 40 / 45 / 50 & 55

Length, mm

11220

Rear Overhang, mm

3420

Front Overhang, mm

2100

Overall Height, mm

3160

Max. Width, mm

2570

TCD, m

21

Ground Clearance, mm

240

AC / Non-AC Option

Both

Application

School Buses

Feature

Details

Feature: Warranty

4 Years/4 Lakhs kms Warranty; 3 Years/3 Lakhs kms Bus Body Warranty

Feature: Body Width Options

Multiple Body Width Option 2200 MM / 2340 MM

Feature: Engine

Fuel Efficient 3.3Ltr Engine with Balanced Power & Torque

Feature: Cooling

E Viscous Fan

Feature: Tyres

Low CRR Radial Tubeless & Tube Type Tyre

Feature: Telematics

4G Telematic Solution with FOTA

Feature: Steering

Modular Steering Wheel with Cruise Control

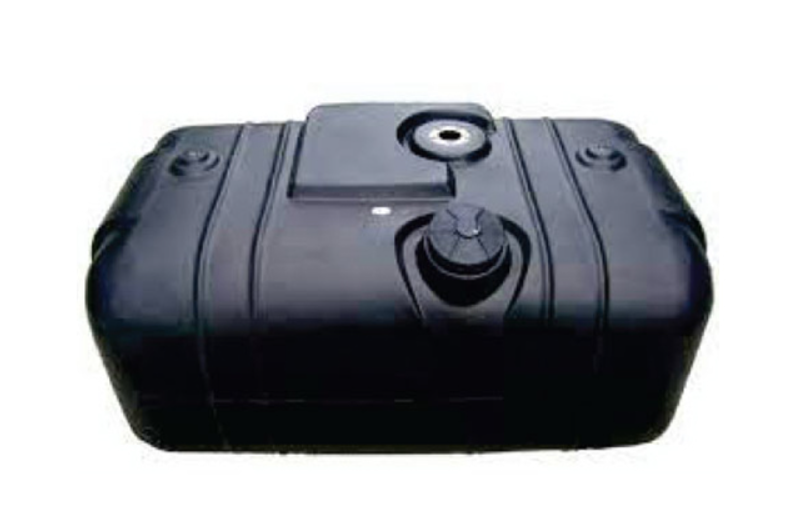

Feature: Fuel Tank

Plastic Fuel Tank with Fuel Monitoring System

Feature: Safety

Fire Detection and Alarm System

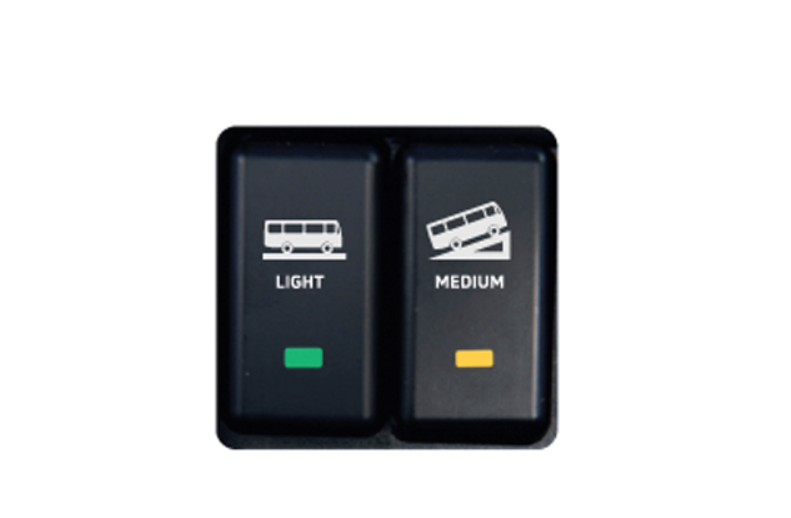

Feature: Fuel Efficiency

Multi Mode Fuel Economy Switch

Feature: Stability

Electronic Stability Control with Hill Start Assist*

Feature: Seating

Driver Suspended Seats

Feature: Gear Shift

Torque Based Gear Shift Advisor

Feature: Wheel Bearing

Unitised Wheel Bearing (THU)
