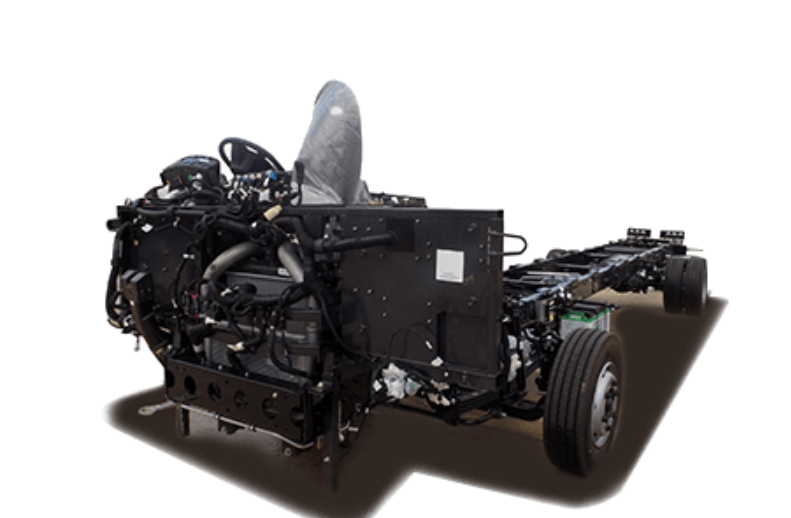

Tata LPO 1316 54 Diesel – Tata Motors School Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
LPO 1316/54 |
|
Wheelbase, mm |
5400 |
|
Engine |
3.3 LTR |
|
Engine Power |
117 kW @ 2600 RPM |
|
Engine Torque |
475 Nm @ 1600-2000 rpm |
|
Clutch Diameter, mm |
330 |
|
Gearbox |
G 550 5 Speed Cable shift |
|

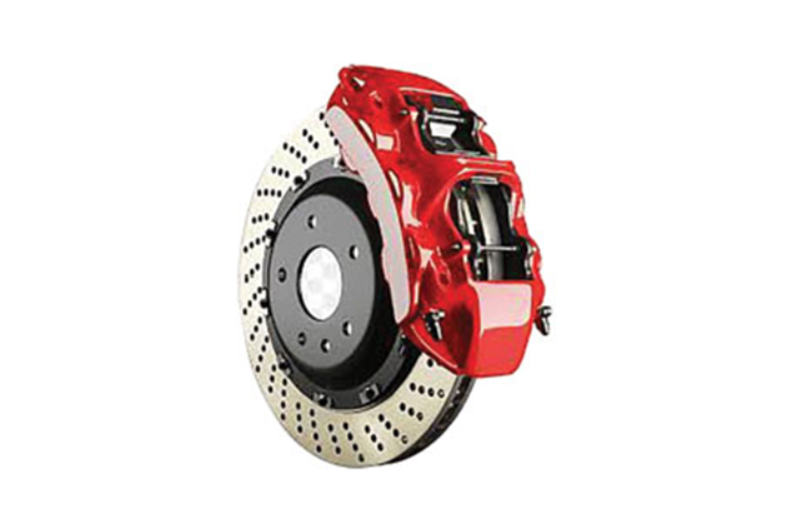

Brakes |
Air Brakes |
|
Suspension |
Dual Stage Parabolic Suspension |
|
Steering |
Power-Steering, Tilt - Telescope |
|
Battery |
12 V/24 V, 120 Ah |
|
Alternator |
120 A/150 A |
|
Tyres |
9R20 / 10R20 |
|
Fuel Tank Capacity, L |
160 Plastic |
|
DEF Tank Capacity, L |
18/25 |
|
Max GVW, kg |
14000 |
|
Seating Capacity |
SKL: 58 & 62, STD: 40 / 45 / 50 & 55 |
|
Length, mm |
10720 |
|
Rear Overhang, mm |
3220 |
|
Front Overhang, mm |
2100 |
|
Overall Height, mm |
3160 |
|
Max. Width, mm |
2570 |
|
TCD, m |
20.5 |
|
Ground Clearance, mm |
240 |
|
AC / Non AC Option |
Both |
|
Application |
School Buses |
Components & Features
|
Specification |
Details |
|
Warranty Feature |
4 Years/4 Lakhs kms Warranty |
|
Warranty Feature |
3 Years/3 Lakhs kms Bus Body Warranty |
|
Body Design Feature |
Multiple Body Width Option 2200 MM / 2340 MM |
|
Cooling Feature |
E Viscous Fan |
|
Telematics Feature |
4G Telematic Solution with FOTA |
|
Steering Feature |
Modular steering wheel with Cruise Control |
|
Fuel System Feature |

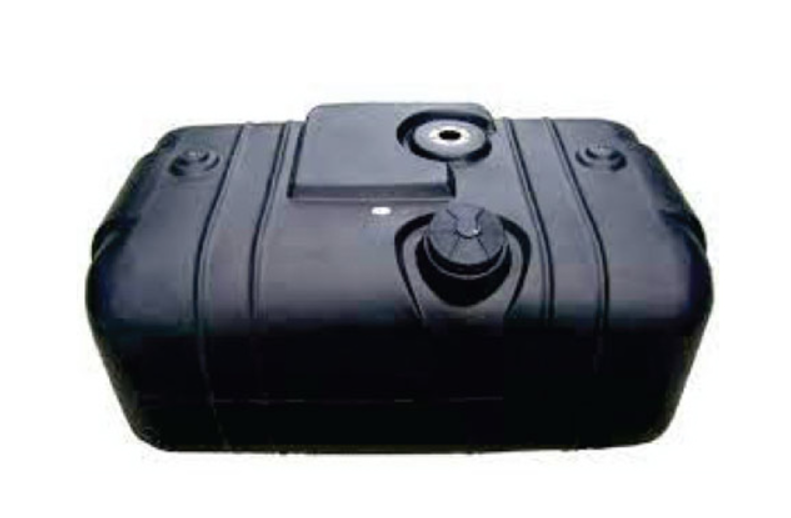

Plastic Fuel Tank with Fuel Monitoring system |
|
Safety Feature |
Fire detection and alarm system |
|
Efficiency Feature |

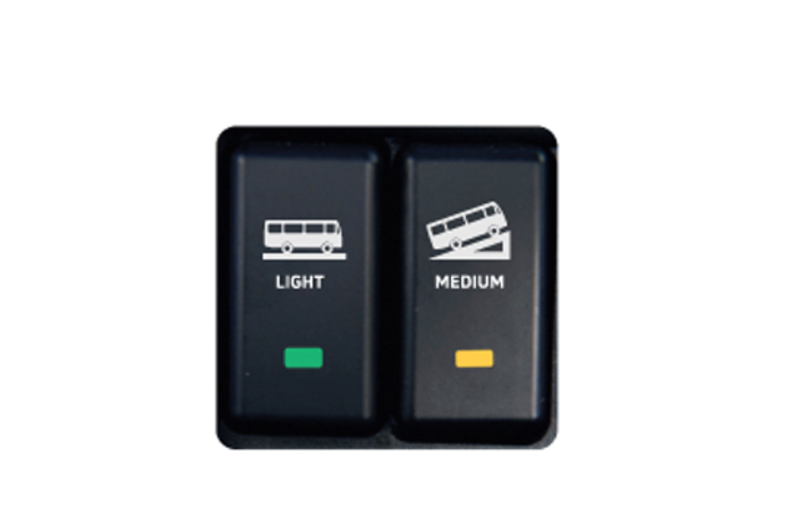

Multi Mode Fuel Economy Switch |
|
Safety Feature |
Electronic stability control with hill start assist |
|
Seating Feature |
Driver suspended Seats |
|
Transmission Feature |
Torque Based Gear Shift Advisor |
|
Wheel Feature |
Unitised Wheel Bearing (THU) |
|
Comfort Feature |
Air conditioning (AC) unit |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
School bus signage and stop arm |
|
Safety Feature |
First-aid kit |
