Specification

Details

Bus Model

LPO 11.6/54

Engine

3.3 LTR

Engine Power

117 kW @ 2600 RPM

Engine Torque

475 Nm @ 1600-2000 rpm

Clutch Diameter, mm

330

Gearbox

G 550 6 Speed Cable shift

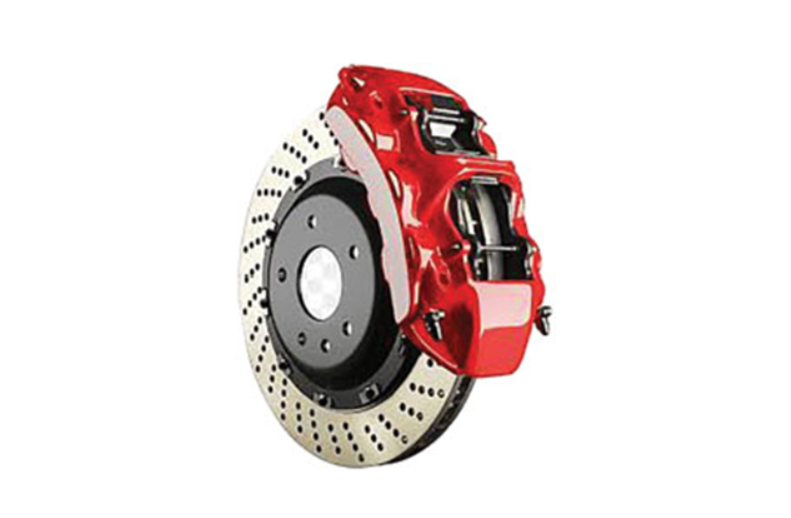

Brakes

Air Brakes

Suspension

Dual Stage Parabolic Suspension

Steering

Power-Steering, Tilt - Telescope

Battery

12 V/24 V, 120 Ah

Alternator

120 A/150 A

Tyres

235/75 R17.5

Fuel Tank Capacity, L

160 Plastic

DEF Tank Capacity, L

18/25

Max GVW, kg

10800

Seating Capacity

SKL: 58, STD: 40 / 44 / 50 & 55

Length, mm

10440

Rear Overhang, mm

3240

Front Overhang, mm

1800

Overall Height, mm

2910/3120

Max. Width, mm

2340/2550

TCD, m

19.5

Ground Clearance, mm

180

AC / Non AC Option

Both

Application

School Buses

Specification

Details

Warranty Feature

4 Years/4 Lakhs kms Warranty

Warranty Feature

3 Years/3 Lakhs kms Bus Body Warranty

Body Design Feature

Multiple Body Width Option 2200 MM / 2340 MM

Cooling Feature

E Viscous Fan

Telematics Feature

4G Telematic Solution with FOTA

Steering Feature

Modular steering wheel with Cruise Control

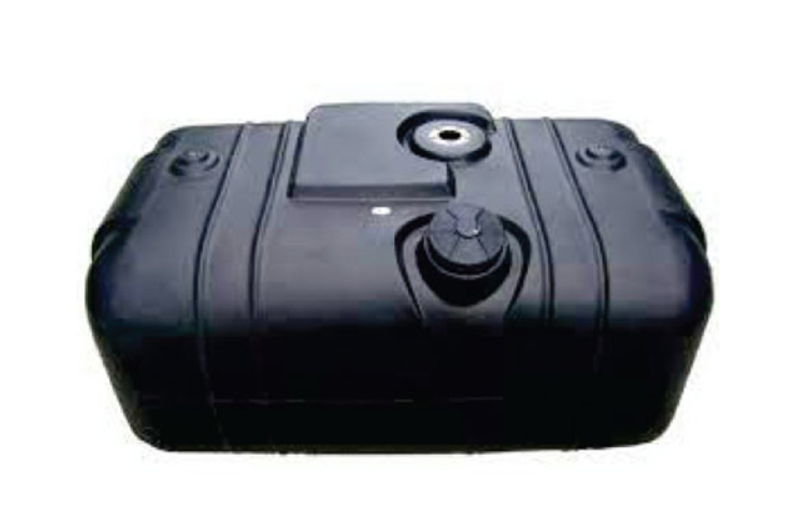

Fuel System Feature

Plastic Fuel Tank with Fuel Monitoring system

Safety Feature

Fire detection and alarm system

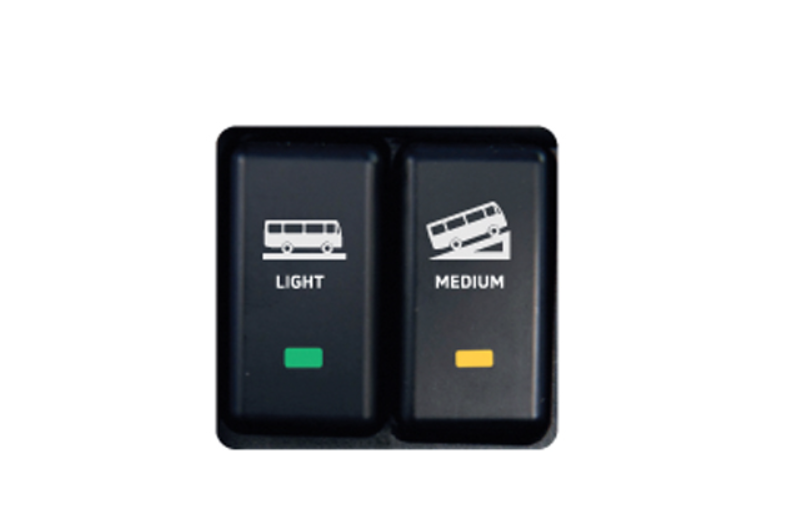

Efficiency Feature

Multi Mode Fuel Economy Switch

Safety Feature

Electronic stability control with hill start assist

Seating Feature

Driver suspended Seats

Transmission Feature

Torque Based Gear Shift Advisor

Wheel Feature

Unitised Wheel Bearing (THU)

Comfort Feature

Air conditioning (AC) unit

Safety Feature

Seat belts for all passengers

Safety Feature

Emergency exit

Safety Feature

Reinforced body structure

Safety Feature

Anti-slip flooring

Safety Feature

School bus signage and stop arm

Safety Feature

First-aid kit
