Specification

Details

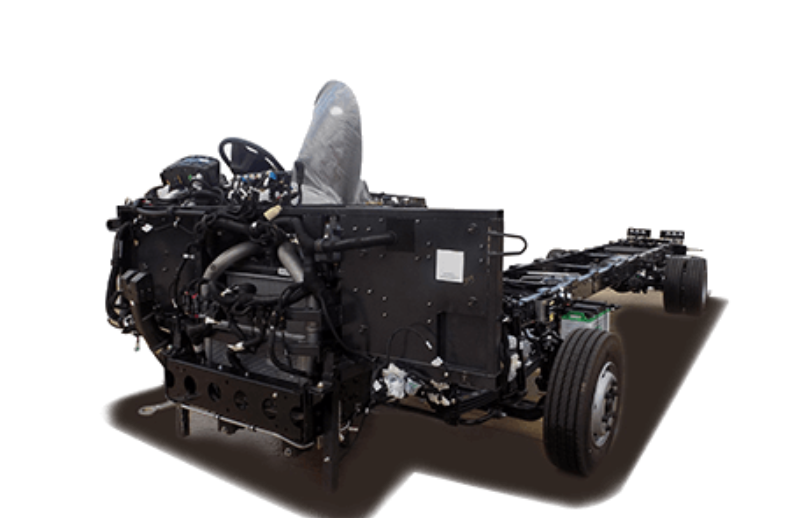

Bus Model

LPO 11.6/52 CNG

Wheelbase, mm

5200

Engine

TATA 3.8 SGI TCIC

Engine Power, kW@RPM

92 kW @ 2400 r/min

Engine Torque, Nm@RPM

470 Nm @ 1400-1600 rpm

Fuel Type

CNG

Clutch Diameter, mm

330

Gearbox

GBS550 - Cable Shift

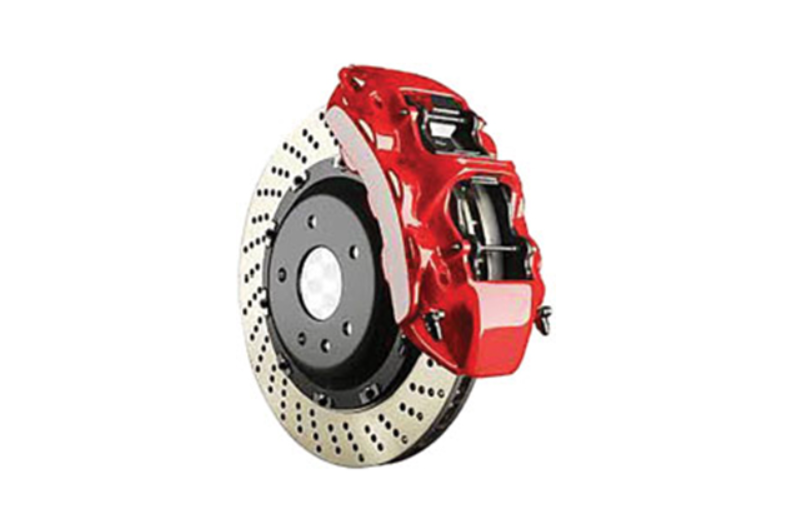

Brakes

Air Brakes

Suspension

Dual Stage Parabolic Suspension

Steering

Power-Steering, Tilt - Telescope

Battery

24 V, 120 Ah

Alternator

150 A

Tyres

235/75 R17.5

Fuel Tank Capacity, Litres

528

DEF Tank Capacity, Litres

NA

Max. GVW, kg

10200

Seating Capacity

SKL: 46 / 52 & 60

Length, mm

9770

Rear Overhang, mm

2950

Front Overhang, mm

1650

Overall Height, mm

2910/3120

Max. Width, mm

2340/2550

TCD, m

18.5

Ground Clearance, mm

180

AC / Non-AC Option

Both

Application

School Buses

Feature

Details

Feature: Warranty

4 Years/4 Lakhs kms Warranty; 3 Years/3 Lakhs kms Bus Body Warranty

Feature: Body Width Options

Multiple Body Width Option 2200 MM / 2340 MM

Feature: Engine

Fuel Efficient 3.3Ltr Engine with Balanced Power & Torque

Feature: Cooling

E Viscous Fan

Feature: Tyres

Low CRR Radial Tubeless & Tube Type Tyre

Feature: Telematics

4G Telematic Solution with FOTA

Feature: Steering

Modular Steering Wheel with Cruise Control

Feature: Fuel Tank

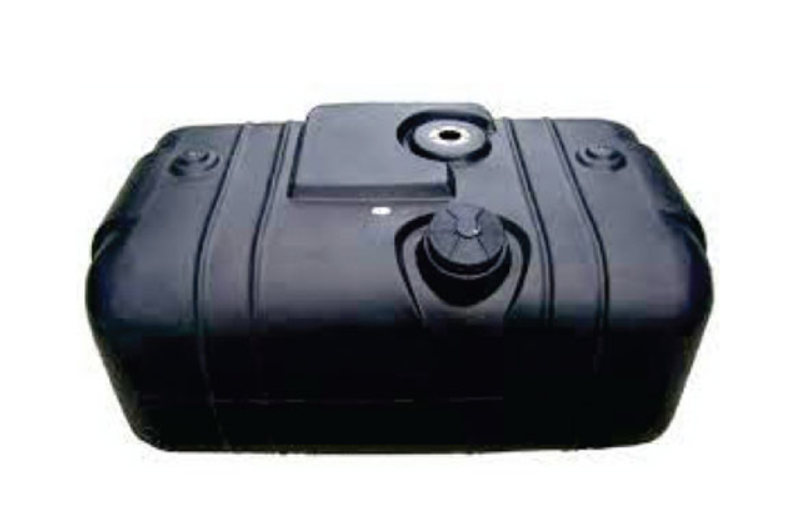

Plastic Fuel Tank with Fuel Monitoring System

Feature: Safety

Fire Detection and Alarm System

Feature: Fuel Efficiency

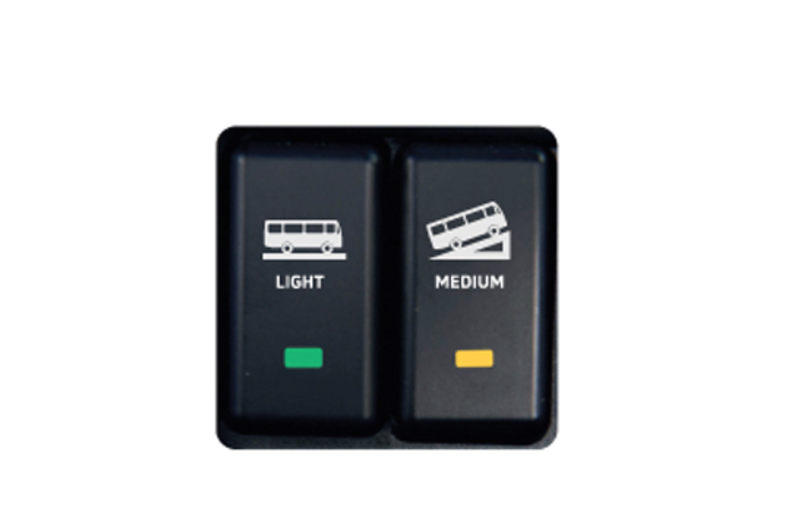

Multi Mode Fuel Economy Switch

Feature: Stability

Electronic Stability Control with Hill Start Assist*

Feature: Seating

Driver Suspended Seats

Feature: Gear Shift

Torque Based Gear Shift Advisor

Feature: Wheel Bearing

Unitised Wheel Bearing (THU)
