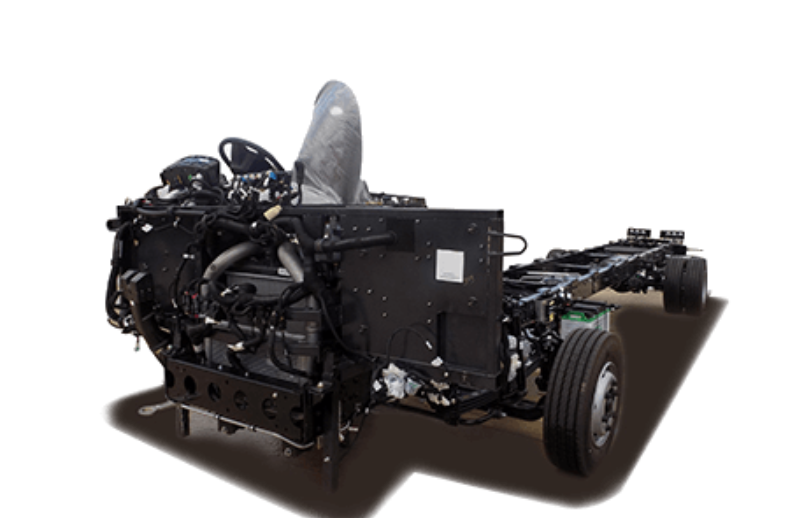

Tata LP 913 52 CNG – Tata Motors School Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
LP 913/52 CNG |
|
Wheelbase, mm |
5200 |
|
Engine |
TATA 3.8 SGI TCIC |
|
Engine Power |
92 kW @ 2400 r/min |
|
Engine Torque |
470 Nm @ 1400-1600 rpm |
|
Clutch Diameter, mm |
330 |
|
Gearbox |
GBS550 - Cable Shift |
|

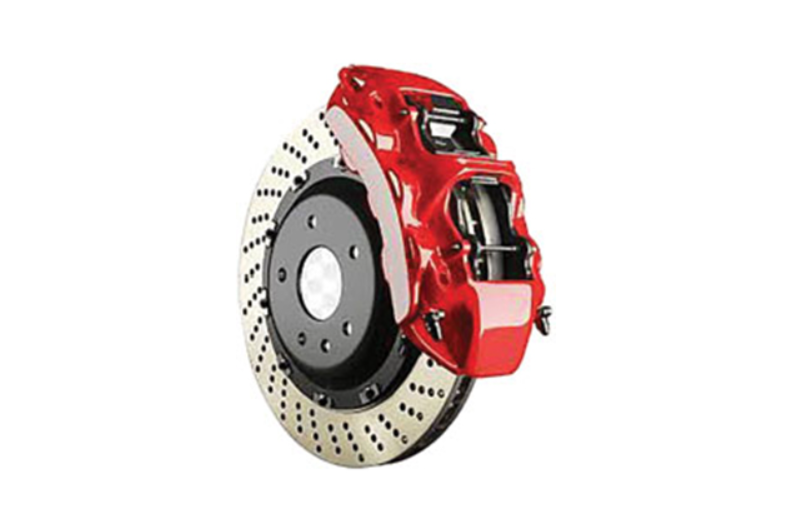

Brakes |
Air Brakes |
|
Suspension |
Dual Stage Parabolic Suspension |
|
Steering |
Power-Steering, Tilt - Telescope |
|
Battery |
24 V, 120 Ah |
|
Alternator |
150 A |
|
Tyres |
235/75 R17.5 |
|
Fuel Tank Capacity, L |
516 (CNG) |
|
DEF Tank Capacity, L |
NA |
|
Max GVW, kg |
10200 |
|
Seating Capacity |
SKL: 42 / 50 & 59 |
|
Length, mm |
9750 |
|
Rear Overhang, mm |
2950 |
|
Front Overhang, mm |
1430 |
|
Overall Height, mm |
2910/3120 |
|
Max. Width, mm |
2340/2550 |
|
TCD, m |
18.5 |
|
Ground Clearance, mm |
180 |
|
AC / Non AC Option |
Both |
|
Application |
School Buses |
Components & Features
|
Specification |
Details |
|
Warranty Feature |
4 Years/4 Lakhs kms Warranty |
|
Warranty Feature |
3 Years/3 Lakhs kms Bus Body Warranty |
|
Body Design Feature |
Multiple Body Width Option 2200 MM / 2340 MM |
|
Cooling Feature |
E Viscous Fan |
|
Telematics Feature |
4G Telematic Solution with FOTA |
|
Steering Feature |
Modular steering wheel with Cruise Control |
|
Fuel System Feature |

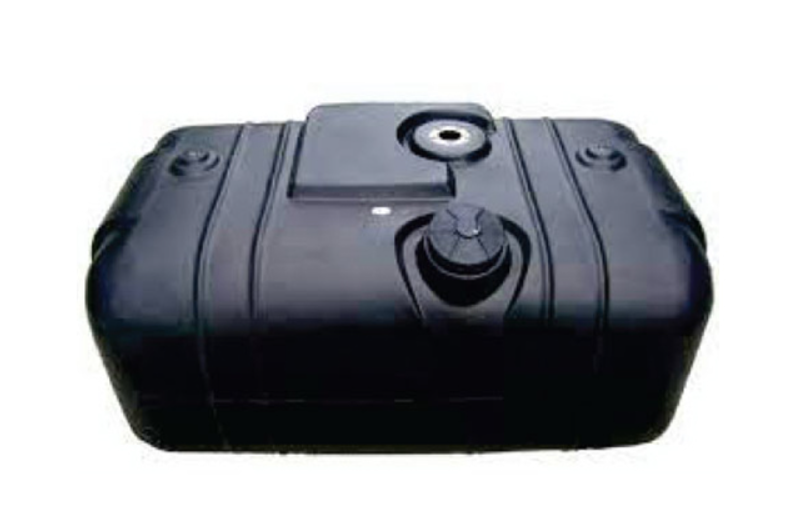

CNG Fuel Tank with Fuel Monitoring system |
|
Safety Feature |
Fire detection and alarm system |
|
Efficiency Feature |

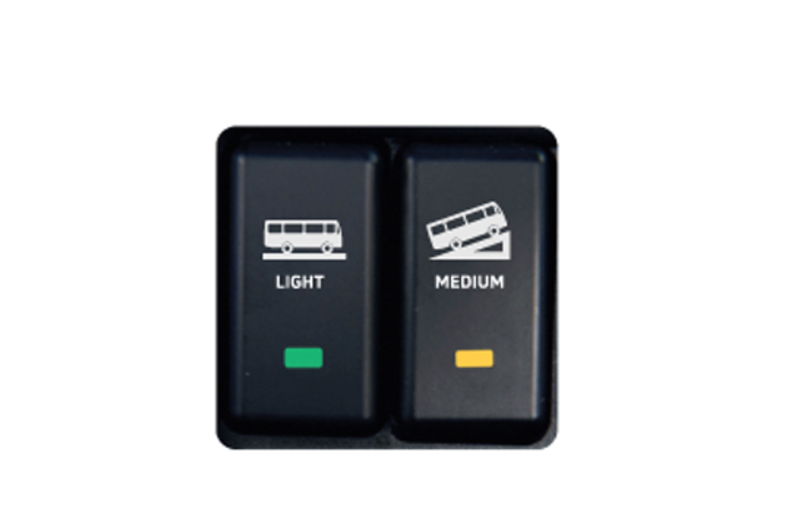

Multi Mode Fuel Economy Switch |
|
Safety Feature |
Electronic stability control with hill start assist |
|
Seating Feature |
Driver suspended Seats |
|
Transmission Feature |
Torque Based Gear Shift Advisor |
|
Wheel Feature |
Unitised Wheel Bearing (THU) |
|
Comfort Feature |
Air conditioning (AC) unit |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
School bus signage and stop arm |
|
Safety Feature |
First-aid kit |
