Specification

Details

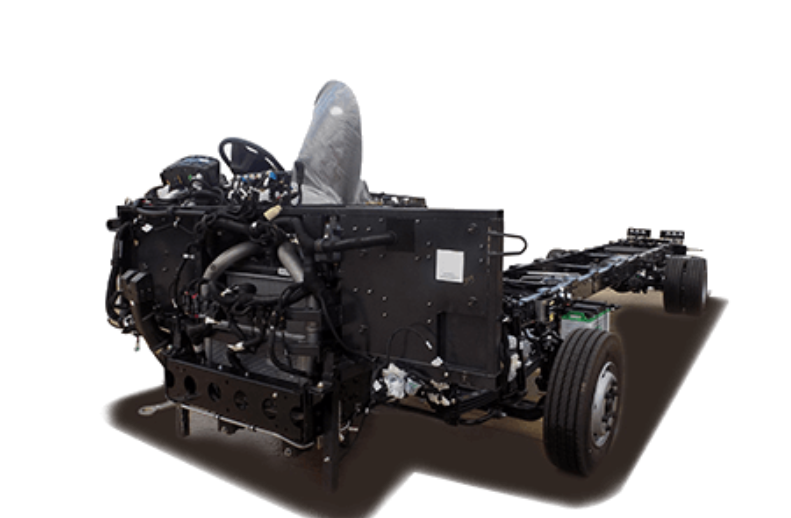

Bus Model

LP 410/33

Wheelbase, mm

3300

Engine

TATA 4SP CR

Engine Power

74 kW @ 2800 r/min

Engine Torque

300 Nm @ 1400-2200 r/min

Clutch Diameter, mm

280

Gearbox

GB400 - Cable Shift

Brakes

ALL wheel Disc with Hydraulic Brake

Suspension

Parabolic Suspension

Steering

Power-Steering, Tilt - Telescope

Battery

12 V, 100 Ah

Alternator

75 A/150 A

Tyres

215/75 R17.5

Fuel Tank Capacity, L

60 (Plastic)

DEF Tank Capacity, L

18

Max GVW, kg

5500

Seating Capacity

SKL: 18 / 20 & 25, STD: 16 & 20

Length, mm

5880

Rear Overhang, mm

1650

Front Overhang, mm

930

Overall Height, mm

2785/3005

Max. Width, mm

2200

TCD, m

12.5

Ground Clearance, mm

200

AC / Non AC Option

Both

Application

School Buses

Specification

Details

Warranty Feature

4 Years/4 Lakhs kms Warranty

Warranty Feature

3 Years/3 Lakhs kms Bus Body Warranty

Body Design Feature

Multiple Body Width Option 2200 MM / 2340 MM

Cooling Feature

E Viscous Fan

Telematics Feature

4G Telematic Solution with FOTA

Steering Feature

Modular steering wheel with Cruise Control

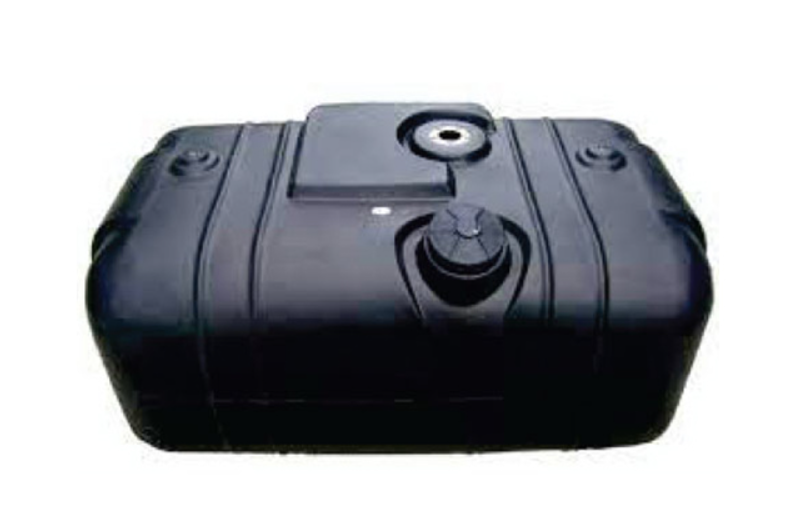

Fuel System Feature

Plastic Fuel Tank with Fuel Monitoring system

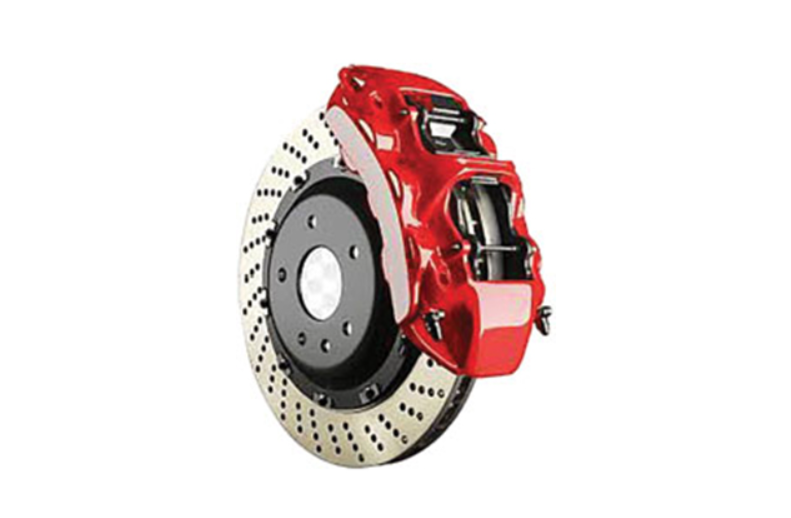

Brake Feature

All wheel Disc Brake

Safety Feature

Fire detection and alarm system

Efficiency Feature

Multi Mode Fuel Economy Switch

Safety Feature

Electronic stability control with hill start assist

Seating Feature

Driver suspended Seats

Transmission Feature

Torque Based Gear Shift Advisor

Wheel Feature

Unitised Wheel Bearing (THU)

Comfort Feature

Air conditioning (AC) unit

Safety Feature

Seat belts for all passengers

Safety Feature

Emergency exit

Safety Feature

Reinforced body structure

Safety Feature

Anti-slip flooring

Safety Feature

School bus signage and stop arm

Safety Feature

First-aid kit
