Specification

Details

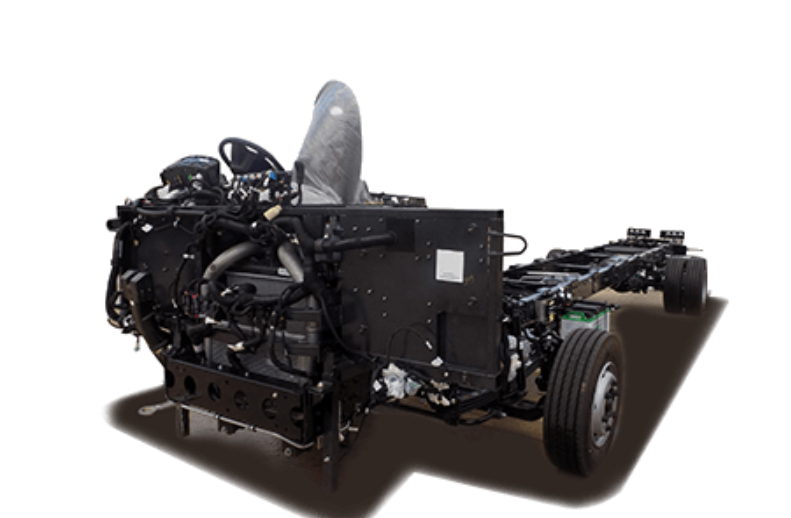

Bus Model

LP 410/31

Wheelbase, mm

3100

Engine

TATA 4SP CR

Engine Power, kW@RPM

74 kW @ 2800 r/min

Engine Torque, Nm@RPM

300 Nm @ 1400-2200 r/min

Fuel Type

Diesel

Clutch Diameter, mm

280

Gearbox

GB400 - Cable Shift

Brakes

All Wheel Disc with Hydraulic Brake

Suspension

Parabolic Suspension

Steering

Power-Steering, Tilt - Telescope

Battery

12 V, 100 Ah

Alternator

75 A

Tyres

215/75 R17.5

Fuel Tank Capacity, Litres

60 Plastic

DEF Tank Capacity, Litres

18

Max. GVW, kg

5500

Seating Capacity

SKL: 18 & 22, STD: 12 / 14 / 16 & 18

Length, mm

5735

Rear Overhang, mm

1736

Front Overhang, mm

930

Overall Height, mm

2785

Max. Width, mm

2200

TCD, m

12

Ground Clearance, mm

200

AC / Non-AC Option

Non-AC

Application

School Buses

Feature

Details

Feature: Warranty

4 Years/4 Lakhs kms Warranty; 3 Years/3 Lakhs kms Bus Body Warranty

Feature: Body Width Options

Multiple Body Width Option 2200 MM / 2340 MM

Feature: Engine

Fuel Efficient 4SPCR Engine with Balanced Power & Torque

Feature: Cooling

E Viscous Fan

Feature: Tyres

Low CRR Radial Tubeless & Tube Type Tyre

Feature: Telematics

4G Telematic Solution with FOTA

Feature: Steering

Modular Steering Wheel with Cruise Control

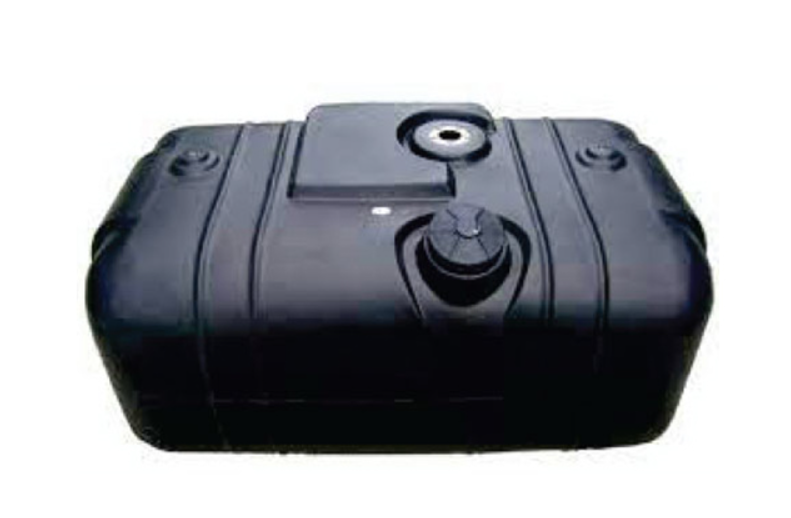

Feature: Fuel Tank

Plastic Fuel Tank with Fuel Monitoring System

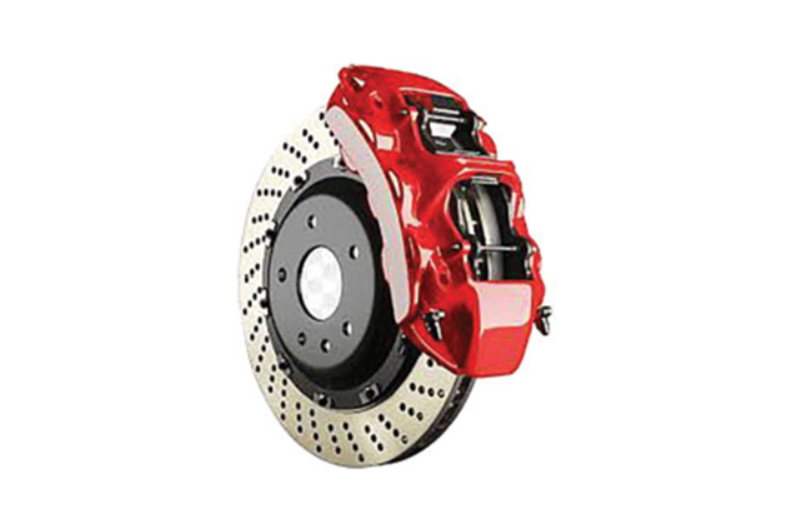

Feature: Brakes

All Wheel Disc with Hydraulic Brake

Feature: Safety

Fire Detection and Alarm System

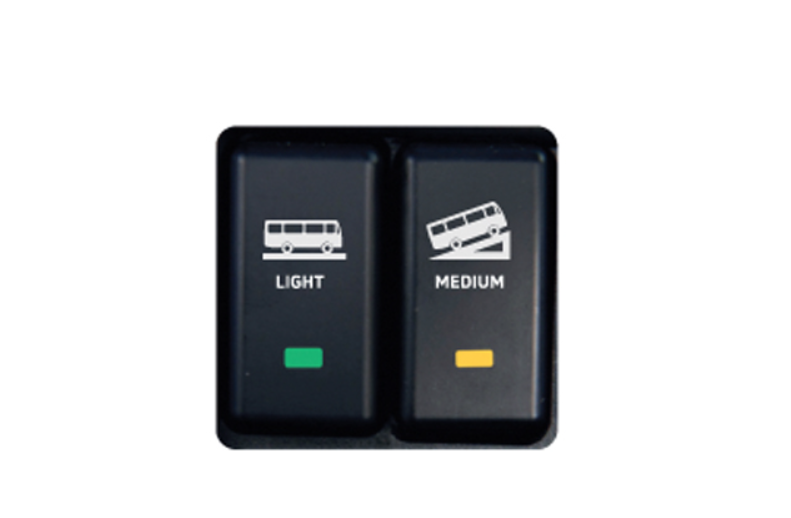

Feature: Fuel Efficiency

Multi Mode Fuel Economy Switch

Feature: Stability

Electronic Stability Control with Hill Start Assist*

Feature: Seating

Driver Suspended Seats

Feature: Gear Shift

Torque Based Gear Shift Advisor

Feature: Wheel Bearing

Unitised Wheel Bearing (THU)
