2024 Liv Intrigue X Advanced E+ Elite 3 – Electric Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue X Advanced E+ Elite 3 |
|
Vehicle Category |
Electric Trail Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$6,000 USD |
|
Color Options |
Shoreline |
|
Sizes |
XS, S, M, L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Advanced-grade composite frame, ALUXX SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
|
Fork |
Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110 |
|
Rear Shock |
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned |
|
Crankset |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, XS/S:160, M/L:165) |
|
Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
|
Shifters |
Shimano Deore |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
Shimano Deore 12-speed, Shadow+ |
Components & Features
|
Specification |
Details |
|
Motor |
Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed: 20MPH |
|
Battery |
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
|
Seating |
Liv Sylvia E+ |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F], Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
|
Wheel Size |
29" [F] / 27.5" [R] |
|
Brakes |
Shimano BR-MT420, 4-piston, hydraulic disc, 203mm |
|
Brake Levers |
Shimano Deore, I-spec EV |
|
Handlebar |
Giant Contact 35 Trail, 35x760mm (XS-S), 780mm (M-L) |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Threadless, integrated |
|
Saddle |
Liv Sylvia E+ |
|

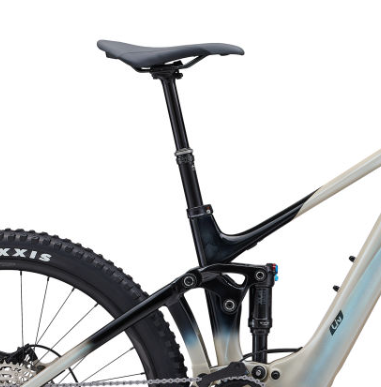

Seatpost |
Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm) |
|
Grips |
Liv Tactal Pro-E Single Lock-On Grips |
|

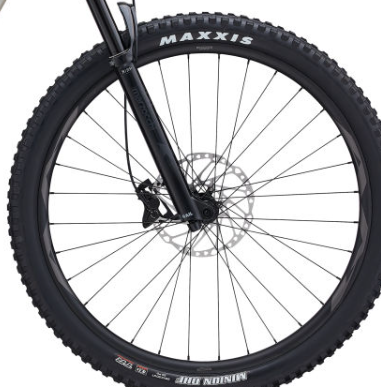

Front Hub |
Shimano MT410 Boost, Center-Lock, 110x15 |
|

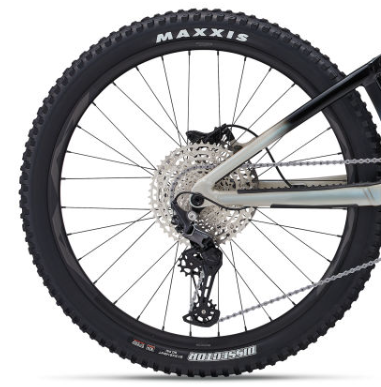

Rear Hub |
Shimano MT410 Boost, Center-Lock, 148x12mm Micro-Spline Drive Body Thru-axle |
|
Rims |
AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R] |
|
Spokes |
Sapim E-Lite [R] Race [F], e-bike optimized |
|
Exterior Features |
Tubeless kit (liquid, valves, levers, manual, tool), Inner tube supplied |
|
Weight |
20.9 kg (46 lbs 2 oz) - Size XS |
