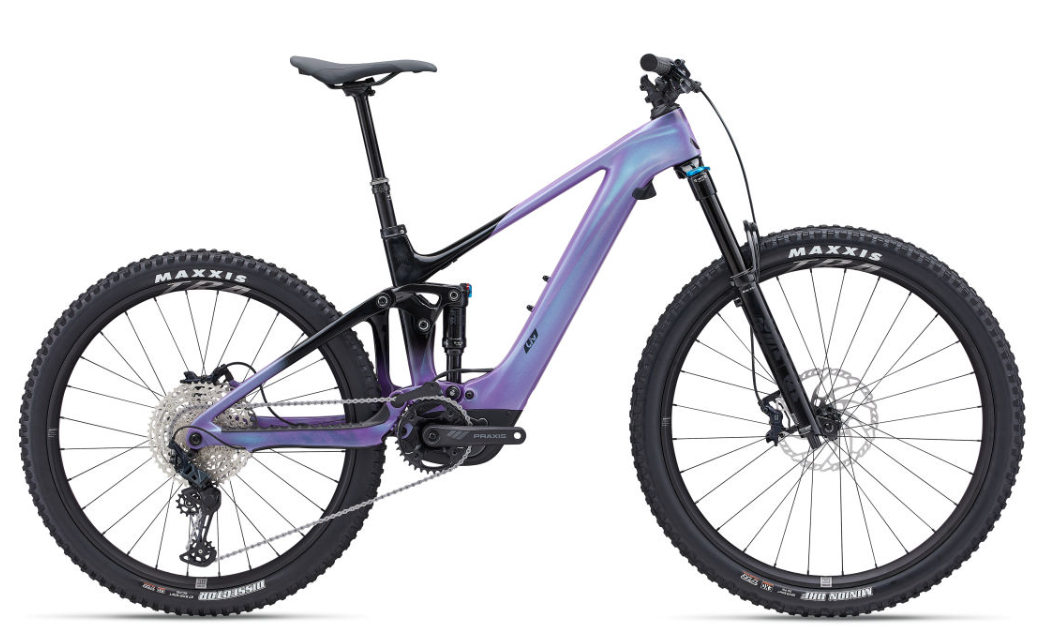

2024 Liv Intrigue X Advanced E+ Elite 2 – Women's Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue X Advanced E+ Elite 2 |
|
Vehicle Category |
Women's Electric Mountain Bike |
|
Application |
Trail riding and singletrack for women |
|
Starting Price (2025) |
$7,500 USD |
|
Color Options |
Not specified |
|
Sizes |
XS (5'0" - 5'4"), S (5'2" - 5'7"), M (5'5" - 5'9"), L (5'7" - 5'11") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

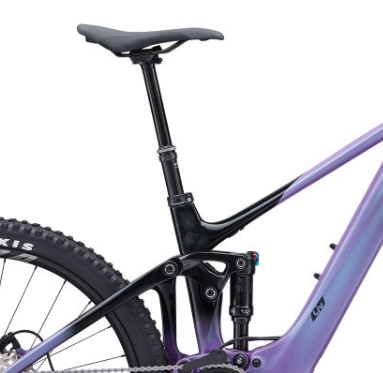

Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
|
Fork |
Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Kabolt-X 110 |
|
Rear Shock |
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned |
|
Crank |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks, Q-factor=168, XS/S:160mm, M/L:165mm |
|
Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
|
Shifters |
Shimano SLX |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
Shimano SLX, 12-speed, Shadow+ |
Components & Features
|
Specification |
Details |
|
Motor |
Giant SyncDrive Pro2 Mg, 85Nm, Magnesium Casing, powered by Yamaha, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed: 20MPH |
|
Battery |
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
|
Range |
21-80 miles (400Wh), up to 600Wh with optional 200Wh range extender |
|
Controller |
Giant RideControl Ergo3, grip integrated remote |
|
Display |
Giant RideControl GO, frame integrated LED console, Optional wireless ANT+ display |
|
Charger |
Not specified |
|
Connectivity |
Not specified |
|
Seating |
Liv Sylvia E+ |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.50" Foldable, TLR, EXO [F]; Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
|
Wheel Size |
29" (F), 27.5" (R) |
|
Brakes |
Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm |
|
Brake Levers |
Shimano SLX, I-spec EV |
|
Handlebar |
Giant Contact 35 Trail, 35x760mm (XS-S), 780mm (M-L) |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Giant integrated |
|
Saddle |
Liv Sylvia E+ |
|
Seatpost |
Tranz-X Rad+ dropper, 30.9mm, XS/S:90-125mm, M:120-150mm, L:140-170mm |
|
Grips |
Liv Tactal Pro-E Single Lock-On Grips |
|
Front Hub |
E-TRA MTB Alloy Hub, 6 Bolt, 110x15mm |
|
Rear Hub |
E-TRA MTB Alloy Hub, 6 Bolt, 148x12mm Shimano Micro-Spline Drive Body Pawl Driver (Pawl 36x2 T) |
|
Rims |
E-TRA Hookless Tubeless ready Alloy, 29" [F], 27.5" [R], 30mm inner width |
|
Exterior Features |
Tubeless kit (liquid, valves, levers, manual, tool), Inner tube supplied |
|
Weight |
20.49 kg (45 lbs 3 oz) - Size Medium |
