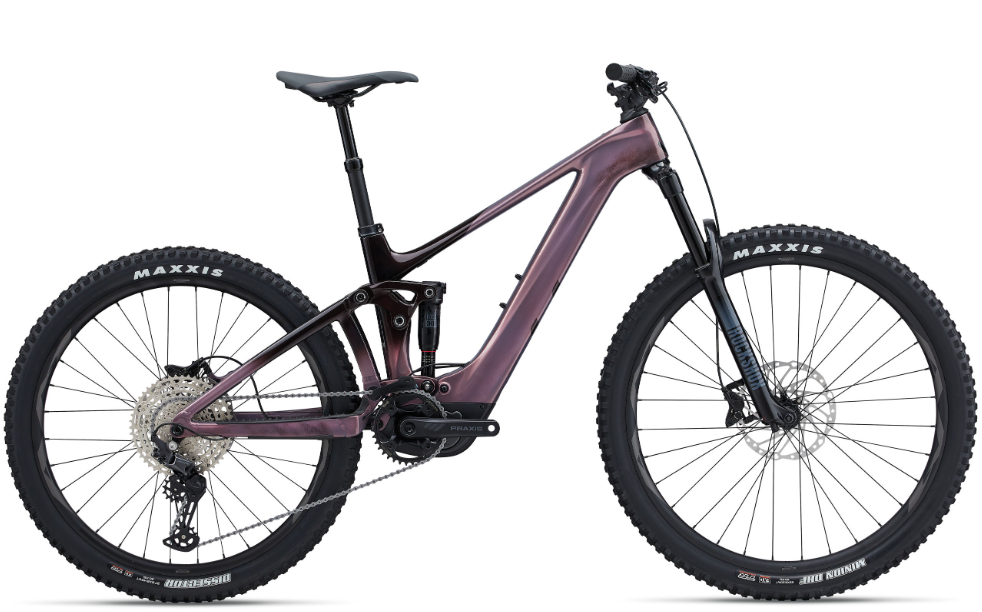

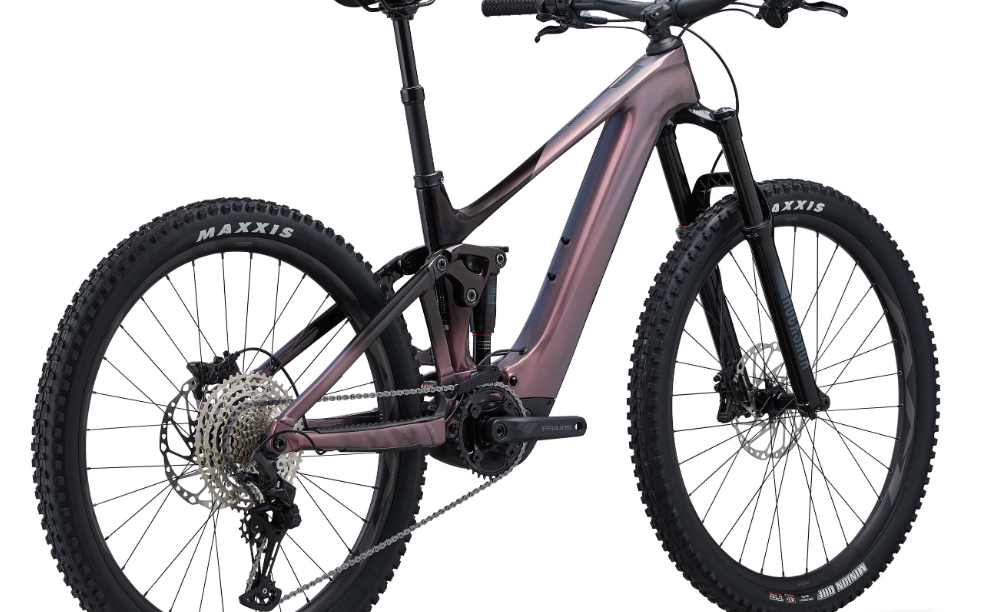

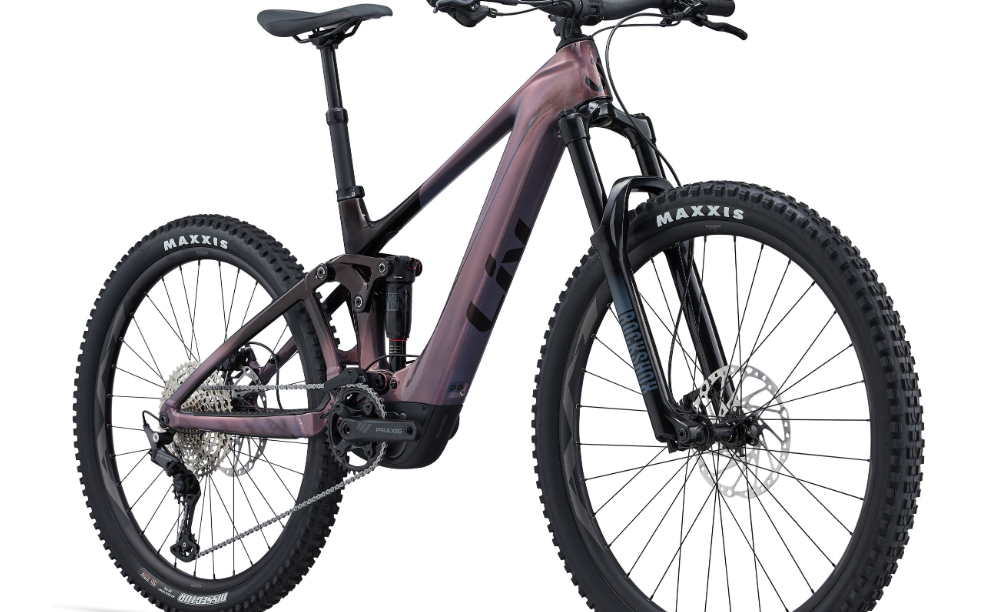

2023 Liv Intrigue X Advanced E+ EL 3 20MPH – Electric Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue X Advanced E+ EL 3 20MPH |
|
Vehicle Category |
Electric Trail Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$3,999 USD |
|
Color Options |
Mirage/Cordovan |
|
Sizes |
XS, S, M, L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

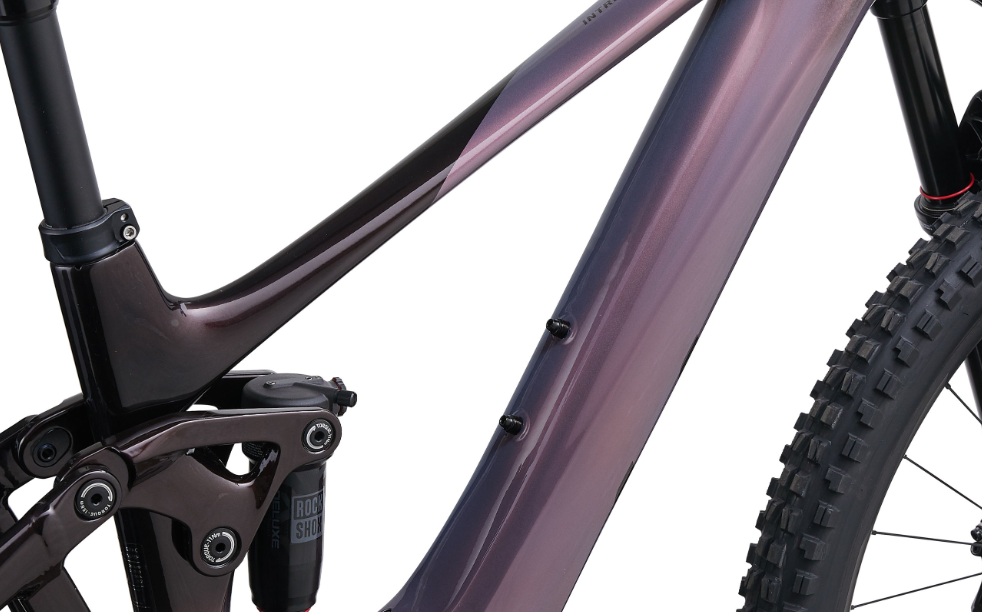

Advanced-grade composite frame, ALUXX SL-grade rear triangle, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible, MX (front 29", rear 27.5") |
|
Fork |
RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized |
|
Rear Shock |
Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned |
|
Crankset |
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (XS:160, S/M:165, L:170) |
|
Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
|
Shifters |
Shimano Deore |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
Shimano Deore, 12-speed |
Components & Features
|
Specification |
Details |
|
Motor |
SyncDrive Pro2 85Nm, powered by Yamaha, Class 1, Max Assist Speed: 20MPH |
|
Battery |
EnergyPak Smart 400, EnergyPak Plus range extender compatible |
|
Seating |
Liv Sylvia E+ |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F], Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
|
Wheel Size |
29" (F) / 27.5" (R) |
|
Brakes |
Shimano BR-M420, 4-piston, hydraulic disc, 203mm |
|
Brake Levers |
Shimano Deore, I-spec EV |
|
Handlebar |
Giant Contact 35 Trail, 35x760mm (XS-S), 780mm (M-L) |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Threadless, integrated |
|
Saddle |
Liv Sylvia E+ |
|
Seatpost |
Giant Contact Switch, dropper, 30.9mm (XS-S:100mm, M:125mm, L:150mm) |
|
Grips |
Liv Tactal Pro-E Single Lock-On Grips |
|
Front Hub |
Shimano MT410 Boost, Center-Lock, 110x15mm |
|
Rear Hub |
Shimano MT410 Boost, Center-Lock, 148x12mm Micro-Spline Drive Body Thru-axle |
|
Rims |
AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R] |
|
Spokes |
Sapim E-Lite [R] Race [F], e-bike optimized |
|
Exterior Features |
Tubeless kit (liquid, valves, levers, manual, tool) |
|
Weight |
21.04 kg (46 lbs 6 oz) - Size S |
