2025 Liv Intrigue X Advanced 2 – Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue X Advanced 2 |
|
Vehicle Category |
Trail Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$5,000 USD |
|
Color Options |
Shoreline |
|
Sizes |
XS, S, M, L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, 12x148mm thru-axle, flip chip – Maestro 3, flip chip – headset, integrated down tube storage, under-top tube storage mounts |
|

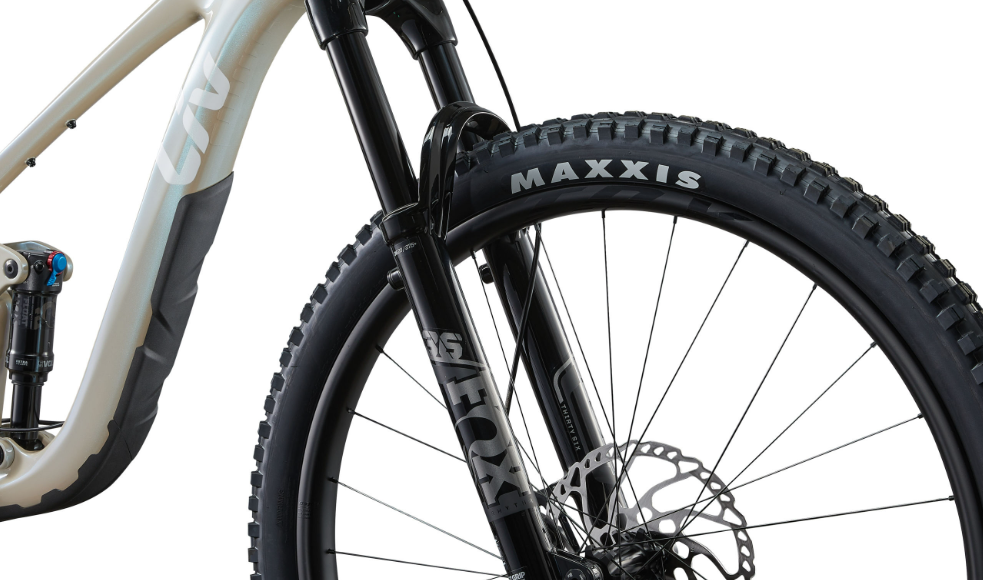

Fork |
Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
|

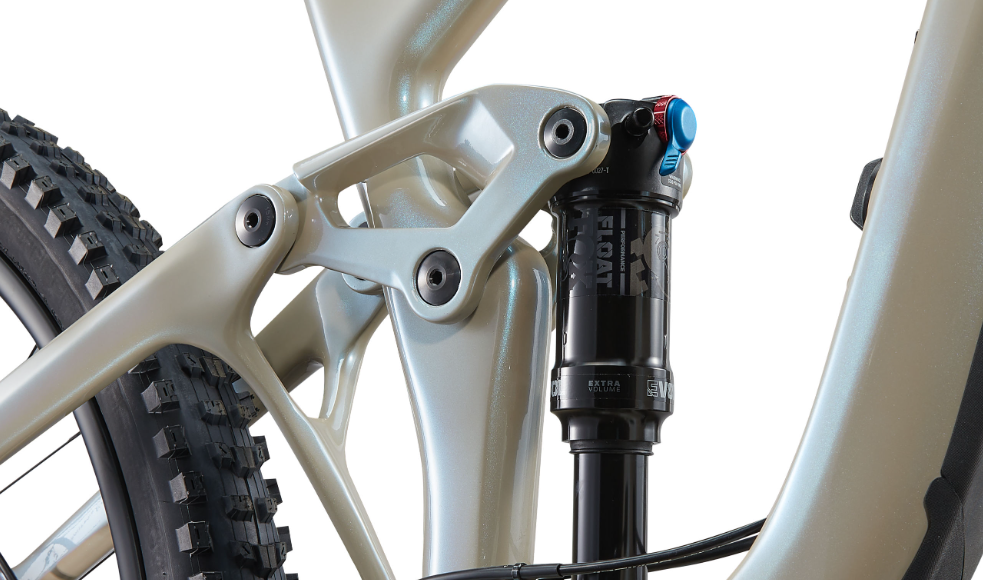

Rear Shock |
Fox Float Performance, 185x52.5, custom tuned for Liv, recommended sag 30% |
|
Crankset |
Praxis Cadet HD M24 Boost, 30t, 55mm chainline XS:165mm, S:170mm, M:170mm, L:170mm |
|
Chain |
KMC X12 |
|
Bottom Bracket |
Shimano, press fit |
|
Shifters |
Shimano Deore, 1x12 |
|
Rear Derailleur |
Shimano Deore, Shadow + |
Components & Features
|
Specification |
Details |
|
Seating |
Liv Sylvia |
|
Cargo Capacity |
Integrated down tube storage bag, under-top tube storage mounts |
|
Wheels/Tyres |
[XS, S, M, L, F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [XS, S, R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless [M, L, R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
|
Wheel Size |
XS, S: 29" (F) / 27.5" (R), M, L: 29" (F/R) or 27.5" (R) |
|
Brakes |
Shimano BR-MT420, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm |
|
Brake Levers |
Shimano BL-MT401 |
|

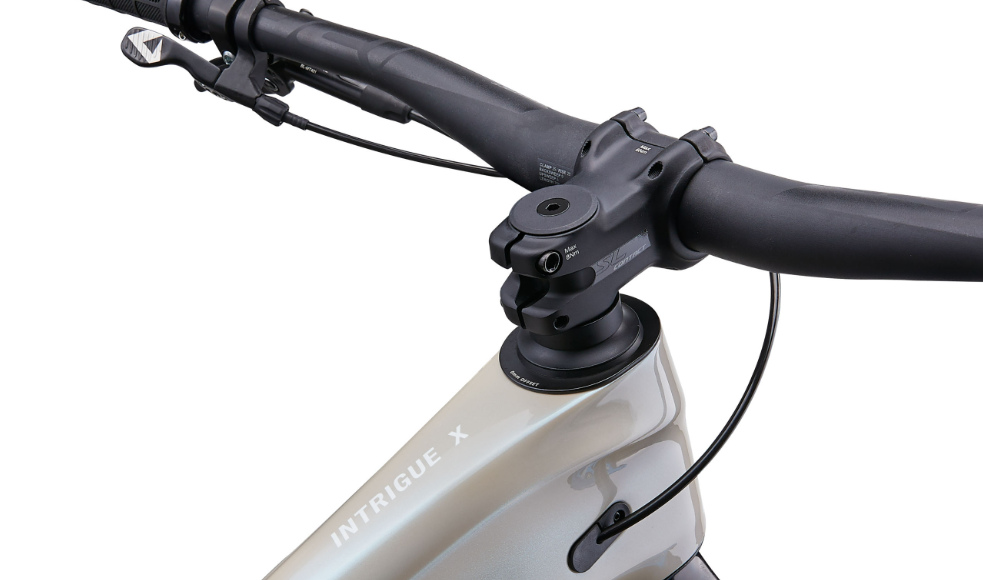

Handlebar |
Giant Contact TR35, 20mm rise, alloy XS:760mm, S:760mm, M:760mm, L:780mm |
|
Stem |
Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm |
|
Headset |
Threadless, integrated |
|
Saddle |
Liv Sylvia |
|
Seatpost |
Giant Contact Switch AT dropper, remote XS:140-170mm travel / 30.9 x 470mm, S:140-170mm travel / 30.9 x 470mm, M:170-200mm travel / 30.9 x 530mm, L:170-200mm travel / 30.9 x 530mm |
|
Grips |
Liv Tactal Pro Single Lock-on XS/S:120mm, M/L:130mm |
|
Front Hub |
Giant MTB alloy, 6-bolt |
|
Rear Hub |
Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body |
|
Rims |
Giant TRX WheelSystem, carbon, 30mm rim inner width, 40mm outer width, 22mm height, Wide Guard Technology XS/S: [F]29, [R]27.5 M/L: [F]29, [R]29 |
|
Spokes |
Sapim, 28, straight pull, DBL Technology |
|
Exterior Features |
3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5", max chainring size 34t |
|
Weight |
14.18 kg (31 lbs 4 oz) - Size M |
