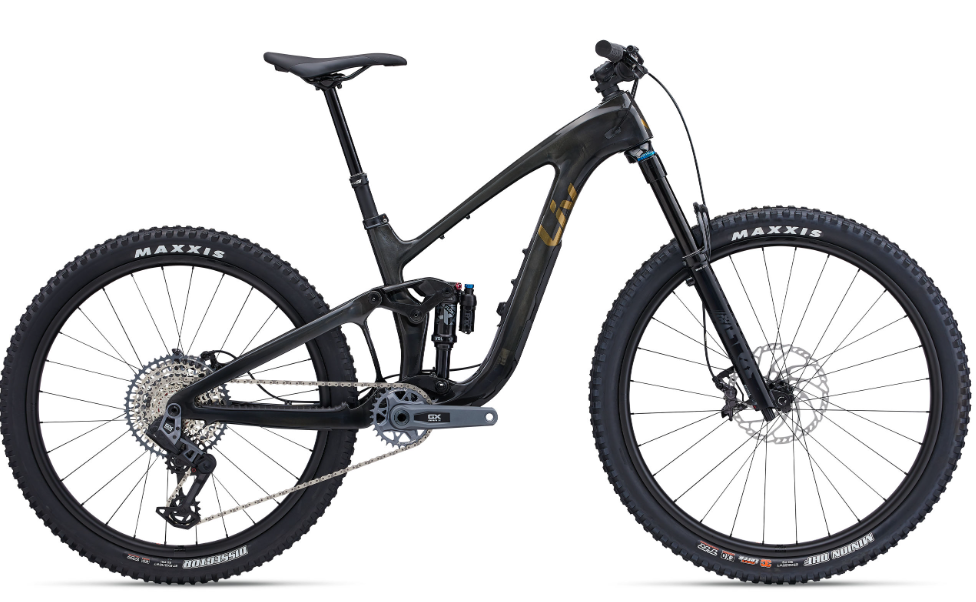

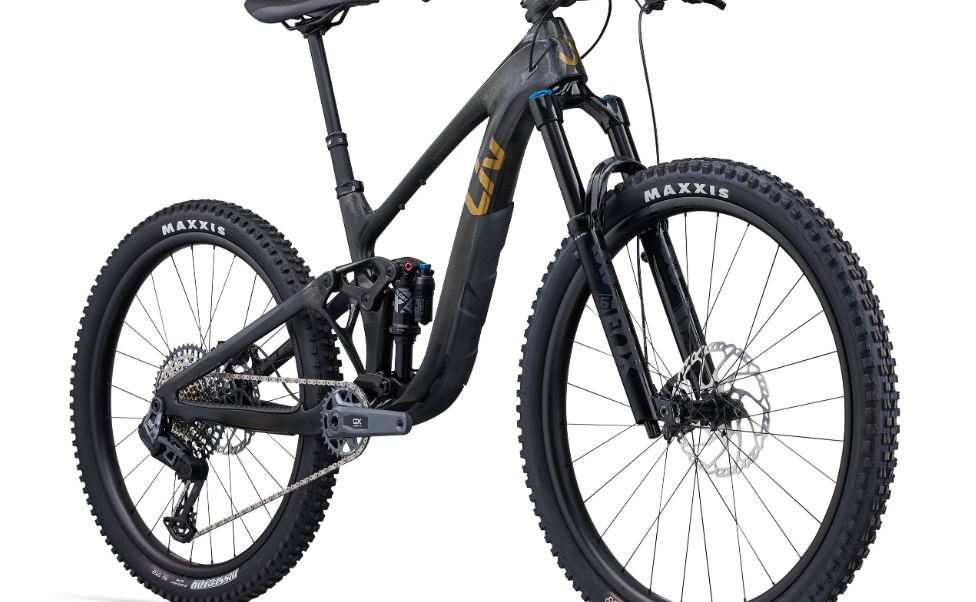

2024 Liv Intrigue X Advanced 1 – Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue X Advanced 1 |
|
Vehicle Category |
Trail Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$5,499 USD |
|
Color Options |
Raw Carbon/Chrome |
|
Sizes |
XS, S, M, L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage |
|

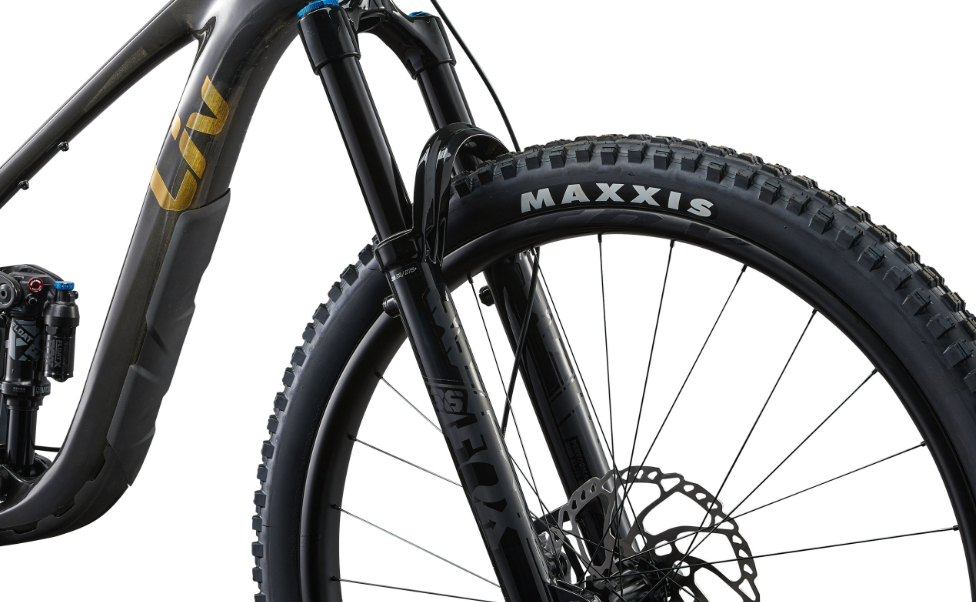

Fork |
Fox 36 Performance Elite, 150mm, Grip 2 damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
|
Rear Shock |
Fox Float X Performance Elite, 185x52.5, custom tuned for Liv |
|

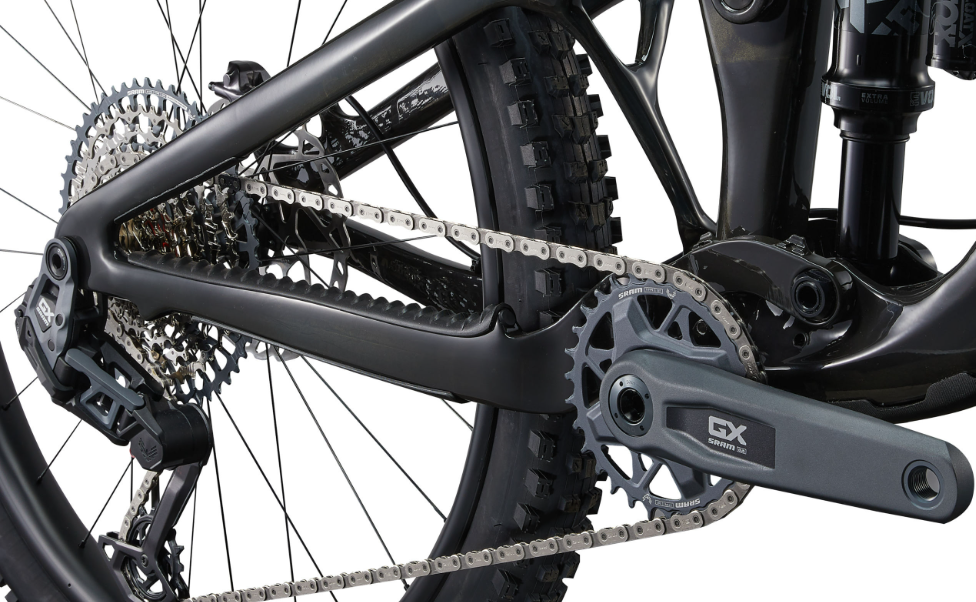

Crankset |
SRAM GX T-Type, 30t, 55mm chainline XS:165mm, S:170mm, M:170mm, L:170mm |
|
Chain |
SRAM GX T-Type |
|
Bottom Bracket |
SRAM DUB, press fit |
|
Shifters |
SRAM AXS Pod, 1x12 |
|
Rear Derailleur |
SRAM GX Eagle, T-Type AXS |
Components & Features
|
Specification |
Details |
|
Seating |
Liv Sylvia |
|
Cargo Capacity |
Integrated down tube storage bag |
|
Wheels/Tyres |
[XS, S, M, L, F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [XS, S, R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless [M, L, R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
|
Wheel Size |
XS, S: 29" (F) / 27.5" (R), M, L: 29" (F/R) or 27.5" (R) |
|
Brakes |
Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm |
|
Brake Levers |
Shimano XT BL-8100 |
|
Handlebar |
Giant Contact SLR TR35, 20mm rise, composite XS:760mm, S:760mm, M:760mm, L:780mm |
|
Stem |
Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm |
|
Headset |
Threadless, integrated |
|
Saddle |
Liv Sylvia |
|

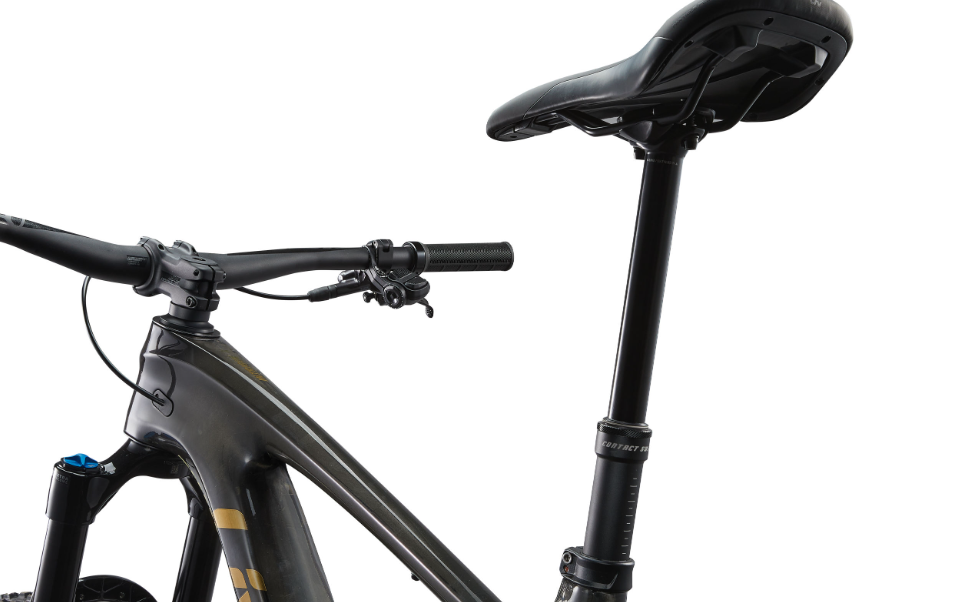

Seatpost |
Giant Contact Switch, adjustable dropper, remote XS:140-170mm travel / 30.9 x 470mm, S:140-170mm travel / 30.9 x 470mm, M:170-200mm travel / 30.9 x 530mm, L:170-200mm travel / 30.9 x 530mm |
|
Grips |
Liv Tactal Pro Single Lock-on XS/S:120mm, M/L:130mm |
|
Front Hub |
Giant MTB alloy, 6-bolt |
|
Rear Hub |
Giant MTB alloy, 3-pawl driver, 6-bolt |
|
Rims |
Giant TRX carbon WheelSystem, 30mm rim inner width XS/S: [F]29, [R]27.5 M/L: [F]29, [R]29 |
|
Spokes |
Sapim |
|
Pedals |
Platform |
|
Exterior Features |
3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5" |
|
Weight |
13.75 kg (30 lbs 5 oz) - Size S |
