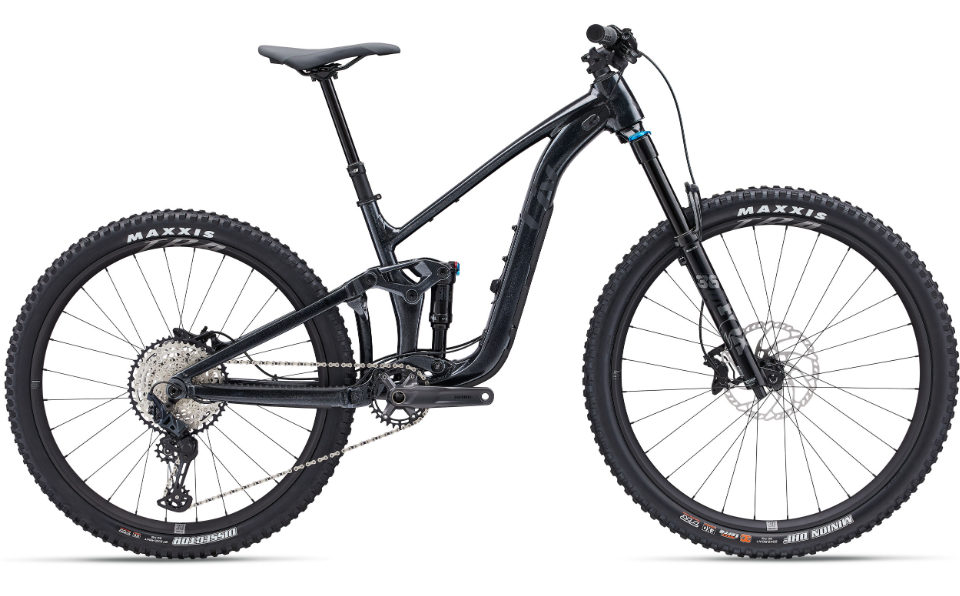

2024 Liv Intrigue X 1 – Women's Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue X 1 |
|
Vehicle Category |
Women's Mountain Bike |
|
Application |
Trail riding and singletrack for women |
|
Starting Price (2025) |
$3,800 USD |
|
Color Options |
Gloss Black Diamond/Matte Black |
|
Sizes |
XS (4'11" - 5'4", MX), S (5'2" - 5'7", MX), M (5'5" - 5'9", 29"), L (5'7" - 5'11", 29") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage |
|
Fork |
Fox 36 Float Performance, 150mm, Grip damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
|
Rear Shock |
Fox Float Performance, 185x52.5, custom tuned for Liv |
|
Crank |
Shimano MT512-1, 30t, 55mm chainline, XS:165mm, S:170mm, M:170mm, L:170mm |
|
Chain |
KMC X12 |
|
Bottom Bracket |
Shimano, press fit |
|
Shifters |
Shimano SLX M7100, 1x12 |
|
Rear Derailleur |
Shimano SLX M7100, Shadow + |
Components & Features
|
Specification |
Details |
|
Seating |
Liv Sylvia |
|
Cargo Capacity |
Integrated down tube storage bag, frame mounts for compact gear bag, water bottle cage mounts |
|
Wheels/Tyres |
[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless (XS, S, M, L); [R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless (XS, S); [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless (M, L) |
|
Wheel Size |
XS, S: 29" (F), 27.5" (R); M, L: 29" (F, R), 27.5" (R) compatible |
|
Brakes |
Shimano BR-MT520, hydraulic, Shimano RT-66 [F]203mm, [R]180mm |
|
Brake Levers |
Shimano BL-MT501 |
|
Handlebar |
Giant Contact TR35, 20mm rise, alloy, XS:760mm, S:760mm, M:760mm, L:780mm |
|
Stem |
Giant Contact SL, 35mm, XS:40mm, S:50mm, M:50mm, L:50mm |
|
Headset |
Giant integrated |
|
Saddle |
Liv Sylvia |
|
Seatpost |
Giant Contact Switch, adjustable dropper, remote, XS:140-170mm travel / 30.9 x 470mm, S:140-170mm travel / 30.9 x 470mm, M:170-200mm travel / 30.9 x 530mm, L:170-200mm travel / 30.9 x 530mm |
|
Grips |
Liv Tactal Pro Single Lock-on, XS/S:120mm, M/L:130mm |
|
Front Hub |
Alloy, open-race sealed bearings |
|
Rear Hub |
Alloy, open-race sealed bearings |
|
Rims |
Giant TR alloy WheelSystem, 30mm rim inner width, XS/S: [F]29", [R]27.5", M/L: [F]29", [R]29" |
|
Spokes |
Sapim |
|
Pedals |
Platform |
|
Exterior Features |
3M tailgate protector, tubeless prepared, integrated down tube storage bag, frame mounts for compact gear bag, water bottle cage mounts, max tire size 2.5", max chainring size 34t |
|
Weight |
14.91 kg (32 lbs 14 oz) - Size XS |
