2023 Liv Intrigue LT Advanced Pro 0

Images:

Specifications

Specification	Details
Frame	Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage
Fork	Fox 36 Factory Live Valve, 160mm, FIT4 damper, Boost, 15x110, Kabolt, tapered, 44mm offset

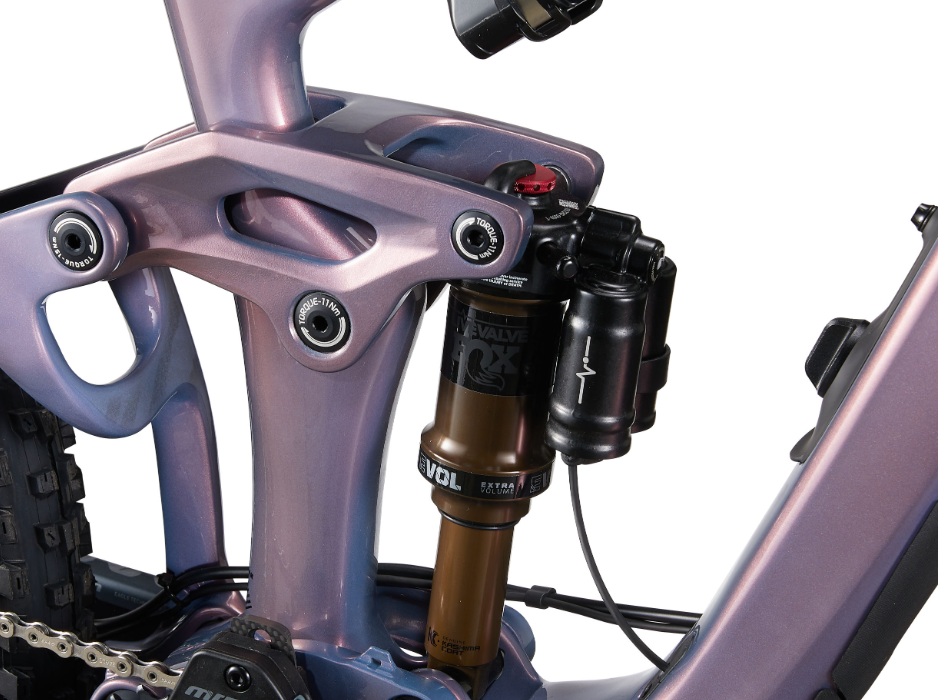

Rear Shock	Fox Factory Live 185x55, custom tuned for Liv
Crankset	SRAM XX1 Eagle DUB, 30t, 55mm chainline XS:165mm, S:170mm, M:170mm, L:170mm
Chain	SRAM X01 Eagle
Bottom Bracket	SRAM DUB, press fit
Shifters	SRAM AXS Rocker, 1x12
Rear Derailleur	SRAM XX1 Eagle AXS

Specification	Details
Seating	Liv Sylvia
Cargo Capacity	Integrated down tube storage bag
Wheels/Tyres	[XS, S, M, L, F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [XS, S, R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless [M, L, R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Wheel Size	XS, S: 29" (F) / 27.5" (R), M, L: 29" (F/R) or 27.5" (R)
Brakes	Shimano XTR M9120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers	Shimano XTR, BL-M9100
Handlebar	Giant Contact SLR TR35, composite, 35mm, 20mm rise XS:760mm, S:760mm, M:760mm, L:780mm
Stem	Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm
Headset	Threadless, integrated
Saddle	Liv Sylvia
Seatpost	TranzX travel-adjustable dropper, remote XS:120-150mm travel / 30.9 x 459mm, S:120-150mm travel / 30.9 x 459mm, M:140-170mm travel / 30.9 x 499mm, L:140-170mm travel / 30.9 x 499mm
Grips	Liv Tactal Pro Single Lock-On XS and S:110mm, M and L:120mm
Front Hub	Zipp 3ZERO MOTO
Rear Hub	Zipp 3ZERO MOTO
Rims	Zipp 3ZERO MOTO XS and S: [F]29"", [R]27.5"", M and L: [F]29"", [R]29""
Spokes	Zipp 3ZERO MOTO
Pedals	Platform
Exterior Features	MRP AMg V2 chainguide, tubeless prepared, integrated down tube storage bag, 3M tailgate protector
Weight	13.23 kg (29 lbs 3 oz)

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
