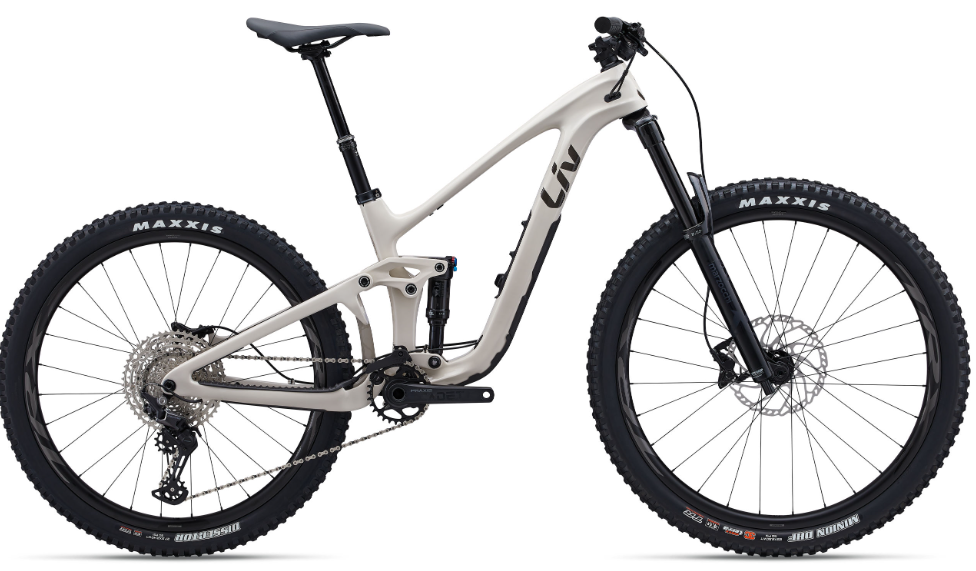

2024 Liv Intrigue LT Advanced 2 – Trail Mountain Bike

Images:

Specifications

Specification	Details

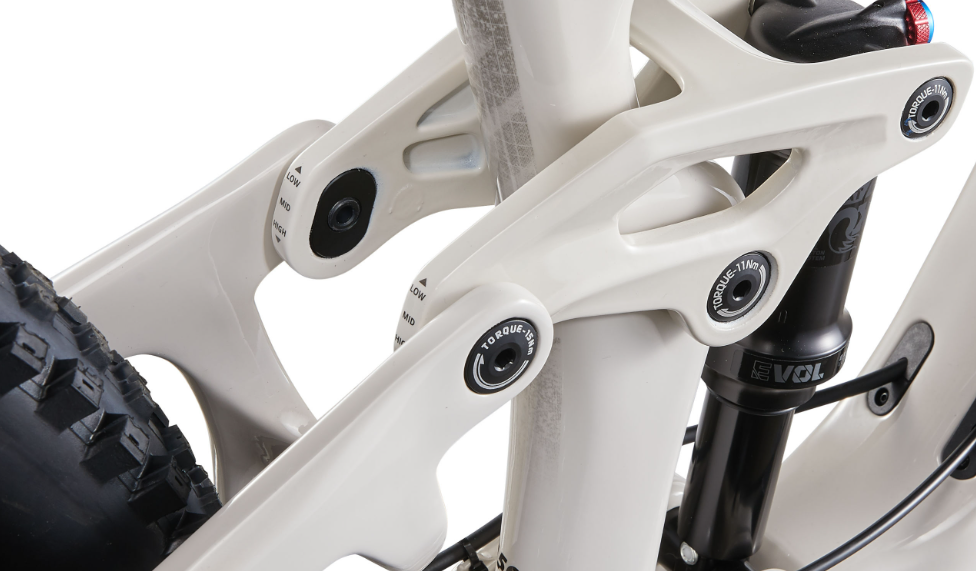

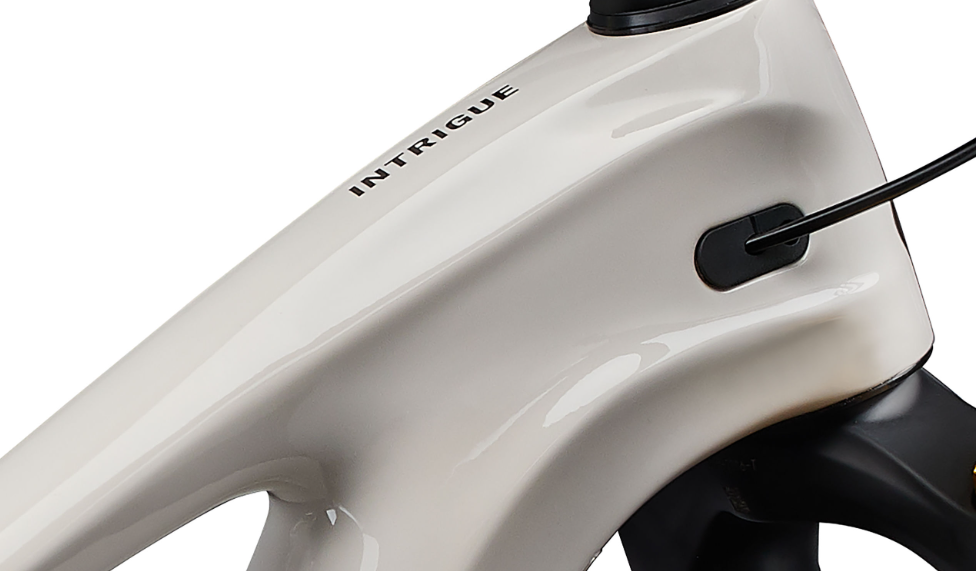

Frame	Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage
Fork	Marzocchi Bomber Z1, 160mm, Rail damper, Boost 15x110 Kabolt, tapered, 44mm offset

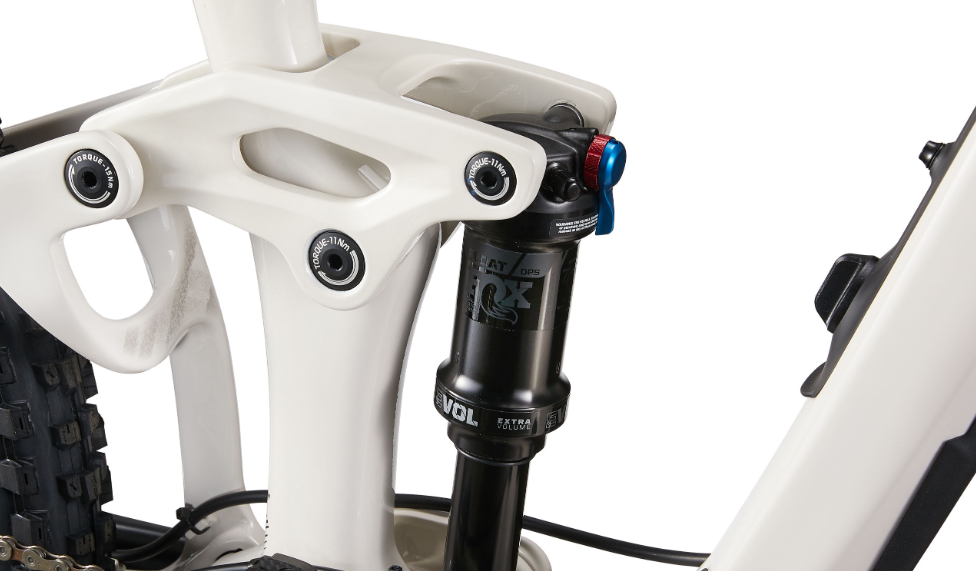

Rear Shock	Fox Float Performance 185x55, custom tuned for Liv
Crankset	Praxis Cadet, steel chain ring 30t, 52mm chainline S:170mm, M:170mm, L:170mm
Chain	KMC X12
Bottom Bracket	Praxis, press fit
Shifters	Shimano Deore, 1x12
Rear Derailleur	Shimano Deore, Shadow +

Specification	Details
Seating	Liv Sylvia

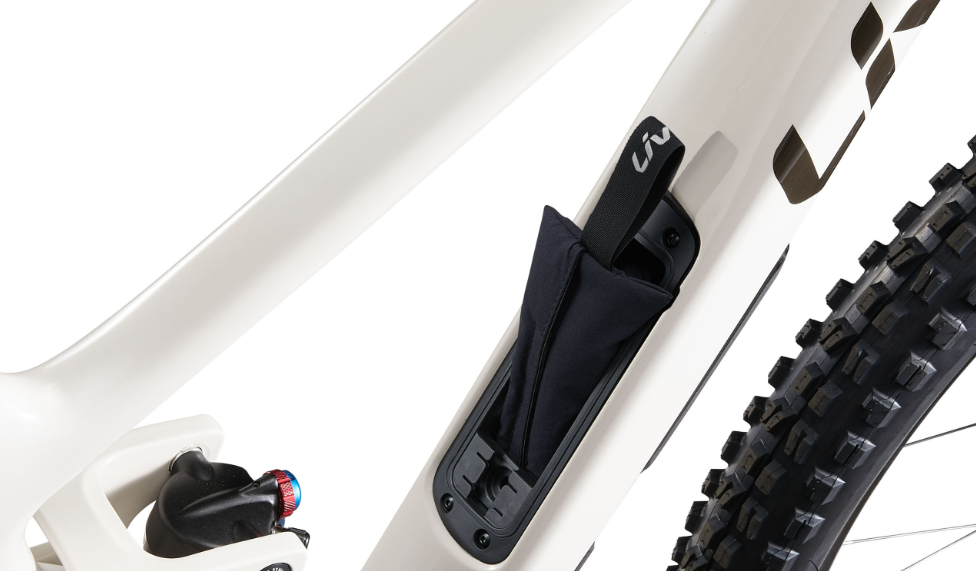

Cargo Capacity	Integrated down tube storage bag
Wheels/Tyres	[XS, S, M, L, F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [XS, S, R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless [M, L, R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Wheel Size	XS, S: 29" (F) / 27.5" (R), M, L: 29" (F/R) or 27.5" (R)
Brakes	Shimano BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers	Shimano BL-MT401
Handlebar	Giant Contact TR35, alloy, 35mm, 20mm rise XS:760mm, S:760mm, M:760mm, L:780mm
Stem	Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm
Headset	Threadless, integrated
Saddle	Liv Sylvia
Seatpost	TranzX travel-adjustable dropper, remote XS:125mm travel / 30.9 x 390mm, S:120-150mm travel / 30.9 x 390mm, M:150mm travel / 30.9 x 440mm, L:150mm travel / 30.9 x 440mm
Grips	Liv Tactal Pro Single Lock-On XS/S:120mm, M/L:130mm
Front Hub	Giant MTB alloy, 6-bolt
Rear Hub	Giant MTB alloy, 3-pawl driver, 6-bolt
Rims	Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F]29, [R]27.5 M/L: [F]29, [R]29
Spokes	Sapim
Pedals	Platform
Exterior Features	MRP 1259-HD2CS-0001 chain guide, 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5"
Weight	14.25 kg (31 lbs 6 oz) - Size L
