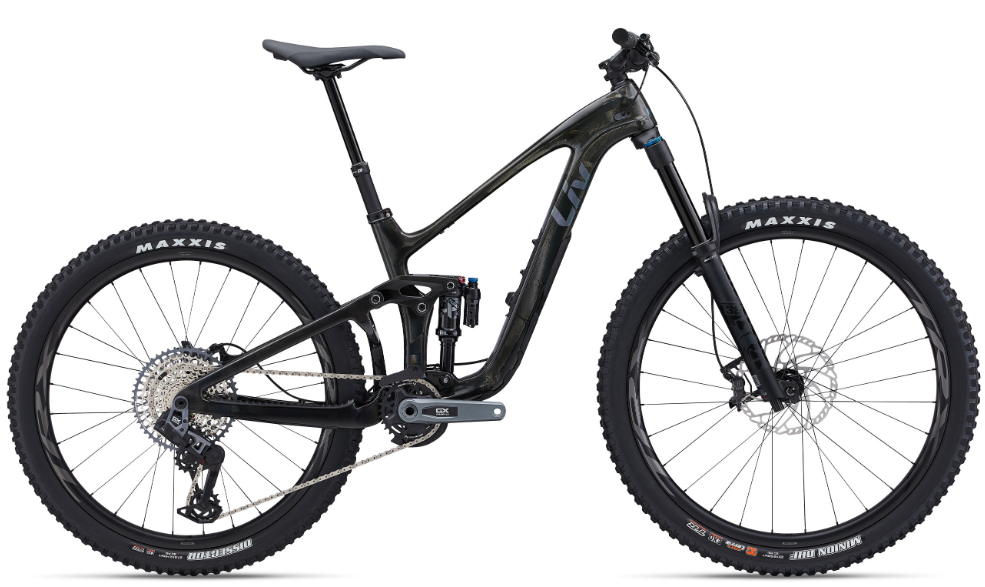

2024 Liv Intrigue LT Advanced 1 – Women's Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue LT Advanced 1 |
|
Vehicle Category |
Women's Mountain Bike |
|
Application |
Trail riding, singletrack, and enduro for women |
|
Starting Price (2025) |
$5,499 USD |
|
Color Options |
Raw Carbon |
|
Sizes |
XS (4'11" - 5'4", MX), S (5'2" - 5'7", MX), M (5'5" - 5'9", 29"), L (5'7" - 5'11", 29") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

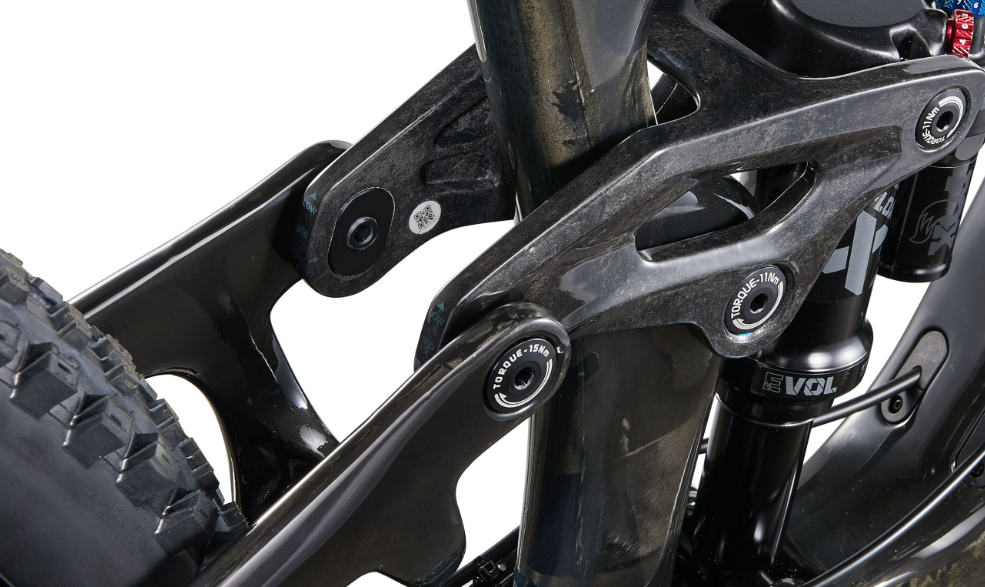

Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage |
|
Fork |
Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost 15x110 Kabolt, tapered, 44mm offset |
|
Rear Shock |

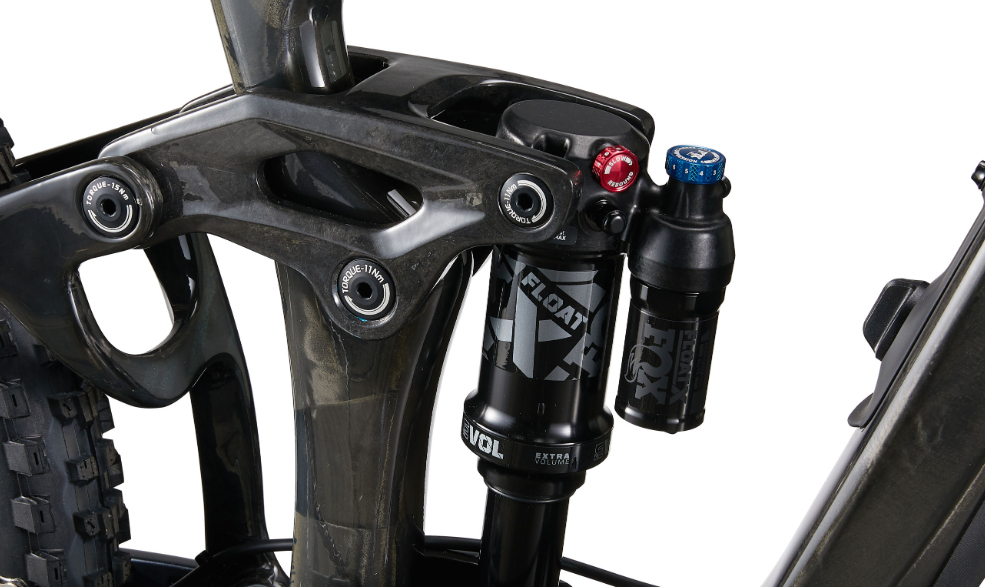

Fox Float X Performance Elite, 185x55, custom tuned for Liv |
|
Crank |

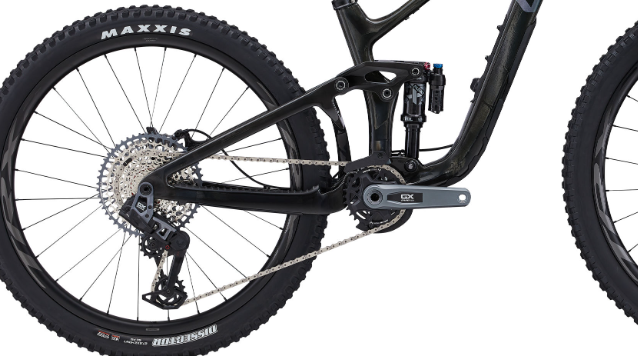

SRAM GX T-Type, 30t, 55mm chainline, XS:165mm, S:170mm, M:170mm, L:170mm |
|
Chain |
SRAM GX T-Type |
|
Bottom Bracket |
SRAM DUB, press fit |
|
Shifters |
SRAM AXS, 1x12 |
|
Rear Derailleur |
SRAM GX T-Type |
Components & Features
|
Specification |
Details |
|
Seating |
Liv Sylvia |
|
Cargo Capacity |

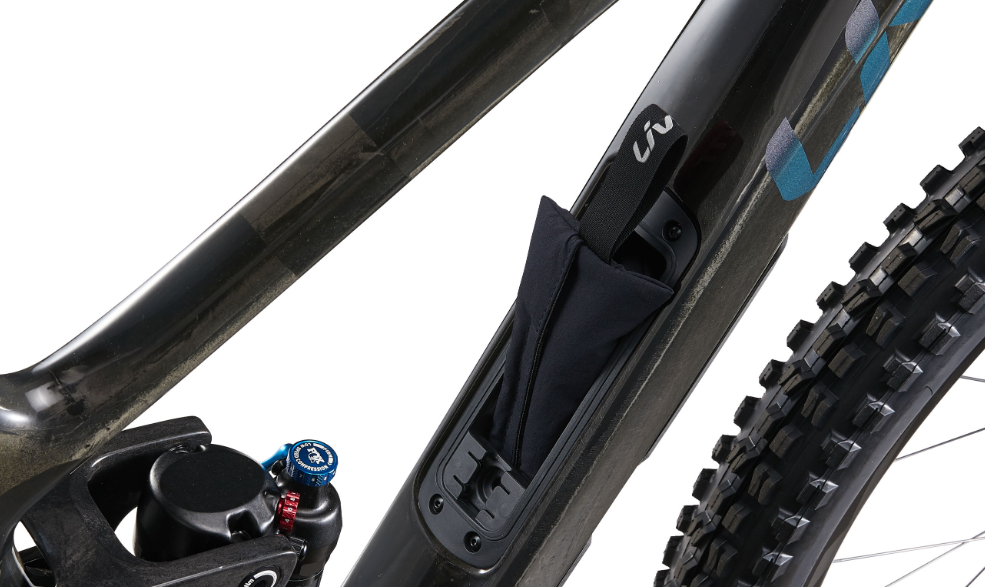

Integrated down tube storage bag |
|
Wheels/Tyres |
[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless (XS, S, M, L); [R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless (XS, S); [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless (M, L) |
|
Wheel Size |
XS, S: 29" (F), 27.5" (R); M, L: 29" (F, R), 27.5" (R) compatible |
|
Brakes |
Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
|
Brake Levers |
Shimano XT BL-M8100 |
|
Handlebar |
Giant Contact SLR TR35, composite, 20mm rise, 35mm, XS:760mm, S:760mm, M:760mm, L:780mm |
|
Stem |
Giant Contact SL, 35mm, XS:40mm, S:50mm, M:50mm, L:50mm |
|
Headset |
Giant integrated |
|
Saddle |
Liv Sylvia |
|
Seatpost |
TranzX travel-adjustable dropper, remote, XS:125mm travel / 30.9 x 390mm, S:120-150mm travel / 30.9 x 390mm, M:150mm travel / 30.9 x 440mm, L:150mm travel / 30.9 x 440mm |
|
Grips |
Liv Tactal Pro Single Lock-On, XS/S:120mm, M/L:130mm |
|
Front Hub |
Giant MTB alloy, 6-bolt |
|
Rear Hub |
Giant MTB alloy, 3-pawl driver, 6-bolt |
|
Rims |
Giant TRX 2 Carbon WheelSystem, 30mm inner width, XS/S: [F]29", [R]27.5", M/L: [F]29", [R]29" |
|
Spokes |
Sapim |
|
Pedals |
Platform |
|
Exterior Features |
MRP 1259-HD2CS-0001 chain guide, 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5", max chainring size 32t |
|
Weight |
13.47 kg (29 lbs 11 oz) - Size XS |
