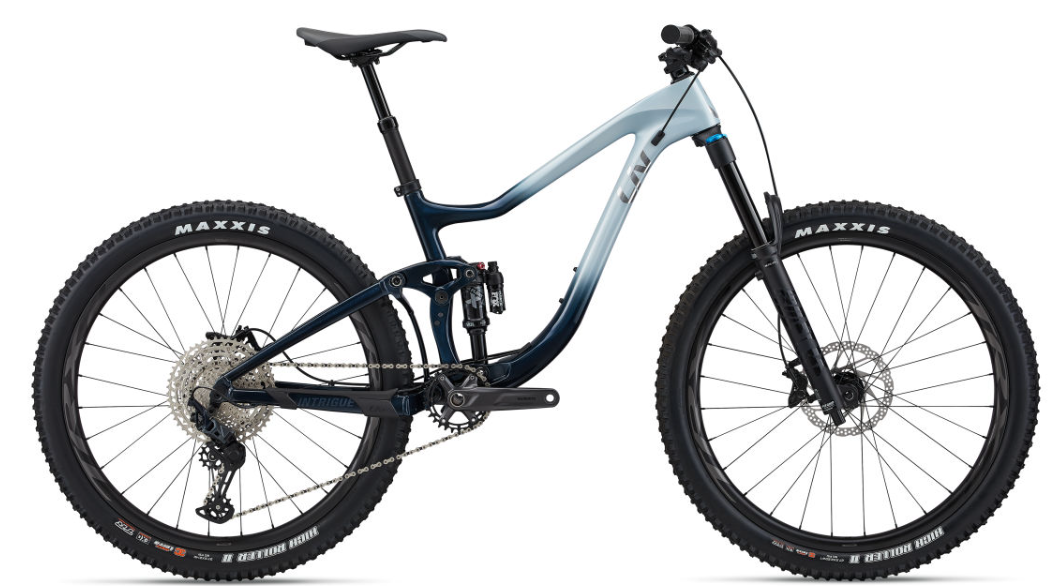

2022 Liv Intrigue Advanced – Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue Advanced |
|
Vehicle Category |
Trail Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$2,399 USD |
|
Color Options |
Nordic Breeze / Cosmos Navy/Chrome |
|
Sizes |
XS, S, M, L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Advanced-Grade Composite front triangle, 140mm Maestro Suspension, ALUXX-SL rear triangle |
|
Fork |
Fox 36 Float Performance, 150mm, GRIP damper, Boost, 15x110, tapered, 44mm offset, custom tuned for Liv |
|
Rear Shock |
Fox Float X Performance 185/52.5, custom tuned for Liv |
|
Crankset |
Shimano Deore, 30t XS:165mm, S:170mm, M:170mm, L:170mm |
|
Chain |
KMC X-12 |
|
Bottom Bracket |
Shimano, press fit |
|
Shifters |
Shimano SLX, 1x12 |
|
Rear Derailleur |
Shimano SLX |
Components & Features
|
Specification |
Details |
|
Seating |
Liv Sylvia |
|
Wheels/Tyres |
[F] Maxxis High Roller 27.5x2.5WT, 3C, EXO, TR, tubeless [R] Maxxis High Roller 27.5x2.4WT, 3C, EXO, TR, tubeless |
|
Wheel Size |
27.5" |
|
Brakes |
Shimano BR-MT520, hydraulic, Shimano RT-56 rotors [F]180mm, [R]180mm |
|
Brake Levers |
Shimano MT501 |
|
Handlebar |
Giant Contact TR35, alloy, 35mm XS:760mm, S:760mm, M:760mm, L:780mm |
|
Stem |
Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm |
|
Headset |
Threadless, integrated |
|
Saddle |
Liv Sylvia |
|
Seatpost |
Giant Contact Switch dropper, remote XS:75mm travel / 30.9 x 295mm, S:100mm travel / 30.9 x 345mm, M:100mm travel / 30.9 x 345mm, L:125mm travel / 30.9 x 395mm |
|
Grips |
Liv Supera, single lock ring |
|
Front Hub |
Giant TRX-2 27.5 WheelSystem |
|
Rear Hub |
Giant TRX-2 27.5 WheelSystem |
|
Rims |
Giant TRX-2 27.5 WheelSystem |
|
Spokes |
Giant TRX-2 27.5 WheelSystem |
|
Exterior Features |
Tubeless prepared, max tire size 2.6" |
|
Weight |
13.36 kg (29 lb 8 oz) |
