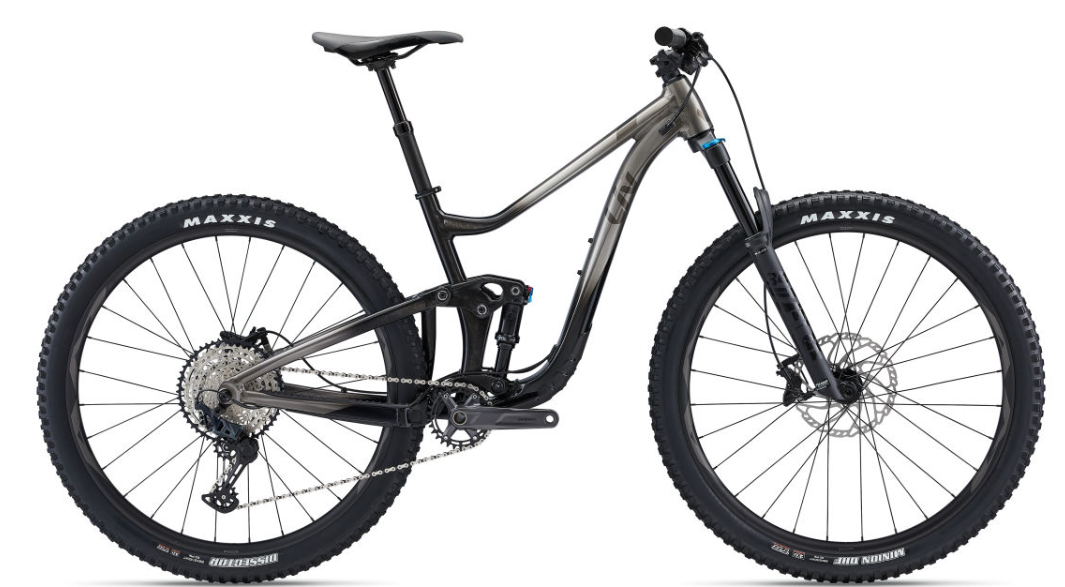

2022 Liv Intrigue 29 1 – Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Intrigue 29 1 |
|
Vehicle Category |
Trail Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$1,399 USD |
|
Color Options |
Smoke Metal / Dark Gray |
|
Sizes |
S, M, L |

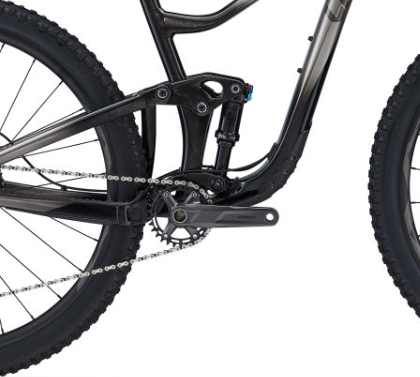

Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX SL-Grade Aluminum front and rear triangles, 125mm Maestro Suspension, flip chip |
|
Fork |
Fox 34 Float Performance, 140mm, GRIP damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv |
|
Rear Shock |
Fox Float DPS Performance, 185/50, custom tuned for Liv |
|
Crankset |
Shimano M511, 30t S:170mm, M:170mm, L:170mm |
|
Chain |
KMC X-12 |
|
Bottom Bracket |
Shimano, press fit |
|
Shifters |
Shimano SLX M7100, 1x12 |
|

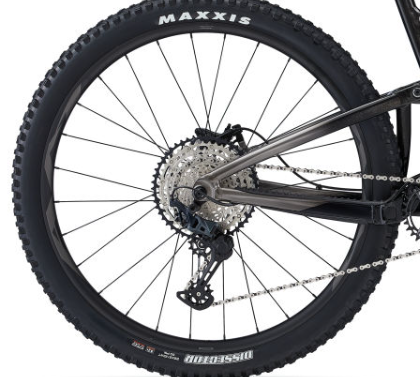

Rear Derailleur |
Shimano SLX M7100 |
Components & Features
|
Specification |
Details |
|
Seating |
Liv Sylvia |
|
Cargo Capacity |
Not specified |
|
Wheels/Tyres |
[F] Maxxis Minion DHF 29x2.5WT, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, EXO, TR, tubeless |
|
Wheel Size |
29" |
|
Brakes |
Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
|
Brake Levers |
Shimano MT501 |
|
Handlebar |
Giant Contact TR35, alloy, 35mm S:760mm, M:760mm, L:780mm |
|
Stem |
Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm |
|
Headset |
Threadless, integrated |
|
Saddle |
Liv Sylvia |
|

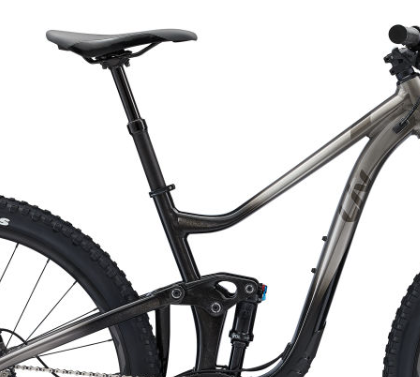

Seatpost |
Giant Contact Switch dropper, remote S:100mm travel / 30.9 x 345mm, M:125mm travel / 30.9 x 395mm, L:150mm travel / 30.9 x 499mm |
|
Grips |
Liv Supera, single lock ring |
|

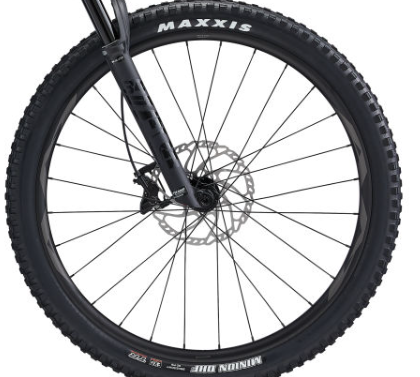

Front Hub |
Alloy 15x110, sealed bearing |
|
Rear Hub |
Alloy 12x148, sealed bearing |
|
Rims |
Giant AM 29, tubeless ready, sleeve-joint, 30mm inner width |
|
Spokes |
Sapim |
|
Exterior Features |
Tubeless prepared, max tire size 2.5" |
|
Weight |
14.76 kg (32 lb 9 oz) - Size L |
