Specification

Details

Tractor Model

Trekker4-105 F/M

Vehicle Category

Specialty Crawler Tractor

Fuel Type

Diesel

Application

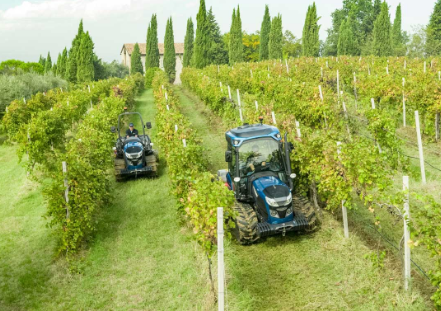

F: Vineyards, Orchards; M: Mountain, Rugged Terrains

Specification

Details

Engine

4 cylinders, 2.9 L, Deutz TCD 2.9 L4 HP, Turbo Aftercooled

Maximum Horsepower

95 HP (70 kW)

Maximum Torque

400 Nm

Transmission Type

Speed Four, 16+8 Hi-Lo Overdrive, Optional 16+8 with Creeper

Clutch

12” Independent Dry Clutch

Specification

Details

Steering System

Hydrostatic Hi-Drive, 2 Independent Levers with Wet Clutches and Brakes

Brake Type

Hydrostatic Wet Multidisc Graphite Brakes

Front Suspension

Leaf Spring

Rear Suspension

Crossbar on Independent Track Frames

Cab Suspension

Suspended on Hydro-Silentblocks

Specification

Details

Track Shoe Type

Metal (Standard), Rubber (Optional, M)

Track Shoe Width

310-360 mm (Metal, F), 400-450 mm (Metal, M), 450 mm (Rubber, M)

Specification

Details

Emissions System

Stage V

Fuel Tank Capacity

80 L (21.1 gal)

PTO Type

Servo-Assisted Dry Clutch, 540/540E RPM (Standard), 540/1000 RPM (Optional), Clockwise, 1-3/8” Shaft with 6 Splines

Hydraulic System

Open-Centre, Twin Pump

Hydraulic Flow (Hitch & Remotes + Steering)

42+28 L/min (Standard), 56+28+28 L/min (Optional)

Max Operating Pressure

180 bar

Remote Valves

3 (Standard), 4 or 5 (Optional)

Rear 3-Point Hitch

Category 2, Fixed Ball Ends (Standard), Quick-Hitch Hooks (Optional), 3150 kg (Standard), 4500 kg with Assistor Rams

Wheelbase

1650 mm (65 in)

Ground Clearance

295 mm (11.6 in)

Overall Width

1410-1492 mm (F, Metal Tracks), 1700-1750 mm (M)

Shipping Weight

3900 kg (F), 4500 kg (M)

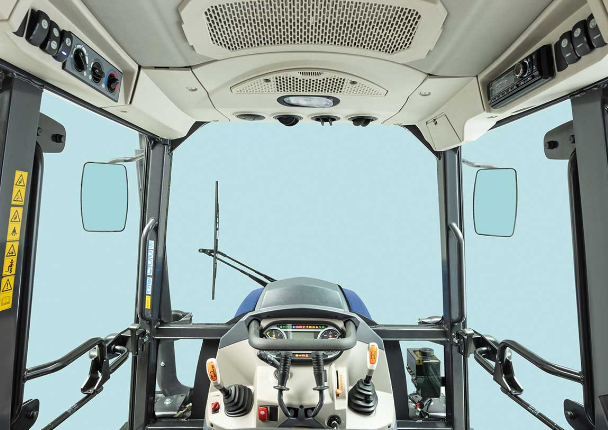

Operator Platform

6-Post High-Visibility Monocoque Cab with Opening Rear Window (Optional) or ROPS with Central Tunnel, Suspended on 4 Hydro Silent Blocks, Manual A/C, Dust Filter (Category 2), Active Carbon Filter (Category 4)
