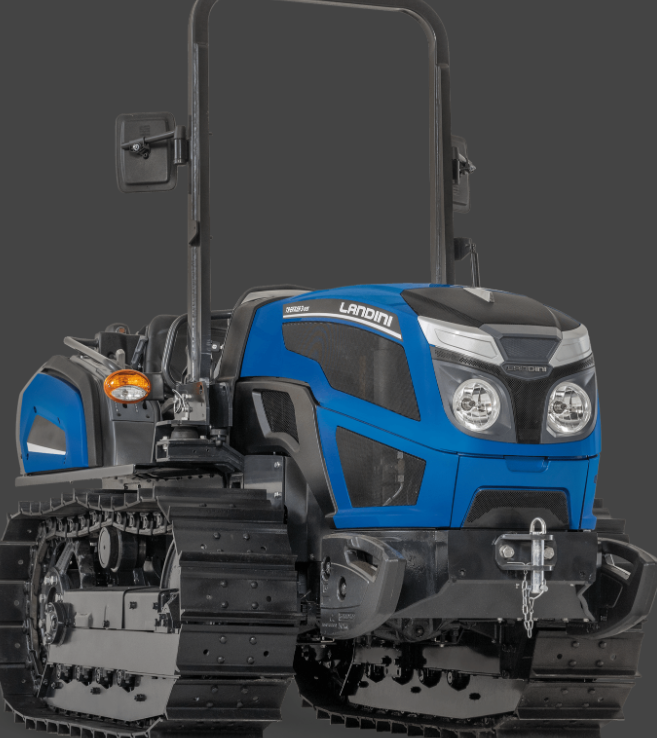

Landini Trekker4-105 – Crawler Tractor for Orchards and Open Fields
Specifications
|
Specification |
Details |
|
Tractor Model |
Trekker4-105 (F/M) |
|
Vehicle Category |
Crawler Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards (F); Open Field, Hillside (M) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
95 HP (70 kW) Max at 1900 RPM |
|
Engine Type |
Deutz AG TCD 2.9 L4 HP (4-cylinder, Turbo Aftercooled, 8 valves) |
|
Engine Capacity |
2900 cm³ |
|
Engine Speed at Rated Power |
2200 RPM |
|
Transmission Type |
Speed Four (16F/8R with Hi-Lo Overdrive or Creeper, 12-15 km/h max, 300 m/h min with Creeper) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Leaf Spring |
|
Rear Suspension |
Crossbar on Independent Track Frames |
|
Cab/Platform Suspension |
Hydro-Silent Blocks |
Wheels & Tyres
|
Specification |
Details |
|
Track Shoe Type |
Steel (Standard); Rubber (Optional for M) |
|
Track Shoe Width |
310-360 mm (F, Steel); 400-450 mm (M, Steel); 450 mm (M, Rubber) |
Components & Features
|
Specification |
Details |
|
Drive |
Crawler (Hydrostatic Hi-Drive) |
|
Rear PTO |
540/540E (Standard); 540/1000 (Optional) |
|
Hydraulics Type |
Open Centre, Triple Pump |
|
Hydraulic Pump |
42 l/min + 28 l/min (Standard); 56 l/min + 28 l/min + 28 l/min (Optional) |
|
Max Valves (Rear) |
3 (Standard); 4 or 5 (Optional) |
|
Max Lift Capacity (Rear) |
3150 kg (Standard); 4500 kg (Optional with Assistor Rams) |
|
Wheelbase |
1650 mm |
|
Ground Clearance |
340 mm |
|
Overall Width |
1410-1460 mm (F); 1700-1750 mm (M) |
|
Overall Height |
2400 mm (ROPS); 1355 mm (Bonnet) |
|
Overall Length |
3380 mm (Without Front Weights) |
|
Total Weight |
3900 kg (F); 4500 kg (M) |
|
Fuel Tank Capacity |
80 L |
|
DEF Capacity |
10.5 L |
|
Emissions Compliance |
Stage V (DOC + DPF + SCR + AdBlue) |
