Landini Trekker4-095 F/M – Specialty Crawler Tractor for Vineyards and Rugged Terrains
Specifications
|
Specification |
Details |
|
Tractor Model |
Trekker4-095 F/M |
|
Vehicle Category |
Specialty Crawler Tractor |
|
Fuel Type |
Diesel |
|
Application |
F: Vineyards, Orchards; M: Mountain, Rugged Terrains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2.9 L, Deutz TCD 2.9 L4 HP, Turbo Aftercooled |
|
Maximum Horsepower |
90 HP (66 kW) |
|
Maximum Torque |
378 Nm |
|
Transmission Type |
Speed Four, 16+8 Hi-Lo Overdrive, Optional 16+8 with Creeper |
|
Clutch |
12” Independent Dry Clutch |
Suspension & Brakes
|
Specification |
Details |
|
Steering System |
Hydrostatic Hi-Drive, 2 Independent Levers with Wet Clutches and Brakes |
|
Brake Type |
Hydrostatic Wet Multidisc Graphite Brakes |
|
Front Suspension |
Leaf Spring |
|
Rear Suspension |
Crossbar on Independent Track Frames |
|
Cab Suspension |
Suspended on Hydro-Silentblocks |
Tracks
|
Specification |
Details |
|
Track Shoe Type |
Metal (Standard), Rubber (Optional, M) |
|
Track Shoe Width |
310-360 mm (Metal, F), 400-450 mm (Metal, M), 450 mm (Rubber, M) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V |
|
Fuel Tank Capacity |
80 L (21.1 gal) |
|
PTO Type |
Servo-Assisted Dry Clutch, 540/540E RPM (Standard), 540/1000 RPM (Optional), Clockwise, 1-3/8” Shaft with 6 Splines |
|
Hydraulic System |
Open-Centre, Twin Pump |
|
Hydraulic Flow (Hitch & Remotes + Steering) |
42+28 L/min (Standard), 56+28+28 L/min (Optional) |
|
Max Operating Pressure |
180 bar |
|
Remote Valves |
3 (Standard), 4 or 5 (Optional) |
|
Rear 3-Point Hitch |
Category 2, Fixed Ball Ends (Standard), Quick-Hitch Hooks (Optional), 3150 kg (Standard), 4500 kg with Assistor Rams |
|
Wheelbase |
1650 mm (65 in) |
|
Ground Clearance |
295 mm (11.6 in) |
|
Overall Width |
1410-1492 mm (F, Metal Tracks), 1700-1750 mm (M) |
|
Shipping Weight |
3900 kg (F), 4500 kg (M) |
|

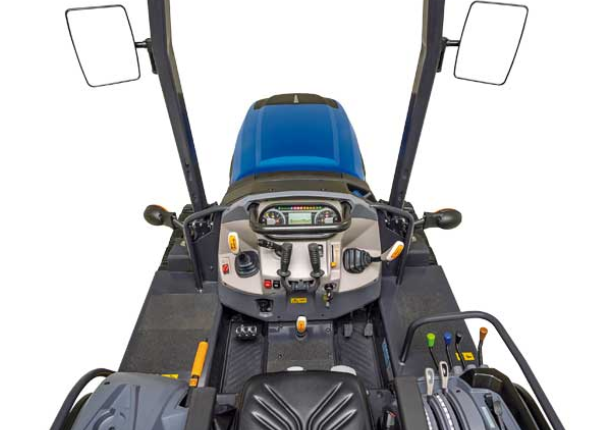

Operator Platform |
6-Post High-Visibility Monocoque Cab with Opening Rear Window (Optional) or ROPS with Central Tunnel, Suspended on 4 Hydro Silent Blocks, Manual A/C, Dust Filter (Category 2), Active Carbon Filter (Category 4) |
