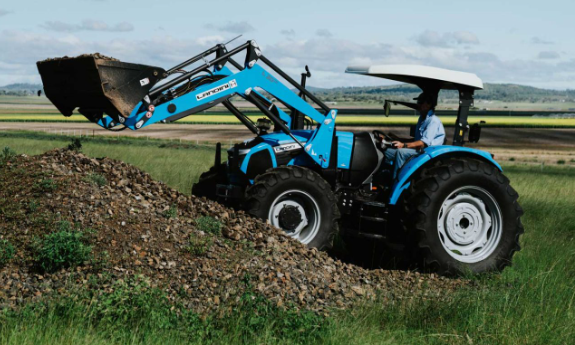

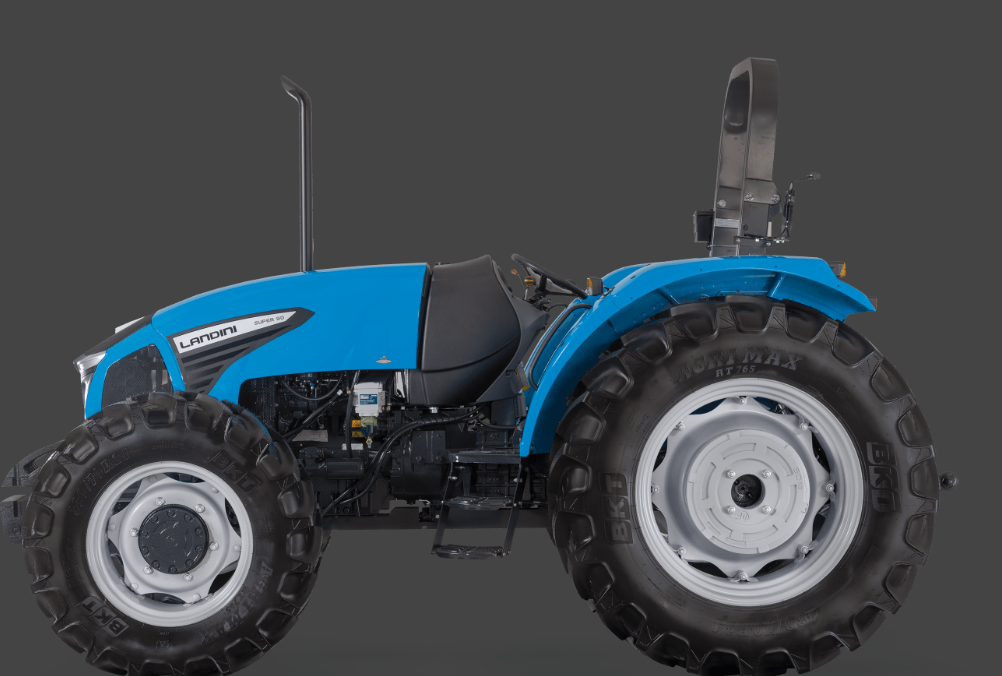

Landini Super 100 – Utility Tractor for General Agricultural Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Super 100 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Agricultural Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.4 L, Perkins, Turbo Aftercooled, Tier 3 |
|
Maximum Horsepower |
92.5 HP (68 kW) @ 1400 RPM |
|
Maximum Torque |
393 Nm @ 1400 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV with Synchro Shuttle (Standard), Electrohydraulic, 12 FWD + 12 REV with RPS, Modulation Control & De-clutch (Optional) |
|
Minimum Speed with Creeper |
340 m/h |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD without Hydralock without Brakes (Standard), 4WD with Hydralock without Brakes with Paddy Seals (Optional), 4WD with Hydralock without Brakes (Optional) |
|
Rear Axle |
Mechanical Differential Lock (Standard), Electrohydraulic Differential Lock (Optional) |
|
Braking System |
Ramp Brakes (Rear), Without Front Brakes, Trailer Braking System EEC Export Version |
|
Platform Suspension |
ROPS with Mechanical Seat (Standard), Rigid Sun Roof (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres Rear |
18.4 R34 (IR 775 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3, No After-Treatment |
|
Fuel Tank Capacity |
95 L (25.1 gal) |
|
Fuel Filtration System |
Fuel Filter with Pre-Filter (Standard), Fuel Filter with Water Separator (Optional) |
|
Air Filter |
Power Core |
|
PTO Type |
Mechanical, 540/1000 RPM (Standard), 540/540E RPM (Optional), Ground Speed PTO |
|
Hydraulic System |
54+24 L/min (Synchro Shuttle), 54+30 L/min (RPS, Optional), 1 to 2 Mechanical Remote Valves |
|
Rear 3-Point Hitch |
Category II, Mechanical Control, 2980 kg (Standard), 5080 kg with Twin Assistor Rams (Optional), Fixed Ball Ends (Optional), Quick-Hitch Hooks (Optional) |
|
Wheelbase |
2340 mm (4WD) |
|
Max Height |
2615 mm (with Tyres IR 750) |
|
Shipping Weight |
3500 kg (7716 lb) |
|
Gross Vehicle Weight |
5350 kg (11795 lb) |
|
Operator Platform |
ROPS with Mechanical Seat (Standard), Rigid Sun Roof (Optional) |
