Landini Serie 7-240 V-Shift – Heavy-Duty Utility Tractor for Field and Loader Work

Images:

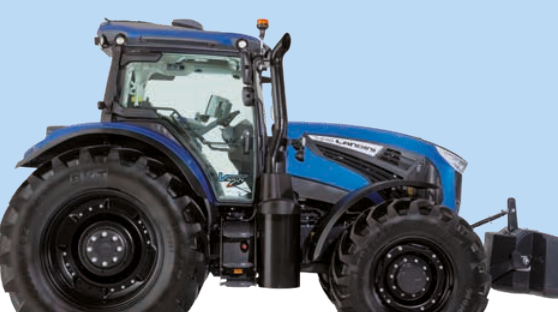

1

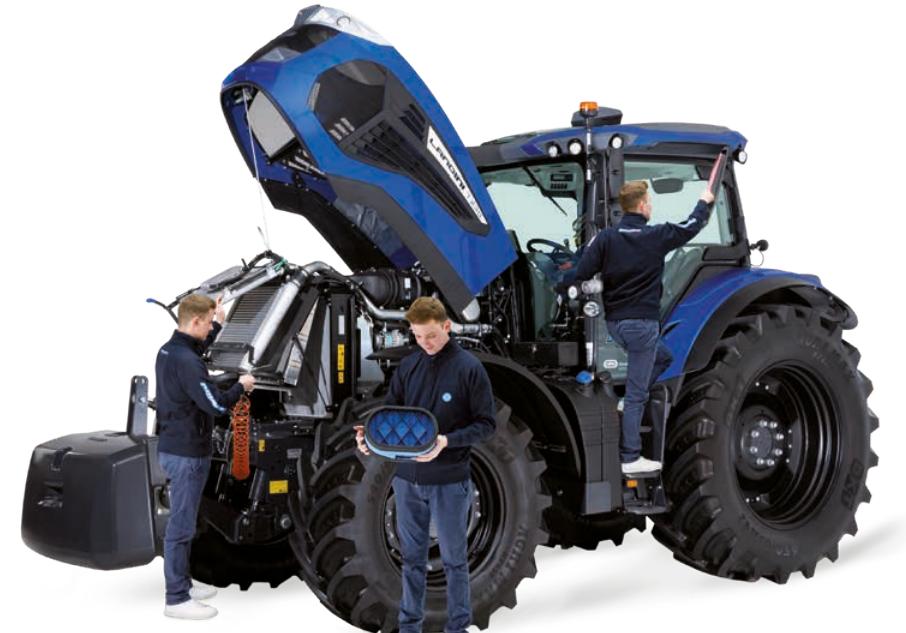

2

Specifications

Specification	Details
Tractor Model	Serie 7-240 V-Shift
Vehicle Category	Heavy-Duty Utility Tractor
Fuel Type	Diesel
Application	Ploughing, Harrowing, Sowing, Planting, Harvesting, Loader Work

Frame & Drivetrain

Specification	Details
Engine Power	219 HP (161 kW) Rated, 230 HP (169 kW) Max, 240 HP (176 kW) Max with Dual Power at 1900 RPM
Engine Type	FPT NEF 67 (6-cylinder, Turbo Intercooled, 24 valves, Iso-mounted on Cast Iron Chassis)
Engine Capacity	6700 cm³
Engine Speed at Rated Power	2200 RPM
Transmission Type	V-Shift (Continuously Variable, 0.04 km/h min)

Suspension & Brakes

Specification	Details
Front Suspension	IFS (Independent Front Wheels Suspension, Optional); Rigid (Standard)
Cab Suspension	Iso-mounted (Standard); Mechanical or Electro-Hydraulic Semi-Active (Optional)

Wheels & Tyres

Specification	Details
Front Tyres (Standard)	600/60R30
Standard Tyres Rear	710/60R42

Components & Features

Specification	Details
Drive	Electro-Hydraulic MFWD (Auto Engagement on Braking)
Rear PTO	540/540E/1000/1000E (2005/1608/1995/1600 RPM)
Front PTO	1000 RPM (Optional, Electro-Hydraulic Multidisc)
Hydraulics Type	Closed-Centre Load Sensing (CCLS)
Hydraulic Pump	123 l/min (Standard); 160 l/min (Optional); 44 l/min (Steering)
Max Valves (Rear)	3-6 (Electro-Hydraulic, 100 l/min)
Max Valves (Mid-Mount)	2 (Electro-Hydraulic, 100 l/min)
Max Lift Capacity (Rear)	9300 kg
Max Lift Capacity (Front)	3500 kg (Optional)
Wheelbase	2820 mm
Steering Radius	5400 mm
Overall Width	2550 mm
Overall Height	3044 mm (Cab without Beacon); 3159 mm (with PSM); 2180 mm (Rear Axle to Cab Roof); 2295 mm (with PSM)
Overall Length	5360 mm (with Front Weights)
Total Weight	8300 kg; 13000 kg (Gross Vehicle Weight)
Fuel Tank Capacity	350 L
DEF Capacity	52 L
Emissions Compliance	Stage V / Tier 4 Final (HI-eSCR2)

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
