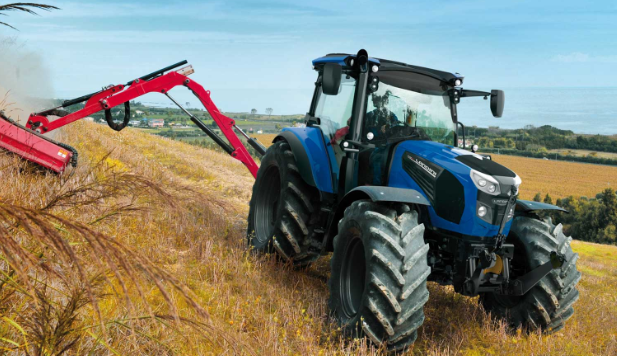

Landini Serie 6RS-135 – Heavy-Duty Utility Tractor for Field and Loader Work
Specifications
|
Specification |
Details |
|
Tractor Model |
Serie 6RS-135 |
|
Vehicle Category |
Heavy-Duty Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Ploughing, Harrowing, Sowing, Planting, Harvesting, Loader Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
113 HP (83 kW) Rated, 123 HP (91 kW) Rated with EPM; 125 HP (92 kW) Max, 135 HP (100 kW) Max with EPM at 1800 RPM |
|
Engine Type |

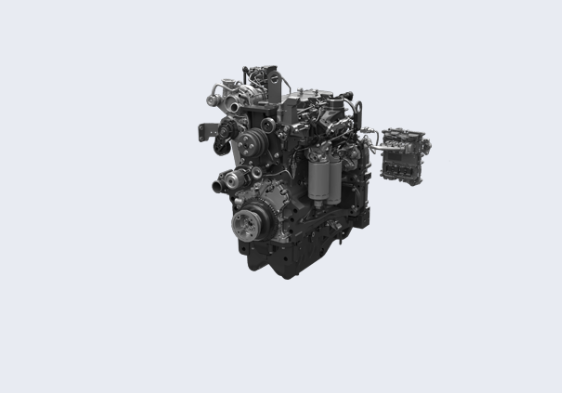

FPT NEF 45 (4-cylinder, Turbo Intercooled, 16 valves) |
|
Engine Capacity |
4500 cm³ |
|
Engine Speed at Rated Power |
2200 RPM |
|
Transmission Type |
Robo-Six (24F/24R, 2.4 km/h min; 40F/40R with Creeper, 0.38 km/h min) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
IFS (Independent Front Wheel Suspension, Optional); Rigid (Standard) |
|
Cab Suspension |
Silent Blocks (Standard); Mechanical Suspension (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
480/65R28 |
|
Standard Tyres Rear |
600/65R38 |
Components & Features
|
Specification |
Details |
|
Drive |
4WD (Electro-Hydraulic Engagement) |
|
Rear PTO |
540/540E (1944/1581 RPM); Optional: 540/1000, 540/540E/1000/1000E, Ground Speed PTO |
|
Front PTO |
1000 RPM (Optional, Electrohydraulic Multidisc Clutch) |
|
Hydraulics Type |
Closed-Centre Load Sensing (CCLS) |
|
Hydraulic Pump |
114 l/min (Hitch & Remotes) |
|
Max Valves (Rear) |
3 (Mechanical, 80 l/min); Optional: 3 Mechanical + 2 Electrohydraulic or 5 Electrohydraulic (100 l/min) |
|
Max Valves (Mid-Mount) |
2 (Electrohydraulic, 100 l/min) |
|
Max Lift Capacity (Rear) |
7200 kg |
|
Max Lift Capacity (Front) |
2500 kg |
|
Wheelbase |
2560 mm |
|
Steering Radius |
5400 mm |
|
Overall Width |
2550 mm |
|
Overall Height |
2880 mm (Cab without Beacon); 2999 mm (with PSM); 2101 mm (Cab Roof to Rear Axle); 2220 mm (with PSM) |
|
Overall Length |
5360 mm (with Front Weights) |
|
Total Weight |
5500 kg; 9500 kg (Gross Vehicle Weight) |
|
Fuel Tank Capacity |
220 L |
|
DEF Capacity |
23 L |
|
Emissions Compliance |
Stage V / Tier 4 Final (HI-eSCR2) |
