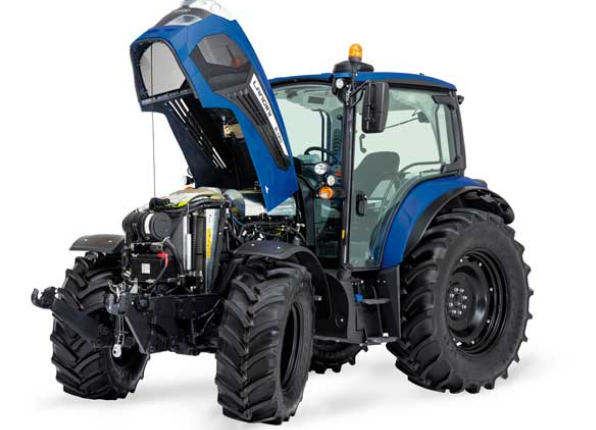

Landini Serie 5-120 – Utility Tractor for Soil Preparation and Livestock Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Serie 5-120 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Soil Preparation, Sowing, Haymaking, Livestock Tasks, Transport |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
114 HP (84 kW) Rated and Max at 1900 RPM |
|
Engine Type |
FPT F36 (4-cylinder, Turbo Aftercooled, 16 valves) |
|
Engine Capacity |
3600 cm³ |
|
Engine Speed at Rated Power |
2200 RPM |
|
Transmission Type |
Speed Four (12F/12R, 1.5 km/h min); Power Four (24F/24R with Hi-Lo, 1.35 km/h min); T-Tronic (36F/12R with HML, 0.3 km/h min with Creeper); RoboShift (36F/12R with HML, 0.3 km/h min with Creeper) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Suspended (Optional, Dynamic Version); Rigid (Standard) |
|
Cab/Platform Suspension |
Silent Blocks (Standard); Mechanical Suspension (Optional, Dynamic Version) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
380/70R24 |
|
Standard Tyres Rear |
480/70R34 |
Components & Features
|
Specification |
Details |
|
Drive |
4WD (Electro-Hydraulic Engagement) |
|
Rear PTO |
540/540E (1944/1377 RPM); Optional: 540/1000, 540/540E/1000/1000E, Ground Speed PTO |
|
Front PTO |
1000 RPM (Optional, Electrohydraulic Multidisc Clutch) |
|
Hydraulics Type |
Open Centre, Triple Pump (Dynamic); Dual Pump (Active) |
|
Hydraulic Pump |
62 l/min + 32 l/min (Active); 82 l/min + 32 l/min (Dynamic) |
|
Max Valves (Rear) |
2 to 3 (Mechanical, Active); Up to 3 Mechanical + 1 Electrical (Dynamic, Double-Acting, Kick-Out, Float, Hydraulic Motor) |
|
Max Valves (Mid-Mount) |
2 (Mechanical, 80 l/min) |
|
Max Lift Capacity (Rear) |
4500 kg |
|
Max Lift Capacity (Front) |
2200 kg (Optional) |
|
Wheelbase |
2355 mm |
|
Steering Radius |
5300 mm |
|
Overall Width |
1958-2458 mm (with 380/70R24-480/70R34 Tyres) |
|
Overall Height |
2623 mm (Cab without Beacon); 1873 mm (Cab Roof to Rear Axle) |
|
Overall Length |
4460 mm (with Front Weights) |
|
Total Weight |
4000 kg; 7000 kg (Gross Vehicle Weight) |
|
Fuel Tank Capacity |
135 L |
|
DEF Capacity |
13 L |
|
Emissions Compliance |
Stage V / Tier 4 Final (DOC + SCRoF) |
