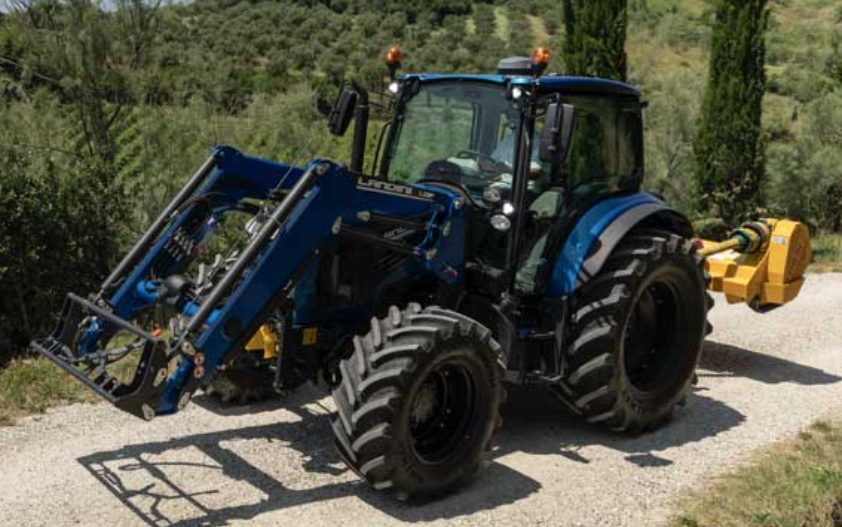

Landini Serie 5-085 – Utility Tractor for Soil Preparation and Vegetable Crops
Specifications
|
Specification |
Details |
|
Tractor Model |
Serie 5-085 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Soil Preparation, Sowing, Haymaking, Livestock Tasks, Transport, Vegetable Crops (HC) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
75 HP (56 kW) Rated and Max at 1400-2200 RPM |
|
Engine Type |
FPT F34 (4-cylinder, Turbo Aftercooled, 8 valves) |
|
Engine Capacity |
3400 cm³ |
|
Engine Speed at Rated Power |
2200 RPM |
|
Transmission Type |
Speed Four (12F/12R, 1.61 km/h min); Power Four (24F/24R with Hi-Lo, 1.35 km/h min); RoboShift (36F/12R with HML, 1.46 km/h min); Creeper (0.30-0.36 km/h min) |
Suspension & Brakes
|
Specification |
Details |
|
Cab/Platform Suspension |
Silent Blocks (Standard); Mechanical Suspension (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
9.5R48 (HC) |
|
Standard Tyres Rear |
9.5R48 (HC) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD (Electro-Hydraulic Engagement) |
|
Rear PTO |
540/540E (1944/2261 RPM); Optional: 540/1000, 540/540E/1000/1000E, Ground Speed PTO |
|
Front PTO |
1000 RPM (Optional, Electrohydraulic Multidisc Clutch) |
|
Hydraulics Type |
Open Centre, Dual Pump |
|
Hydraulic Pump |
56 l/min (Hitch & Remotes) + 30 l/min (Steering) |
|
Max Valves (Rear) |
1 to 3 (Mechanical, Double-Acting, Kick-Out, Float, Hydraulic Motor) |
|
Max Valves (Mid-Mount) |
2 (Mechanical, 80 l/min) |
|
Max Lift Capacity (Rear) |
3900 kg |
|
Max Lift Capacity (Front) |
1700 kg (Optional) |
|
Wheelbase |
2355 mm |
|
Steering Radius |
4700 mm |
|
Overall Width |
1782-2542 mm (HC, with 9.5R48 Tyres) |
|
Overall Height |
2870 mm (HC, Cab without Beacon); 2070 mm (HC, Cab Roof to Rear Axle) |
|
Overall Length |
4400 mm (HC, with Front Weights) |
|
Total Weight |
4300 kg (HC); 6000 kg (HC, Gross Vehicle Weight) |
|
Fuel Tank Capacity |
103 L |
|
Emissions Compliance |
Stage V / Tier 4 Final (DOC + DPF) |
