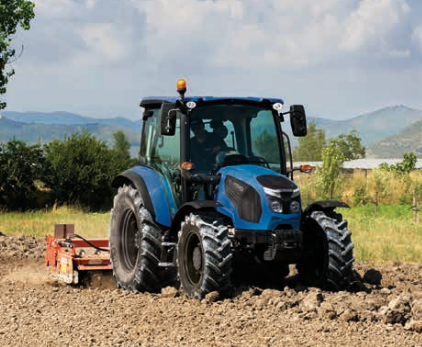

Landini Serie 4-080 – Light-Utility Tractor for Vineyards and Orchards
Specifications
|
Specification |
Details |
|
Tractor Model |
Serie 4-080 |
|
Vehicle Category |
Light-Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Wide-Row Vineyards, Orchards, Ploughing, Tilling, Harrowing, Sowing, Haymaking, Loader Operation, Stable Work, Sloping Terrain |

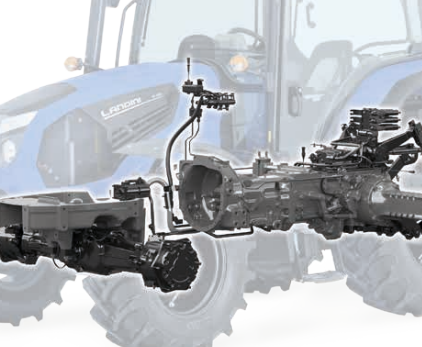

Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
75 HP (55 kW) Rated and Max at 1400 RPM |
|
Engine Type |
Kohler KDI 2504 TCR (4-cylinder, Turbo Intercooled, 16 valves) |
|
Engine Capacity |
2500 cm³ |
|
Engine Speed at Rated Power |
2200 RPM |
|
Transmission Type |
Speed Four (24F/24R with Mechanical Hi-Lo, 0.43 km/h min); Power Four (12F/12R with Reverse Power Shuttle, 0.50 km/h min) |
Suspension & Brakes
|
Specification |
Details |
|
Cab/Platform Suspension |
Silent Blocks (Cab); Iso-Mounted (Platform) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
320/70R20 |
|
Standard Tyres Rear |
420/70R28 |
Components & Features
|
Specification |
Details |
|
Drive |
4WD (Electro-Hydraulic Engagement) |
|
Rear PTO |
540/540E (1937/1648 RPM), Ground Speed PTO |
|
Front PTO |
Available (Aftermarket) |
|
Hydraulics Type |
Open Centre, Dual Pump |
|
Hydraulic Pump |
52 l/min (Hitch & Remotes) + 30 l/min (Steering) |
|
Max Valves (Rear) |
2 or 3 (Mechanical, Double-Acting, Kick-Out, Float, Hydraulic Motor) |
|
Max Valves (Mid-Mount) |
2 (Mechanical) |
|
Max Lift Capacity (Rear) |
3000 kg |
|
Max Lift Capacity (Front) |
1650 kg (Optional) |
|
Wheelbase |
2110 mm |
|
Steering Radius |
8850 mm |
|
Overall Width |
1824-2335 mm |
|
Overall Height |
2433 mm (Cab without Beacon); 1783 mm (Cab Roof to Rear Axle) |
|
Overall Length |
4073 mm (With Front Weights) |
|
Total Weight |
3200 kg (Cab); 3050 kg (Platform); 5100 kg (Gross Vehicle Weight) |
|
Fuel Tank Capacity |
85 L |
|
Emissions Compliance |
Stage V / Tier 4 Final (DOC + DPF) |
