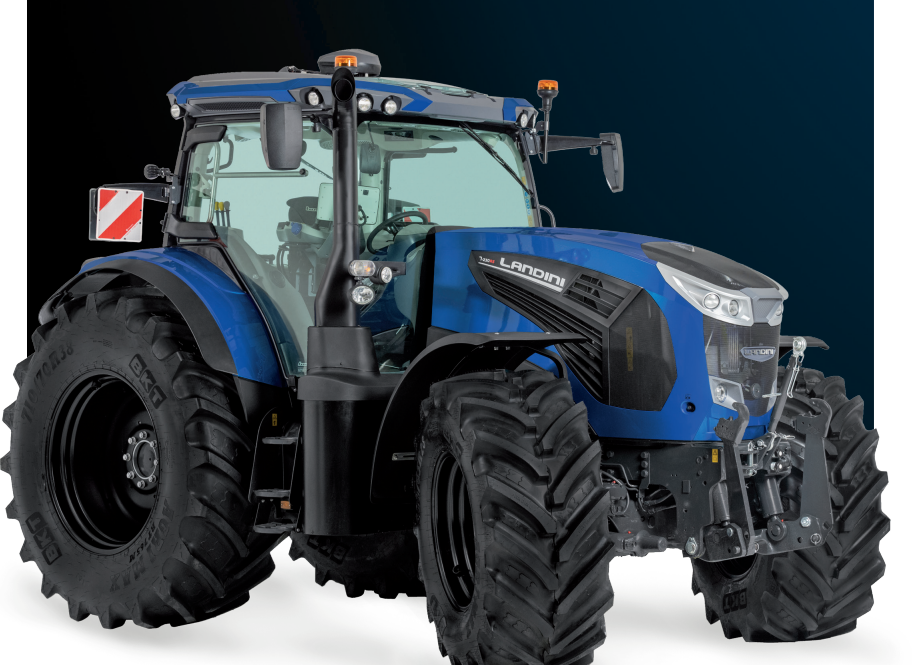

Landini Serie 7 7-160 Robo-Six – Advanced Agricultural Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Serie 7 7-160 Robo-Six |
|
Vehicle Category |
Advanced Agricultural Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Agricultural Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 cylinders, 6.7 L, FPT NEF 67, Iso-Mounted on Cast Iron Chassis |
|
Maximum Horsepower |
151 HP (111 kW), 166 HP (122 kW) with Dual Power @ 1900 RPM |
|
Maximum Torque |
632 Nm, 676 Nm with Dual Power @ 1400 RPM |
|
Transmission Type |
Robo-Six, 6 Powershift Speeds, 5 Robotised Ranges, 54 FWD + 27 REV with Creeper |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Independent Front Wheel Suspension System (IFS, Optional) |
|
Cab Suspension |
Mechanical Cab Suspension (Optional), Electronically-Controlled Electrohydraulic Semi-Active Cab Suspension (Optional) |
Wheels & Tyres
|
Specification |
Details |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
320 L (84.5 gal) |
|
Engine Brake |
Standard |
|
PTO Type |
Rear: 540/540E/1000/1000E RPM, Front: Electrohydraulic Multidisc Clutch with Modulated Engagement, 1000 RPM (Optional) |
|
Hydraulic System |
CCLS Closed Center Load Sensing, 123 L/min (Standard), 160 L/min (DYNAMIC, Optional), 2-3 Mechanical + 1 Electrohydraulic Valves, 80 L/min (ACTIVE), 3-6 Electrohydraulic Valves, 100 L/min (DYNAMIC), Flow Divider with 3 Sections, 60 L/min per Section (ACTIVE) |
|
Rear 3-Point Hitch |
Category III, Electronically-Controlled with Lower Link Draft Control, Position Control, Mixed Control, Float Position, 6400 kg (Standard), 9300 kg (ACTIVE/DYNAMIC, Optional) |
|
Front 3-Point Hitch |
Category III N, Electronically-Controlled with Position Control, 3500 kg (Optional) |
|
Wheelbase |
2820 mm |
|
Shipping Weight |
8000 kg (17637 lb) |
|
Gross Vehicle Weight |
13000 kg (28660 lb) |
|
Operator Platform |
Cab with Automatic Climate Control (DYNAMIC, Standard; ACTIVE, Optional), DSM Data Screen Manager with 12” Touchscreen Monitor (DYNAMIC, Optional), 12 Halogen Work Lights (ACTIVE, Standard), 18 Halogen or 20 LED Work Lights (DYNAMIC, Optional) |
|
Onboard Technology |
Front & Rear ISObus Connection (Optional), PSM Precision Steering Management & EazySteer (Optional), Landini Fleet Management Ready (Standard) |
