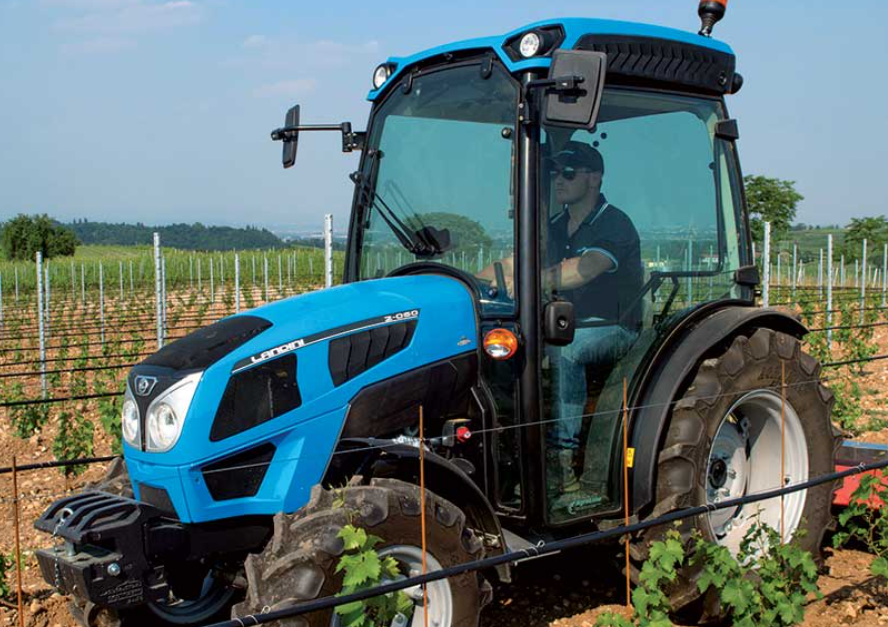

Landini Serie 2-050 STD/GE – Compact Specialty Tractor for Vineyards and Small Farms
Specifications
|
Specification |
Details |
|
Tractor Model |
Serie 2-050 STD/GE |
|
Vehicle Category |
Compact Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Small Farms |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2.2 L, Yanmar, Tier 3 |
|
Maximum Horsepower |
44 HP (32.3 kW) @ 1200 RPM |
|
Maximum Torque |
139.5 Nm @ 1200 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV with Synchro Shuttle |
Suspension & Brakes
|
Specification |
Details |
|
Platform/Cab Suspension |
ROPS Mounted on Silent Blocks (STD Version), 4-Post FOPS (STD Version, Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
320/70 R20 (IR 475 mm), 360/70 R24 (IR 550 mm) |
|
Standard Tyres Rear |
320/70 R20 (IR 475 mm), 360/70 R24 (IR 550 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3, No After-Treatment |
|
Fuel Tank Capacity |
40 L (10.6 gal) |
|
PTO Type |
540/540E RPM |
|
Hydraulic System |
28+20 L/min |
|
Rear 3-Point Hitch |
Category II, 1200 kg |
|
Front 3-Point Hitch |
Category 1N, 400 kg |
|
Wheelbase |
1760 mm (STD), 1746 mm (GE) |
|
Max Height |
2124-2199 mm (FOPS), 2205-2280 mm (Cab) |
|
Max Length |
3285-3090 mm (with Front Weights) |
|
Track Width |
1309-1617 mm (STD), 1387-1617 mm (GE) |
|
Shipping Weight |
1575 kg (3472 lb, Platform), 1735 kg (3825 lb, Cab) |
|
Gross Vehicle Weight |
3050 kg (6724 lb) |
|
Operator Platform |
ROPS (STD/GE, Standard), 4-Post FOPS with Heating, Ventilation, Manual Climate Control, Opening Front/Rear Windows (STD, Optional), Radio (STD Cab, Optional) |
|
Front Axle |
4WD with Hydralock, Without Brakes (Standard), Hydralock Full Differential Lock (Optional) |
