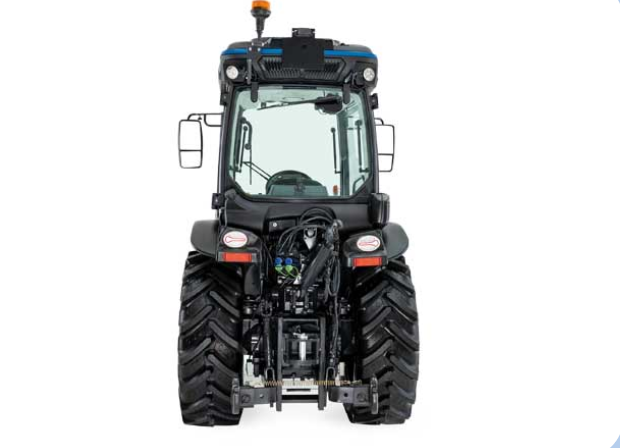

Landini REX4-110 F/S/V/GT – Specialty Tractor for Vineyards and Orchards
Specifications
|
Specification |
Details |
|
Tractor Model |
REX4-110 F/S/V/GT |
|
Vehicle Category |
Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards (F, V), Narrow Orchards (S), Wide Orchards (GT) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2.9 L, Deutz TCD 2.9 L4 HP, Turbo Aftercooled, EGR, DOC, DPF, SCR |
|
Maximum Horsepower |
102 HP (75 kW) @ 1800 RPM |
|
Rated Horsepower |
95 HP (70 kW) @ 2200 RPM |
|
Maximum Torque |
410 Nm @ 1600 RPM |
|
Torque Backup |
34.9% |
|
Transmission Type |
Speed Four (16+16), Power Four (32+32 Hi-Lo), Robo-Shift (48+16 HML) |
|
Minimum Speed |
300 m/h (F), 280 m/h (S-V), 340 m/h (GT) |
|
Maximum Forward Speed |
40 km/h (25 mi/h) at 1750 RPM (Hi-Lo/HML) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid or Suspended (F-S-GT), Hydralock (V), Limited Slip (F-S-GT Rigid), Hydralock (Rigid/Suspended) |
|
Brake Type |
Wet Multidisc, Rear Standard, Front with Hydralock (Optional) |
|
Parking Brake |
Mechanical |
|
Trailer Braking |
Hydraulic per MR & EEC or CUNA Regulations (Optional) |
|
Cab Suspension |
Hydro Silent Blocks (Standard), Mechanical on Dampers (F-GT, Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
F-S: 380/70R24, V: 360/70R20, GT: 420/70R24 |
|
Standard Tyres Rear |
F-S: 380/70R24, V: 360/70R20, GT: 420/70R24 |
|
1st Option for Front Tyres |
F-S: 420/70R28, V: 360/70R28, GT: 420/70R30 or 480/70R28 |
|
1st Option for Rear Tyres |
F-S: 420/70R28, V: 360/70R28, GT: 420/70R30 or 480/70R28 |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V / Tier 4 Final, EGR, DOC, DPF, SCR |
|
Fuel Tank Capacity |
80 L (F), 60 L (S-V), 85 L (GT) |
|
DEF Tank Capacity |
7.5 L |
|
PTO Type |
Servo-Assisted or Electro-Hydraulic Multidisc, 540/540E, 540/1000, 540/540E/1000/1000E, Ground Speed PTO |
|
Hydraulic System |
Open-Centre, Dual or Triple Pump |
|
Hydraulic Flow (Hitch & Remotes + Steering) |
58+30 L/min (Dual), 30+58+36 L/min (Triple, 88 L/min for Hitch/Remotes) |
|
Remote Valves |
2-3 Mechanical, 3 Mechanical + 1 Electro-Hydraulic, 4 Electro-Hydraulic, Mid-Mount (1 or 3 Electro-Hydraulic) |
|
Rear 3-Point Hitch |
Category 2, Fixed Ball Ends or Quick Hooks, Mechanical or Electronic, 2700 kg (Standard), 3400 kg (GT with Assistor Rams) |
|
Front 3-Point Hitch |
Category 1/2/2N, Quick Hooks, Electro-Hydraulic, 1700 kg (F-S-GT), 1400 kg (V) |
|
Front PTO |
Electro-Hydraulic Multidisc, 1000 RPM, 1-3/8” Shaft with 6 Splines (F-S-GT) |
|
Wheelbase |
2140 mm (F-S-GT), 2190 mm (V) |
|
Overall Width |
1330-1770 mm (F-S), 1000-1680 mm (V), 1500-1950 mm (GT) |
|
Shipping Weight |
2900-3250 kg |
|
Gross Vehicle Weight |
5250 kg |
|

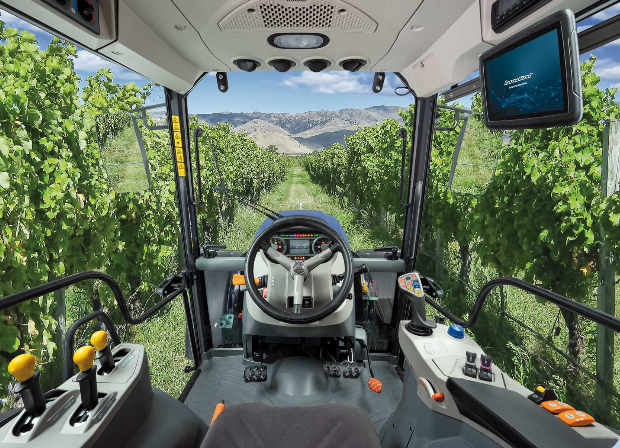

Operator Platform |
4-Post Monocoque Cab, Flat Floor, Manual A/C, 73 dBA Noise Level |
