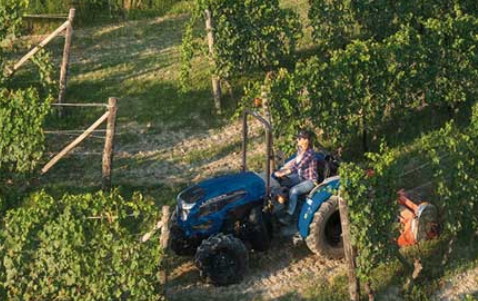

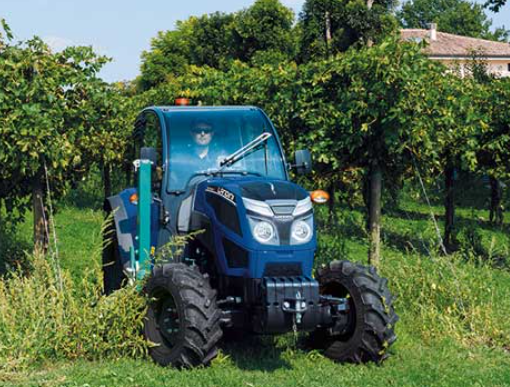

Landini REX3-080 F/GE – Specialty Tractor for Vineyards and Greenhouses
Specifications
|
Specification |
Details |
|
Tractor Model |
REX3-080 F/GE |
|
Vehicle Category |
Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Greenhouses, Tunnel Crops, Overhead Trellis Systems, Municipal Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2.5 L, Kohler KDI 2504 TCR, Turbo Aftercooled, EGR, DOC, DPF |
|
Maximum Horsepower |
75 HP (54.5 kW) @ 1900 RPM |
|
Rated Horsepower |
75 HP (54.5 kW) @ 2200 RPM |
|
Maximum Torque |
315 Nm @ 1500 RPM |
|
Torque Backup |
32% |
|
Transmission Type |
Speed Four, 12 FWD + 12 REV (16 FWD + 16 REV with Creeper) |
|
Maximum Forward Speed |
40 km/h (25 mi/h) |
|
Minimum Speed |
0.4 km/h with Creeper |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Hydralock Rigid, 4WD, 100% Electro-Hydraulic Differential Lock, 55° Steering Angle |
|
Rear Axle |
4WD, 100% Electro-Hydraulic Differential Lock |
|
Brake Type |
Wet Multi-Disc, Automatic 4WD Engagement While Braking |
|
Trailer Braking |
Hydraulic Trailer Braking (Optional) |
|
Hitch Suspension |
Hydraulic Damping System with ELS (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
Reinforced Waffle Rims (Optional) |
|
Standard Tyres Rear |
Reinforced Waffle Rims (Optional) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V / Tier 4 Final, EGR, DOC, DPF |
|
Fuel Tank Capacity |
50 L (13.2 gal) |
|
Clutch |
11” Independent Dry Dual Clutch, Mechanical Control |
|
PTO Type |
Mechanical, 540/540E/1000 RPM, Ground Speed PTO, 1-3/8” Shaft with 6 Splines |
|
Hydraulic System |
Dual Pump |
|
Hydraulic Flow (Rear Hitch) |
50 L/min (13.2 gal/min) |
|
Steering Pump Flow |
30 L/min (7.9 gal/min) |
|
Remote Valves |
1-3 Mechanical (2 Standard, 1 Float), Optional Mid-Mount with Double Outlets |
|
Rear 3-Point Hitch |
Category II, Quick-Couplers, 2200 kg (Standard), 2700 kg (Heavy-Duty with ELS) |
|
Front 3-Point Hitch |
Category IIN, Quick-Couplers, 1000 kg (Optional) |
|
Front PTO |
Mechanical, 1000 RPM, 1-3/8” Shaft with 6 Splines (Optional) |
|
Wheelbase |
1950 mm (76.8 in) |
|
Minimum Width |
1358 mm (53.5 in) |
|
Ground Clearance |
186 mm (7.3 in) |
|
Weight (Low-Profile Cab) |
2500 kg (5512 lb) |
|
Weight (ROPS) |
2200 kg (4850 lb) |
|
Operator Platform |
Low-Profile Cab (1875 mm height, GE) or Standard Cab (1100 mm width, F) or ROPS (2214 mm height), Air-Conditioned, Digital Instrument Panel |
