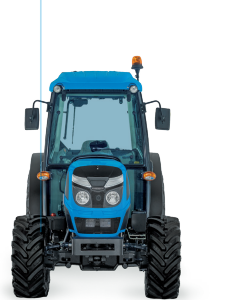

Landini REX 3-110 F/GE – Specialty Tractor for Vineyards and Orchards
Specifications
|
Specification |
Details |
|
Tractor Model |
REX 3-110 F/GE |
|
Vehicle Category |
Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Tunnel Crops, Municipal Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
102 HP (74.9 kW) Max at 1400 RPM |
|
Engine Type |
Perkins (4-cylinder, Turbo Aftercooled, 8 valves) |
|
Engine Capacity |
4400 cm³ |
|
Engine Speed at Rated Power |
2200 RPM |
|
Transmission Type |
Mechanical Synchro Shuttle (12F/12R std; 16F/16R or 32F/32R with Hi-Lo and Creeper, 0.35 km/h min F, 0.32 km/h min GE) |
Wheels & Tyres
|
Specification |
Details |
|
Max Rear Tyres |
380/85R28 (F, IR 650); 380/75R20 (GE, IR 525) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/540E (Mechanical); Optional: 540/1000, Ground Speed PTO |
|
Hydraulics Type |
Open Centre |
|
Hydraulic Pump |
52 l/min (Std) or 60 l/min (Opt) for Hitch & Remotes; 30 l/min for Steering |
|
Max Valves (Rear) |
1-3 (Mechanical) |
|
Max Lift Capacity (Rear) |
2700 kg |
|
Wheelbase |
2124 mm |
|
Overall Width |
1380 mm (Min) |
|
Overall Height |
2365 mm (F, ROPS); 2422 mm (F, CAB); 2240 mm (GE, ROPS); 1256 mm (Min to Steering Wheel) |
|
Total Weight |
2800 kg (ROPS); 3000 kg (CAB); 5250 kg (Gross) |
|
Fuel Tank Capacity |
61 L |
|
Emissions Compliance |
Tier 3 (No After-Treatment) |
