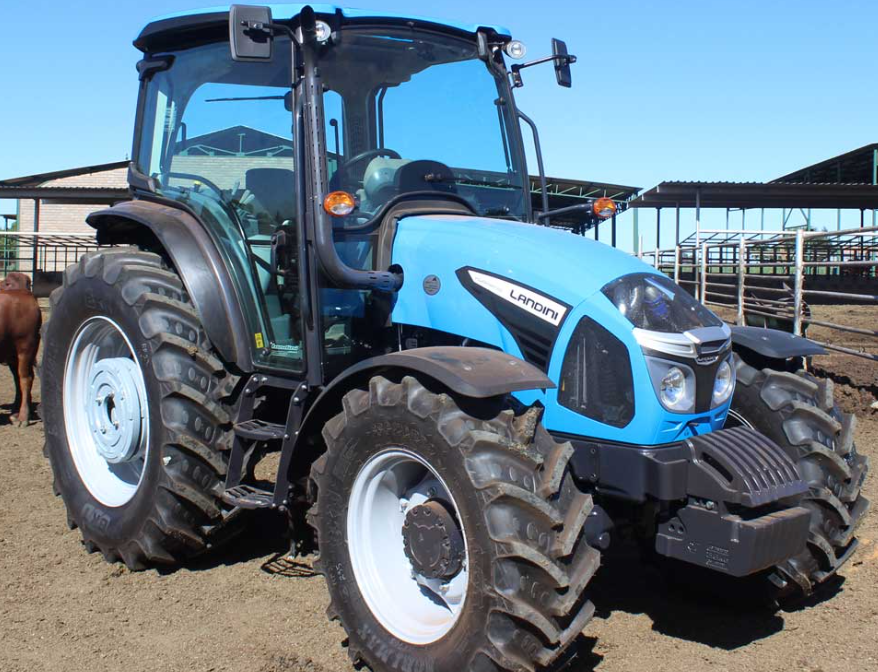

Landini Powerfarm II 110 – Utility Tractor for General Agricultural Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Powerfarm II 110 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Agricultural Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.4 L, Perkins, Turbo Aftercooled, Tier 3A |
|
Maximum Horsepower |
101.9 HP (74.9 kW) @ 1400 RPM |
|
Maximum Torque |
416 Nm @ 1400 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV with Synchro Shuttle (Standard), Electrohydraulic, 12 FWD + 12 REV with RPS, Modulation Control (Optional), 36 FWD + 12 REV with T-Tronic HML & RPS (Optional) |
|
Minimum Speed |
1.61 km/h with RPS, 1.33 km/h with HML (IR 750 mm) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid, 4WD with Hydralock 100% Differential Lock |
|
Rear Axle |
Electrohydraulic Differential Lock |
|
Braking System |
Ring Piston Hydraulic Brakes (Rear), Automatic 4WD Engagement When Braking (Standard), Front Brakes (Optional), Trailer Braking System EEC Export Version |
|
Cab Suspension |
Total View Slim Cab Mounted on Silent Blocks |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres Front |
320/70R24 (IR 750 mm) |
|
Standard Tyres Rear |
480/70R34 (IR 750 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3A, No After-Treatment |
|
Fuel Tank Capacity |
120 L (31.7 gal) |
|
Fuel Filtration System |
Fuel Filter with Pre-Filter for Tropical Climate (Standard), Fuel Filter with Pre-Filter with Water Separator for Tropical Climate (Optional) |
|
Air Filter |
Power Core |
|
Clutch |
Mechanical (Standard), Electrohydraulic (Optional) |
|
PTO Type |
Mechanical (Standard), Electrohydraulic (Optional), 540/540E RPM (Standard), 540/1000 RPM (Optional) |
|
Hydraulic System |
52 or 60 + 30 L/min, 2 to 3 Mechanical Remote Valves, Free-Flow Return |
|
Rear 3-Point Hitch |
Category II, Mechanical Control (Standard), Electronic Control (Optional), 4500 kg with Twin Assistor Rams, Fixed Ball Ends (Optional), Quick-Hitch Hooks (Optional), Ergonomic Lift System (Optional) |
|
Wheelbase |
2294 mm |
|
Max Height |
2620 mm (with Tyres IR 750 mm) |
|
Shipping Weight |
3800 kg (8378 lb) |
|
Gross Vehicle Weight |
6500 kg (14330 lb) |
|
Operator Platform |
Total View Slim Cab with Heat and Ventilation (Standard), Manual Climate Control (Optional), In-Cab Noise Level 82 dB(A) |
