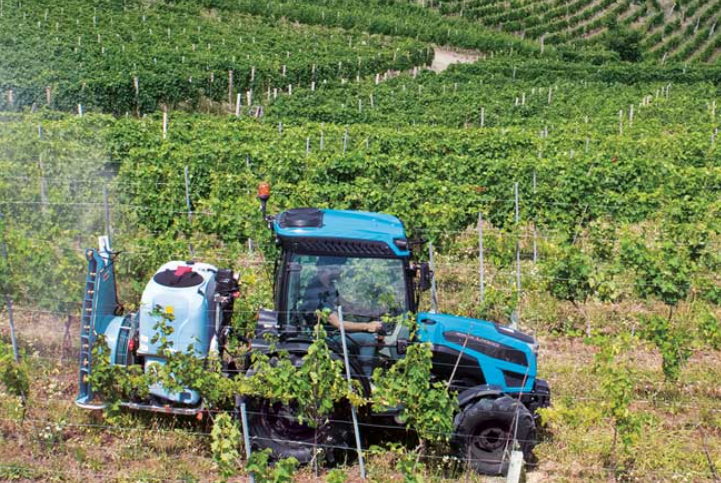

Landini Mistral2-060 GE – Specialty Tractor for Greenhouses and Low Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Mistral2-060 GE |
|
Vehicle Category |
Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vegetable Growing Under Glass, Low Vineyards, Orchards, Overhead Trellis Systems, Municipal Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, 1.9 L, Kohler KDI 1903 TCR, Turbo Aftercooled, EGR, DOC, DPF |
|
Maximum Horsepower |
57 HP (42 kW) @ 2600 RPM |
|
Maximum Torque |
200 Nm @ 1200 RPM |
|
Torque Backup |
37% |
|
Transmission Type |
Mechanical, 12+12 (16+16 with Creeper) |
|
Minimum Speed |
770 m/h (220 m/h with Creeper) |
|
Maximum Forward Speed |
30 km/h (18.6 mi/h) @ 2600 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid 4WD, Hydralock Differential Lock, 55° Steering Angle |
|
Rear Axle |
4WD, Electro-Hydraulic Differential Lock |
|
Brake Type |
Mechanical Wet Multi-Disc, Rear |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
320/70R20 (IR 475 mm) |
|
Standard Tyres Rear |
320/70R20 (IR 475 mm) |
|
1st Option for Front Tyres |
360/70R24 (IR 550 mm) |
|
1st Option for Rear Tyres |
360/70R24 (IR 550 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V, EGR, DOC, DPF |
|
Fuel Tank Capacity |
40 L (10.6 gal) |
|
Clutch |
Mechanical Dry Clutch |
|
PTO Type |
Mechanical Dry Clutch, 540/540E RPM, Ground Speed PTO |
|
Hydraulic System |
Open-Center, Twin Pump |
|
Hydraulic Flow (Hitch & Remotes) |
35 L/min (9.2 gal/min) |
|
Steering Pump Flow |
20 L/min (5.3 gal/min) |
|
Remote Valves |
2 Standard, Optional 2 Standard + 1 with Float |
|
Rear 3-Point Hitch |
Category 1 with Fixed Ball Ends, Optional Category 2 with Quick-Hitch Hooks, 1200 kg |
|
Front 3-Point Hitch |
Mechanical Category 1N, Quick Couplers, 400 kg (Optional) |
|
Front PTO |
Mechanical, 1000 RPM (Optional) |
|
Wheelbase |
1770 mm (69.7 in) |
|
Overall Width |
1260-1615 mm (49.6-63.6 in) |
|
Height (ROPS) |
2030-2105 mm (79.9-82.9 in) |
|
Height (Bonnet) |
1131-1206 mm (44.5-47.5 in) |
|
Shipping Weight (ROPS) |
1580 kg (3483 lb) |
|
Gross Vehicle Weight |
3050 kg (6724 lb) |
|
Operator Platform |
Foldable ROPS |
